AC220V 6KW DOD Smart Card Personalization Machine With Dual Side Printing

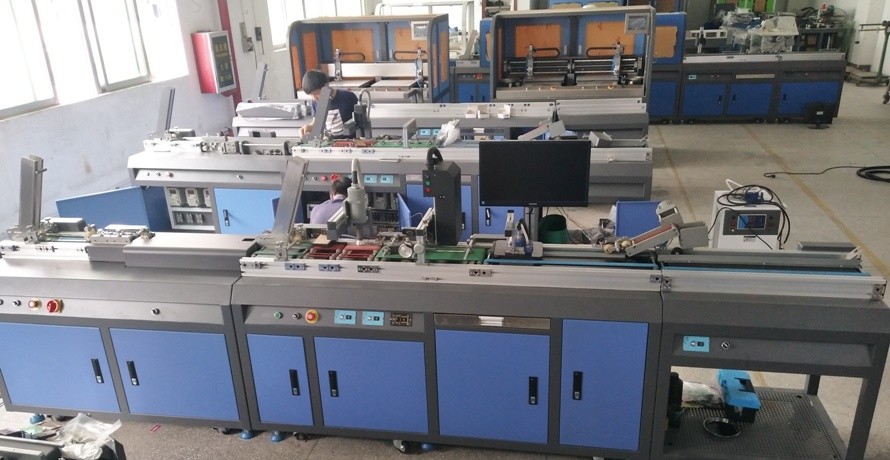

The YEDU-2A Card DOD Personalization Machine is a high-performance solution for smart card personalization, featuring two-side printing in a single pass. This industrial-grade machine combines multiple functions including high-quality DOD inkjet printing (KONICA 36mm print head), RFID chip encoding, magnetic stripe encoding, and optional modules for comprehensive card processing.

The YEDU-2A features a complete processing line with modular design:

• Card feeder (CR80 size)
• RFID card encoder (HF/LF)
• Plasma treatment unit
• DOD black ink printing unit (36mm wide KONICA)
• LED UV solidification unit
• Card turn-over unit
• Plasma treatment unit
• DOD white ink printing unit (36mm wide KONICA)
• LED UV solidification unit
• Bad card rejection unit
• Good card collection unit

• RFID Chip Encoding Unit: Supports reading/writing for various RFID chips including Mifare S50, S70, Ultralight, and more. Speed: 7000 cards/h (reading) or 2000-4000 cards/h (writing).
• Magnetic Stripe Encoder: Encodes three tracks or any single/two tracks (excluding financial bank cards). Speed: 7000-8000 cards/hour.

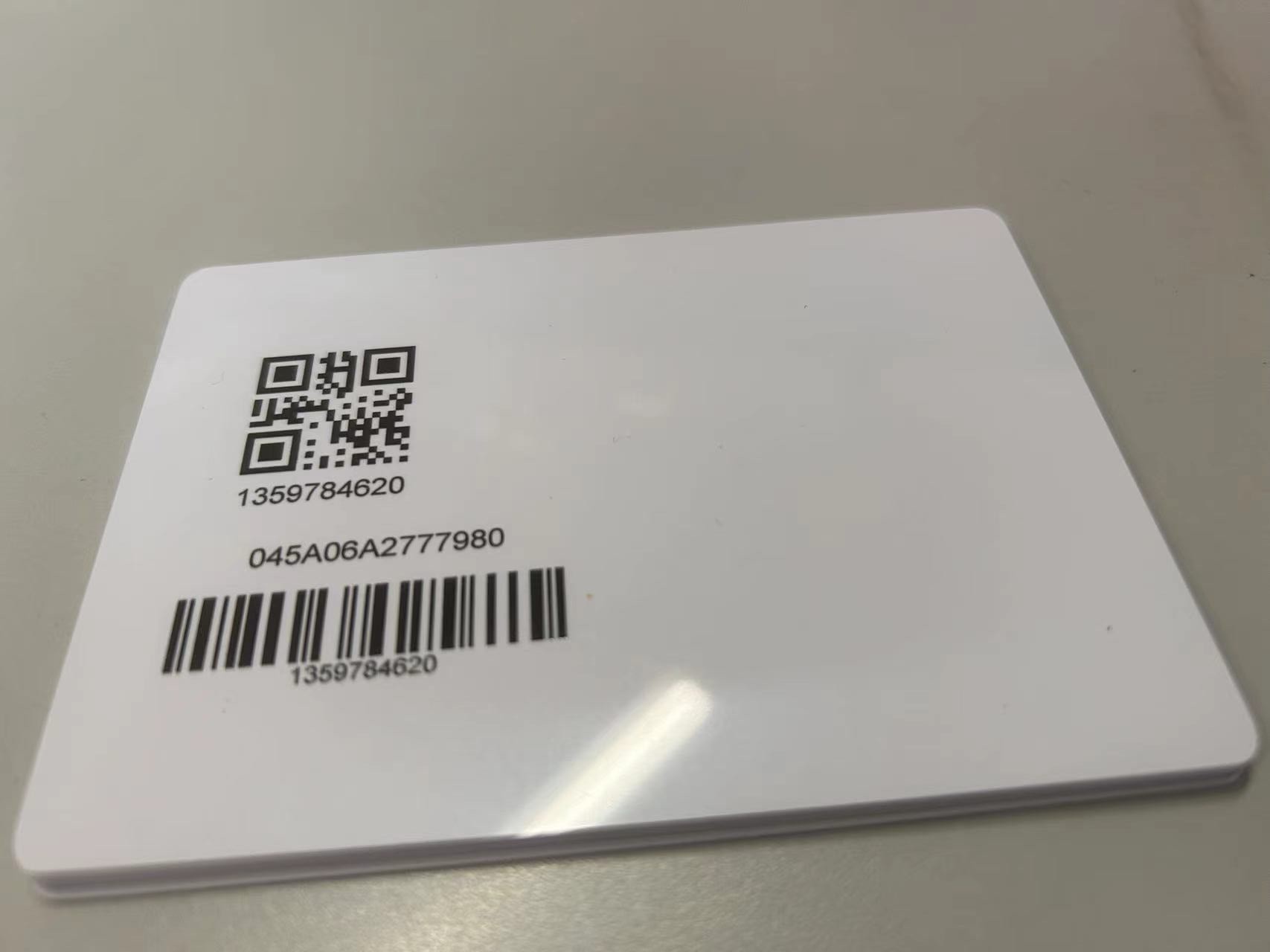

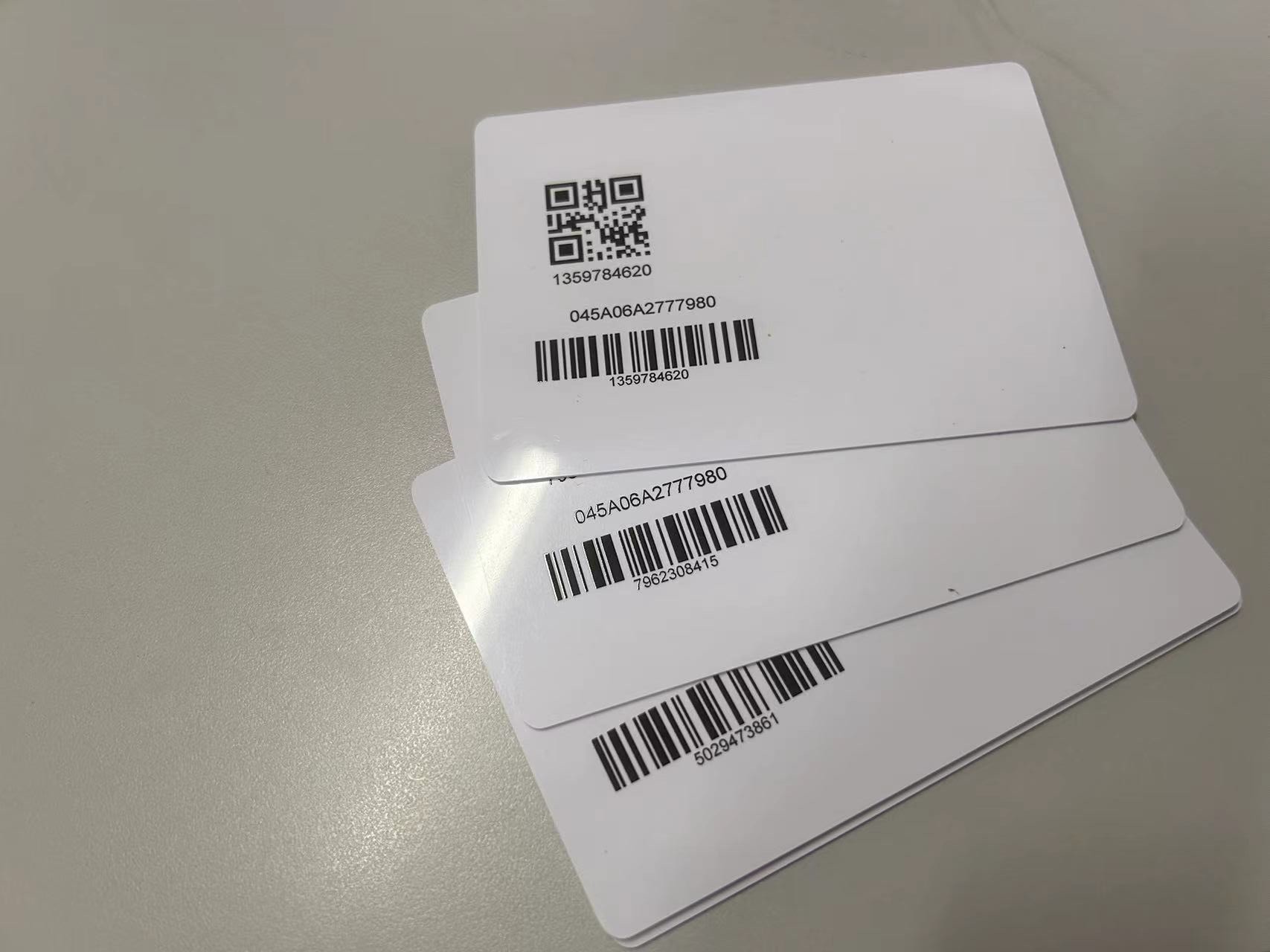

• OCR Inspection Unit: Verifies printed numbers, barcodes, and QR codes against database. Speed: 7000-8000 cards/hour.
• Scratch Labeling Unit: Applies multiple scratch-off labels simultaneously. Speed: 7000-8000 cards/hour.
• Laser Engraving Unit: Available in CO2, optical fiber, or ultraviolet types for precise marking.

The YEDU-2A is ideal for high-volume smart card personalization with its two-side printing capability in a single pass. The 36mm print width is suitable for partial card printing, while the YEDU-2B model (72mm print width) is available for full-width card printing requirements.
