6KW Smart Card Personalization Machine Automatic With 36mm Konica Print Head

The YEDU-1A Card DOD Personalization Machine is designed for high-quality personalization of various smart cards including loyalty cards, magnetic cards, RFID cards, and dual-interface cards. It features precise DOD (drop-on-demand) inkjet printing with optional RFID chip encoding, magnetic stripe encoding, scratch card labeling, and laser engraving capabilities.

The YEDU series includes four models:

• YEDU-1A: Single-side printing with 36mm wide printer
• YEDU-1B: Single-side printing with 72mm wide printer (full-width printing)
• YEDU-2A: Dual-side printing with 36mm wide printer
• YEDU-2B: Dual-side printing with 72mm wide printer (full-width printing)

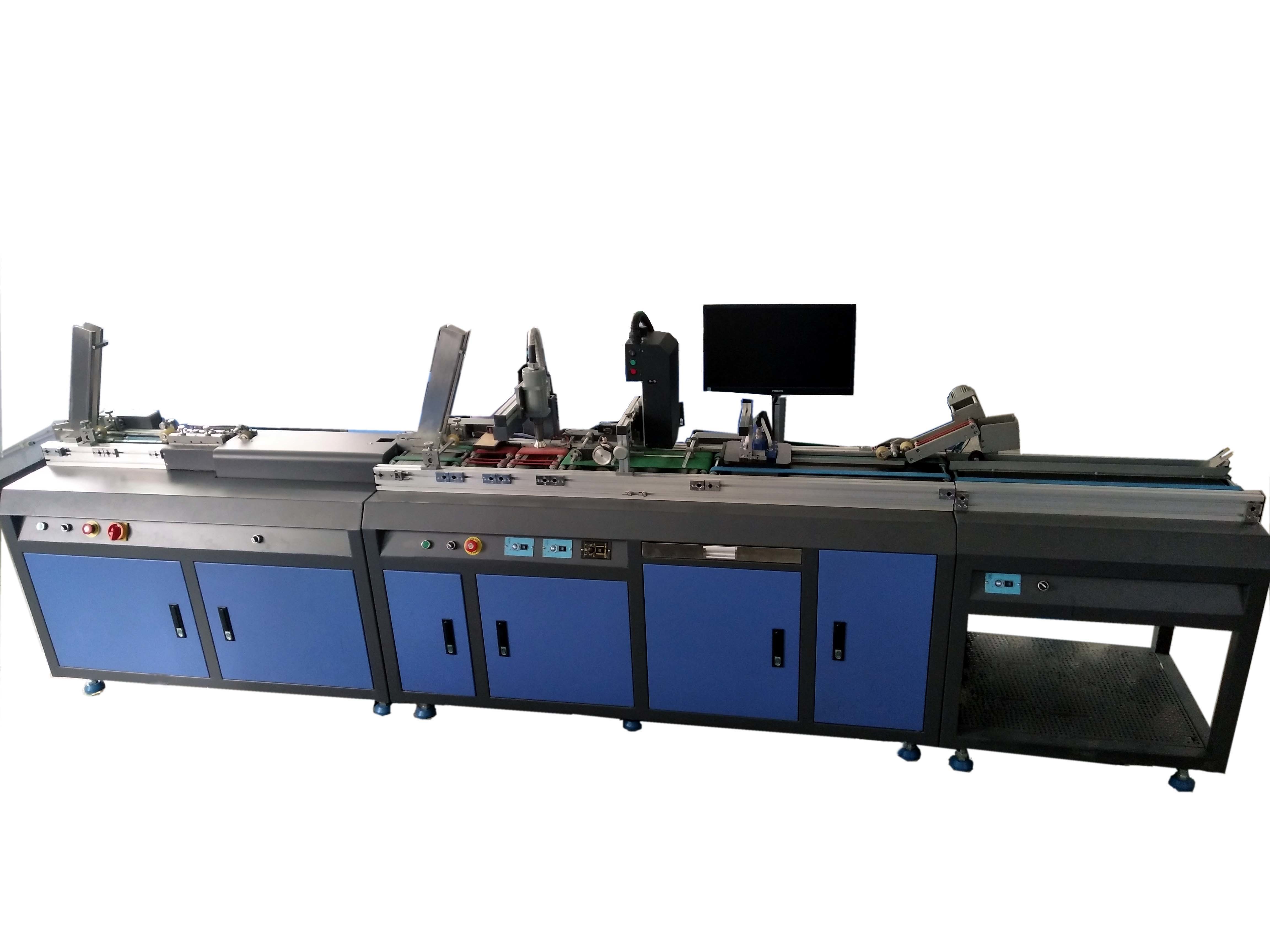

The production line includes:

• Card feeder (CR80 size)
• RFID card encoder (HF/LF)
• Plasma treatment unit

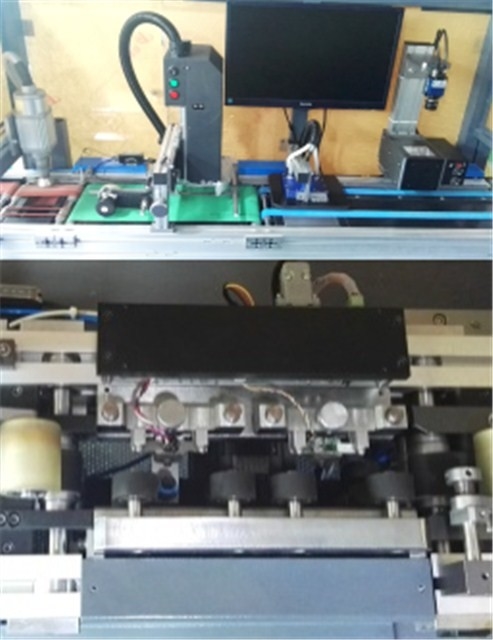

• DOD Black/White printing unit (36mm Konica)
• LED UV solidification unit
• Bad card rejection unit
• Good card collection unit

• RFID Chip Encoding Unit: Reads/writes data for various RFID chips (7000 cards/h reading, 2000-4000 cards/h writing)
• Magnetic Stripe Encoder: Encodes three tracks (7000-8000 cards/h)
• OCR Inspection Unit: Verifies printed data (7000-8000 cards/h)
• Scratch Labeling Unit: Applies multiple labels simultaneously (7000-8000 cards/h)
• Laser Engraving Unit: CO2, optical fiber, or UV options for precise marking

• Print head: Konica 36mm black/white ink
• Printing resolution: 360-720 DPI adjustable
• Max speed: 25 meters/min (8000-10000 cards/h print-only)
• Optimal quality speed: 20 meters/min
• LED UV: 395NM, 400W
• Net weight: 500-950kg (configuration dependent)

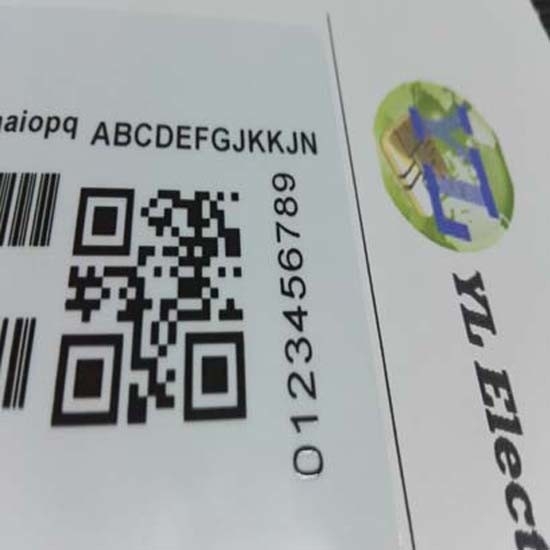

The YEDU-1A with 36mm print head is ideal for partial-width printing of barcodes, numbers, QR codes, and photos. For full-width printing, consider YEDU-1B (72mm print head). For dual-side printing in one pass, YEDU-2A or YEDU-2B models are recommended.
