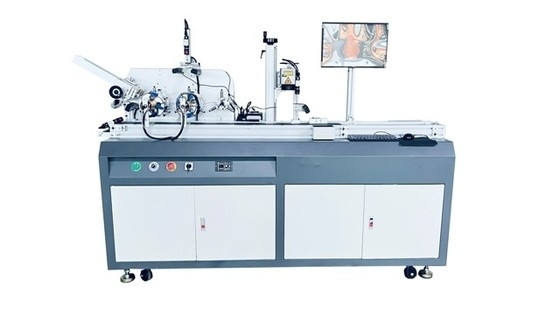

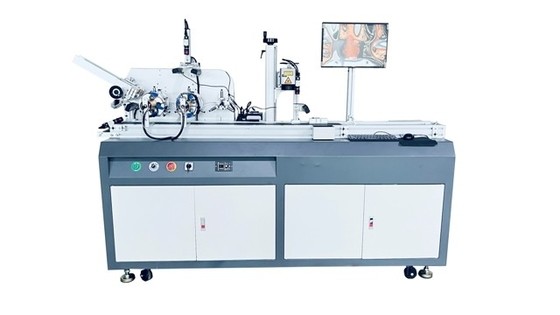

Mini RFID Card Laser Engraving Machine For Non Standard Cards 4000CPH

The Mini RFID Card Laser Marking & Data Encoding Machine YMC-LDP-1 features a smart and reliable card feeding and monitoring system that accurately processes mini special shape cards, including small circular RFID cards and rectangular smart cards.

This versatile machine is also known as: Small Circular RFID Card Laser Marker & Data Encoder, Mini Special Shape Card Personalization Line, or Mini Glue-dropping Card Chip Date Writer and Laser Engraver.

• Precisely recognizes card surface and positions marking area for laser processing
• Processing speed up to 3000 cards per hour
• Ideal solution for mini special shape card personalization
• Industrial computer control system

• Dimensions: L2100mm × W1100mm × H1650mm (400Kg)
• Power supply: AC220V 50/60 Hz 1.5Kw
• Compressed air: ≤6.5 Kg/CM²
• Control: Industrial computer
• Material specifications: Non-standard cards (20×20mm to 20×65mm), circular diameter 20-60mm
• Working speed: 4000 cards/hour (laser speed varies with data size)
• Operator requirement: 1 person

The YMC-LDP-1 includes:

• Horizontal adjustable card feeder
• OCR inspection units
• Card sucking and rotation systems
• RFID HF/LF Card Encoder (Block data writing/UID reading/Key change)
• Laser engraving unit (CO2 type, optic fiber type, or others)

Compatible with non-standard cards from 20×20mm to 20×65mm and circular cards up to 60mm diameter.
