Name: Automatic 2FF Mini SIM Card Packing Machine 7000pcs/hour
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YUP-MC-8000
Availability: InStock

Detail Information

Applicable Cards:	1. Standard 2FF Small Card (15X25mm) 2. The Punched Seamless Double-chip, Four- Hip, Six- Chip, And Nine-chip Standard Cards	Packaging Film Specifications:	BOPP Packaging Film With Width Of 60 Mm, Inner Diameter Of 3 Inches And Outer Diameter Of Less Than 450 Mm After Being Folded In Half
Productivity:	About 7000~8000pcs/hour	Automatic Folding Number:	10~25 Small Cards Per Stack
Packaging Film Thickness:	0.025mm~0.035 Mm	Packaging Film Material:	BOPP Etc
Highlight:	Automatic SIM Card Packing Machine , 2FF SIM Card Packing Machine , Mini SIM Card Packing Machine

Product Description

Automatic 2FF Mini SIM Card 15X25mm Packer, SIM Card Packaging Machine

Product Attributes

Attribute	Value
Applicable cards	1. Standard 2FF small card (15X25mm) 2. The punched seamless double-chip, four-chip, six-chip, and nine-chip standard cards
Packaging film specifications	BOPP packaging film with width of 60 mm, inner diameter of 3 inches and outer diameter of less than 450 mm after being folded in half
Productivity	About 7000~8000pcs/hour
Automatic folding number	10~25 small cards per stack
Packaging film thickness	0.025mm~0.035 mm
Packaging film material	BOPP etc

Product Description

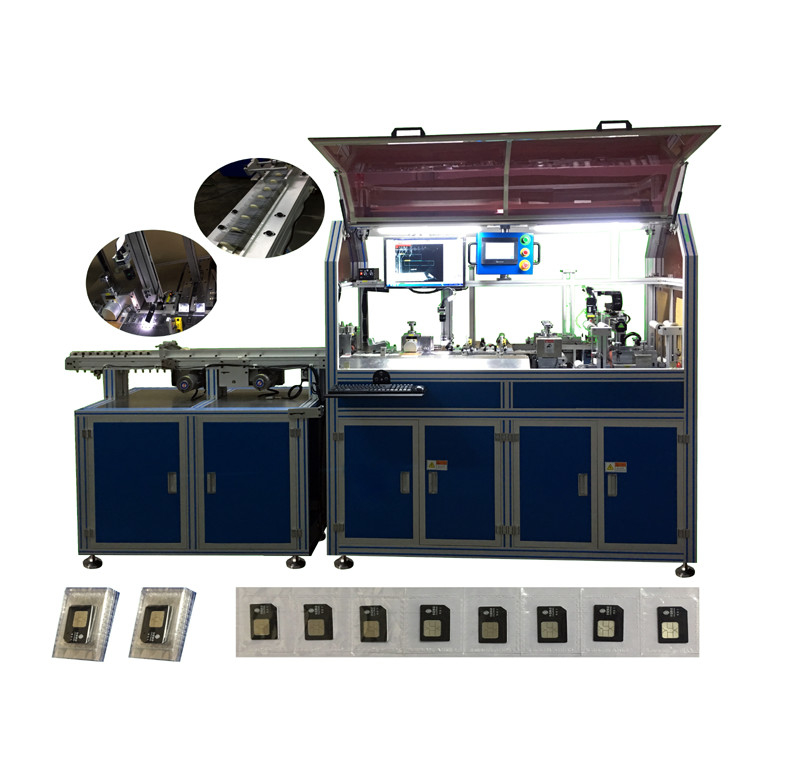

Automatic 2FF Mini SIM Card 15X25mm Packing Machine YUP-MC-8000

Mini SIM Card Packing Machine / Mini SIM Card Packaging Machine / Mini SIM Card Packer / Mini SIM Card Wrapping Machine / Mini SIM Card Wrapper YUP-MC-8000

Introduction

The machine is designed for packaging 2FF mini SIM Cards. It can also pack other mini SIM cards including the punched 2-chip card, 4-chip card, 6-chip card and 9-chip card.

Key Features

Integrates the functions of film delivery, card delivery, card tearing, and card collection
Packaging film is conveyed by special rubber wheel and film suction belt for stable and smooth operation
Automatic detection of repeated card, no card or no film with automatic shutdown when errors occur
Suitable for various packaging films with thickness more than 0.025mm
Continuous ultrasonic welding process produces clear and beautiful welded patterns
Chained card packaging function with adjustable number of cards per section
Personalized design structure for packaging bag edges
Professional card collection structure with automatic folding and single block storage
Optional CCD visual inspection system for detecting SIM card serial numbers or barcodes

Technical Specifications

Power supply	AC 220V/50 HZ
Control method	PLC program control + servo system
Total power	4KW
Operator number	One person
Air Source	6 kg/c㎡ (with no water)
Dimension	L2000×W700×H1800mm
Air consumption	About 50L/min
Weight	About 500Kg

Applications

This machine is controlled automatically by the PLC program, with a Chinese and English touch screen featuring a friendly man-machine interface. It uses continuous ultrasonic welding process with fast speed, low noise, clear welding pattern and low air consumption.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YUP-MC-8000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
