Detail Information

Input Power:

5.54 Kw

Power Supply:

3PH~380V/50HZ

Weight:

175kg

Dimension:

1140*560*1040 Mm

Highlight:

Industrial Chiller Machine Automatic

Industrial Chiller Machine 5HP

5.54KW Air Cooled Chiller

Product Description

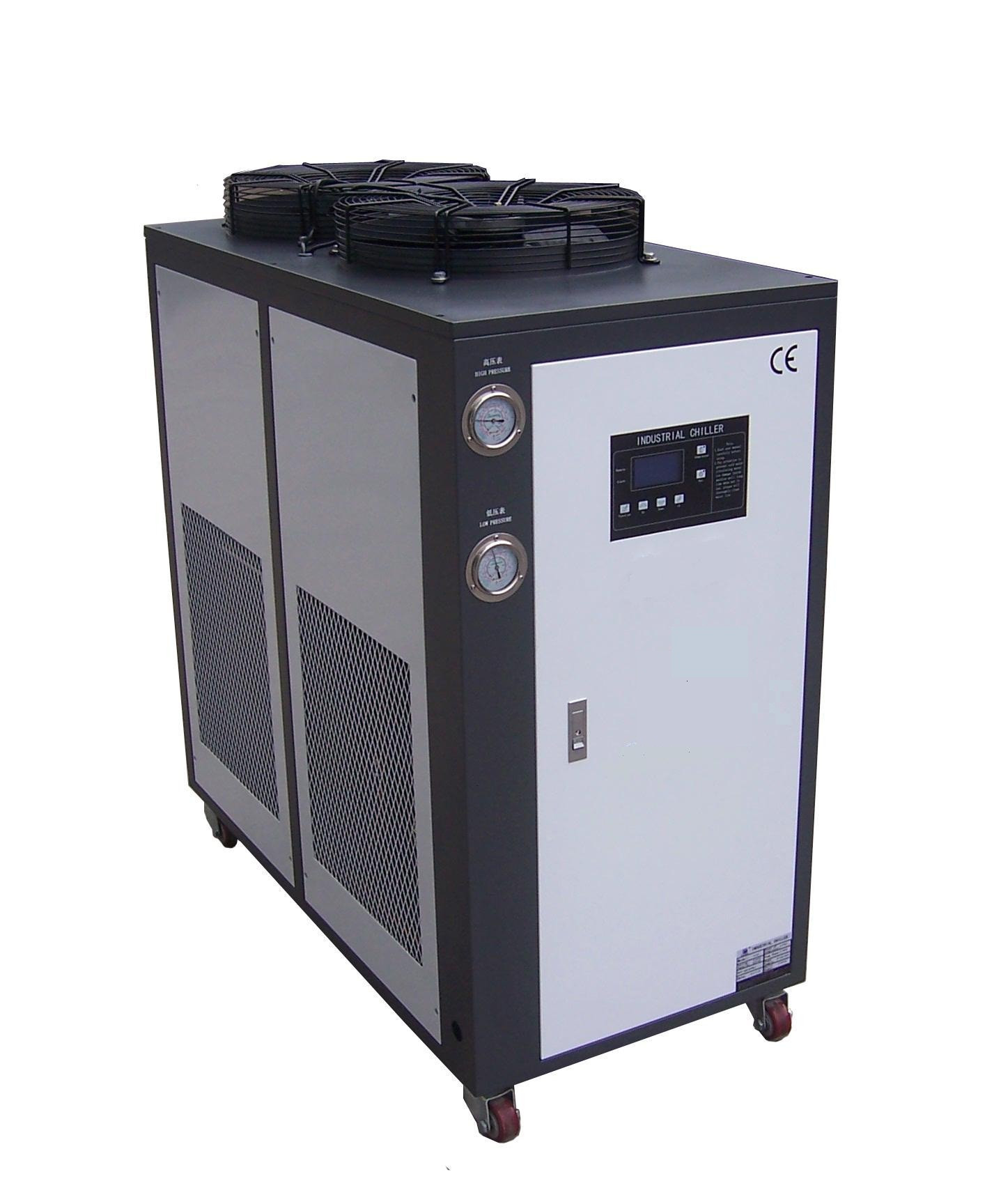

5.54 Kw Air Cooled Industrial Chiller Machine 5HP Automatic YWC-5

Product Specifications

Input power:

5.54 kw

Power supply:

3PH~380V/50HZ

Weight:

175kg

Dimension:

1140*560*1040 mm

Technical Parameters

Model Item	YWC-5HP
Nominal cooling capacity	11223 kcal/h (13.05 kw)
Input power	5.54 kw
Power supply	3PH~380V/50HZ
Refrigerant	Type: R22 Type of control: Capillary
Compressor	Type: Hermetic scroll Power: 4.41 kw
Condenser	Type: Finned copper tube + low noise outer rotor fan Cooling air flow: 5000 m3/h
Evaporator	Type: Tank with coil Chilled fluid flow: 2.24 m3/h Volume: 70 L Inlet/outlet pipe diameter: 1 inch
Pump	Power: 0.75 kw Lift: 20 m
Safety protection	Compressor thermal protection, over current, high and low pressure, phase sequence, phase-missing, exhaust overheating

Note:

1. Nominal cooling capacity is according to:
- Inlet chilled fluid temperature: 12℃
- Outlet chilled fluid temperature: 7℃
- Inlet cooling air temperature: 30℃
- Outlet cooling air temperature: 35℃

2. Working range:
- The temperature range of chilled fluid is from 5℃ to 35℃
- Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃
- It is better to use the chiller while the ambient temperature at or below 35℃

We reserve the right to modify the above dimensions or parameters without further notice.

Our Service

Pre-sale:

Professional suggestions (raw material matching, machine selection, factory conditions, feasibility analysis)
Device model choice (recommend the best machine according to requirements)
Efficient on-line service
Factory visits welcome with invitation letter available
Company and product introduction

Sale:

Production scheduling updates
Quality supervision
Product acceptance
Timely shipping

After-sale:

On-site engineer guidance for installation if needed
Setup, fixing, and operation support
Operator training until satisfaction
Lifetime technical support
Regular client follow-up and feedback collection

Guarantee

1-year guarantee period with efficient service response
On-site support within one year for unsolvable issues

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	5HP YWC-5

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	45-60days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set a month
