Name: 2 Chip 4 Chip Card Mini SIM Card Packing Machine PLC Control YUP-MC-8000 8000pcs/hour
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YUP-MC-8000
Availability: InStock

Detail Information

Power Supply:	AC 220V/50 HZ	Total Power:	4KW
Air Source:	6 Kg/c㎡(with No Water)	Air Consumption:	About 50L/min
Productivity:	About 7000~8000pcs/hour	Control Method:	PLC Program Control+servo System
Highlight:	2 Chip SIM Card Packing Machine , 4 Chip SIM Card Packing Machine , SIM Card Packing Machine PLC Control

Product Description

2 Chip Card 4 Chip Card 2FF Mini SIM Card Packing Machine CCD Inspection YUP-MC-8000

Product Specifications

Attribute	Value
Power supply	AC 220V/50 HZ
Total power	4KW
Air Source	6 kg/c㎡(with no water)
Air consumption	About 50L/min
Productivity	About 7000~8000pcs/hour
Control method	PLC program control+servo system

Product Overview

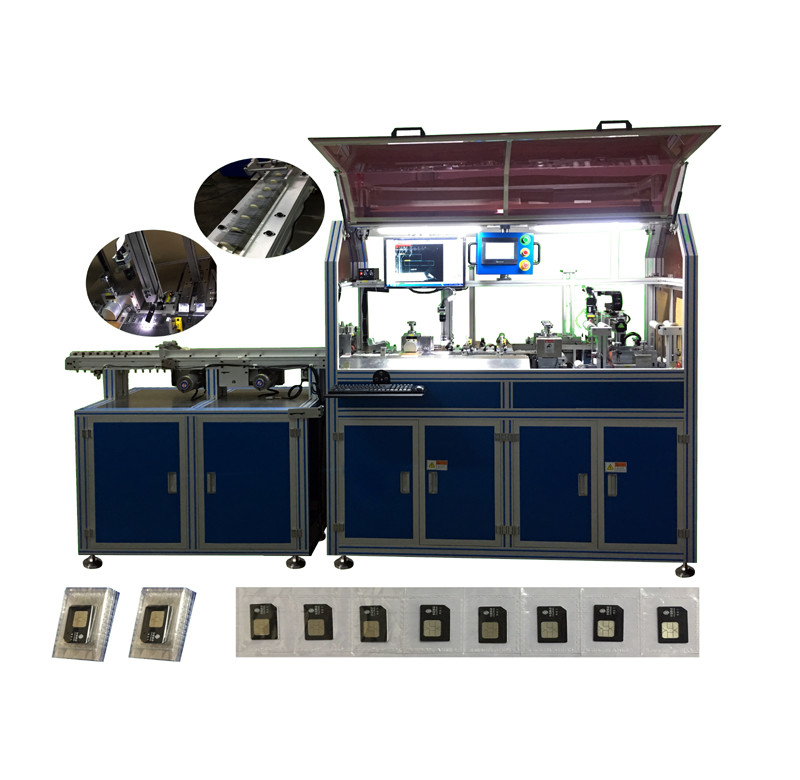

The YUP-MC-8000 is an advanced packaging machine designed specifically for 2FF mini SIM cards, with capability to handle various card types including punched 2-chip, 4-chip, 6-chip, and 9-chip cards. Featuring ultrasonic sealing technology, it delivers superior seal strength and aesthetic packaging for standard cards including prepaid cards, game cards, and IC cards.

Key Features

Integrated functions: film delivery, card feeding, card tearing, and collection
Stable film conveyance system using special rubber wheel and suction belt
Automatic detection of card errors with shutdown protection
Compatible with packaging films ≥0.025mm thickness
Continuous ultrasonic welding for clear, beautiful patterns
Chained card packaging with customizable section quantities
Professional card collection structure with automatic folding

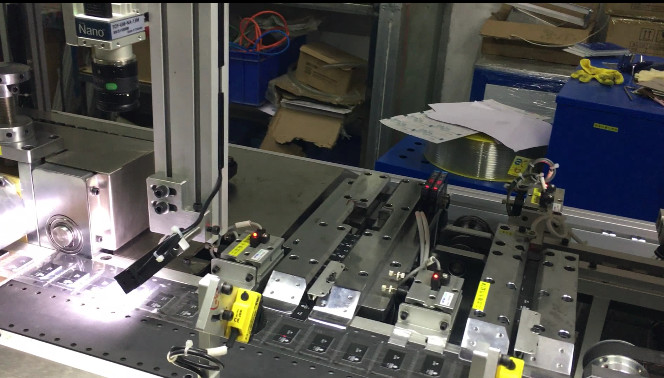

Optional CCD visual inspection for serial number/barcode reading

Technical Specifications

Power supply	AC 220V/50 HZ	Control method	PLC + servo system
Total power	4KW	Operator requirement	1 person
Air Source	6 kg/c㎡	Dimensions	2000×700×1800mm
Air consumption	~50L/min	Film material	BOPP etc.
Weight	~500Kg	Film thickness	0.025-0.035mm
Productivity	7000-8000pcs/hour	Folding capacity	10-25 cards/stack

Operation & Applications

The YUP-MC-8000 features PLC program control with a user-friendly Chinese/English touchscreen interface. Its continuous ultrasonic welding process offers high speed operation with low noise and air consumption, making it ideal for packaging:

Standard 2FF SIM cards (15×25mm)
Punched multi-chip standard cards
Prepaid cards, game cards, IC cards

Also known as: Mini SIM Card Packaging Machine, Mini SIM Card Packer, Mini SIM Card Wrapping Machine, or Mini SIM Card Wrapper YUP-MC-8000.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YUP-MC-8000

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	Around 30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
