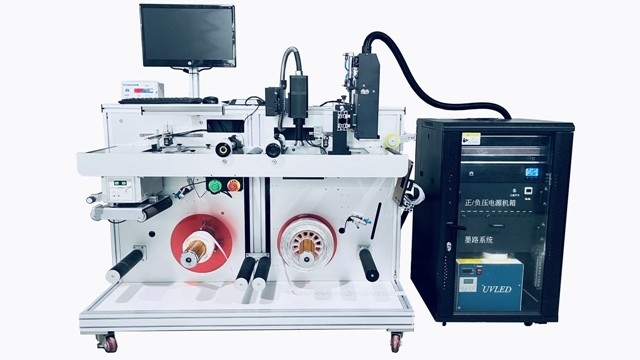

Name: Desktop Smart Card Making Machine RFID NFC Tag Data Writer and Printer YRFT-DOD-1
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YRFT-DP-1
Availability: InStock

Detail Information

Power Supply:	AC220V 50/60 Hz 1.5Kw	RFID Tag Width:	20-260mm.
Equipment Size:	L1500mmW1000mmH1600mm	Working Speed:	Around 7000 PPH.
Work Person:	1 People	Control Mode:	Mitsubishi PLC+ Computer (Note: The Computer Is Not Included In This Device Offer, And Normally The User Can User Their Own Computer To Connect And Work This Device.)
Highlight:	Desktop Smart Card Making Machine , NFC Smart Card Making Machine , NFC Tag Data Writer and Printer

Product Description

Economy Desktop RFID/NFC Tag Chip Data Writer And Drop-On-Demand Printer

Product Specifications

Attribute	Value
Power supply	AC220V 50/60 Hz 1.5Kw
RFID Tag width	20-260mm
Equipment size	L1500mmW1000mmH1600mm
Working speed	Approximately 7000 PPH
Work person	1 person
Control mode	Mitsubishi PLC + computer (computer not included)

Product Overview

The YRFT-DOD-1 is a high-quality desktop solution for RFID/NFC tag personalization, combining data writing and drop-on-demand printing functions in a single compact unit.

Key Features

High-speed inkjet printing with Japanese Ricoh G5 nozzle (600 DPI vertical, 1200 DPI horizontal)
Integrated plasma treatment unit and LED UV drier for optimal print quality
Adjustable tension control for various RFID tag/label sizes
Standard HF reader with optional UHF reader available
Custom operating software compatible with multiple chip manufacturers
Comprehensive data writing, encryption, and tracking functions

Technical Parameters

Dimensions: L1500mm × W1000mm × H1600mm
Gross weight: 360Kg
Power supply: AC220V 50/60 Hz 1.5Kw
Compressed air requirement: dry/clean ≤6.5 Kg/CM²
RFID Tag width: 20-260mm
Processing speed: 3000-8000 PPH (depending on data content)

Applications

The YRFT-DOD-1 system is ideal for:

RFID/NFC tag personalization
Barcode and data printing
Chip UID reading and data writing
Chip encryption and electrical verification
Anti-counterfeiting code and serial number printing

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YRFT-DP-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1 plywood case
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	1 set per 25days
