Name: Industrial Smart Card Making Machine Mini RFID Card Laser Engraving Machine 1.5KW
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YMC-LDP-1
Availability: InStock

Detail Information

Power Supply:	AC220V 50/60 Hz 1.5Kw	Card Size:	Non-standard Card2020--2065mm,Circular Diameter Up To 20-60mm
Equipment Size:	L2100mm W1100mm H1650mm	Speed:	About 4000cards Per Hour And The Laser Speed Depends On The Size Of The Data
Compressed Air:	≤6.5 Kg/CM2	Control Mode:	Industrial Control Machine
Highlight:	Industrial Smart Card Making Machine , Smart Card Making Machine 1.5KW , Card Laser Engraving Machine 1.5KW

Product Description

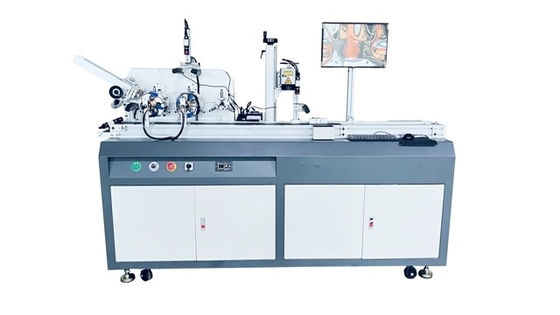

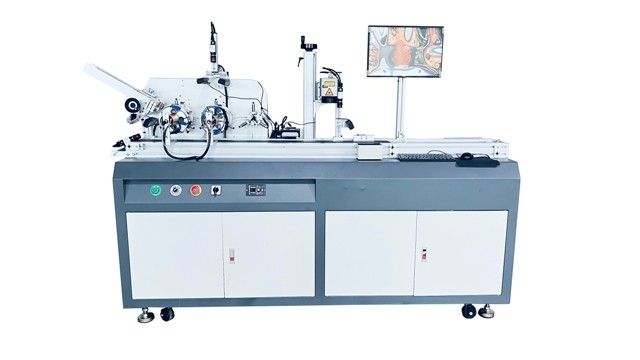

Rectangular RFID Card Laser Engraving Data Personalization Machine Mini YMC-LDP-1

Product Specifications

Attribute	Value
Power supply	AC220V 50/60 Hz 1.5Kw
Card size	Non-standard card 2020--2065mm, Circular diameter up to 20-60mm
Equipment size	L2100mm W1100mm H1650mm
Speed	Approximately 4000 cards per hour (laser speed depends on data size)
Compressed air	≤6.5 Kg/CM2
Control mode	Industrial control machine

Product Overview

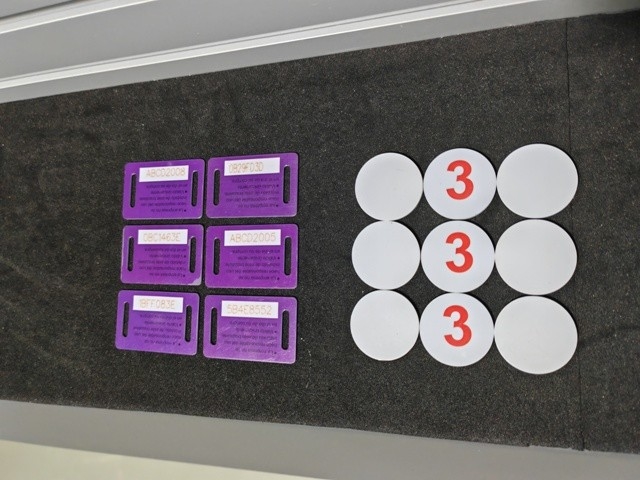

The Mini RFID Card Laser Marking & Data Encoding Machine YMC-LDP-1 features a smart and reliable card feeding system that accurately processes mini special shape cards, including small circular RFID cards and rectangular smart cards.

Key Features

Precise card surface recognition and marking area positioning
Processing speed up to 3000 cards per hour
Industrial computer control system
Handles non-standard card sizes from 20×20mm to 20×65mm
Circular card diameter capability up to 60mm

Technical Parameters

Dimensions: 2100×1100×1650mm (400Kg)
Power: AC220V 50/60Hz 1.5Kw
Compressed air requirement: ≤6.5 Kg/CM2
Operational speed: 4000 cards/hour (laser speed varies by data size)
Single operator operation

Applications

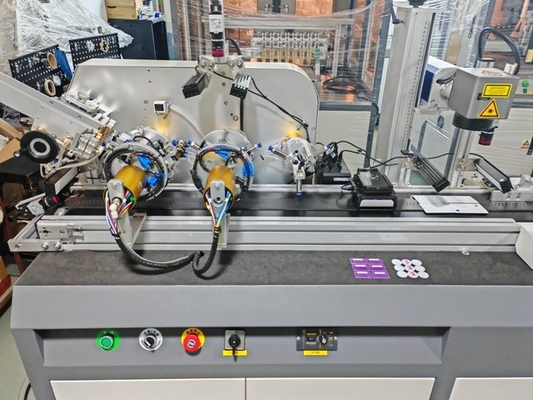

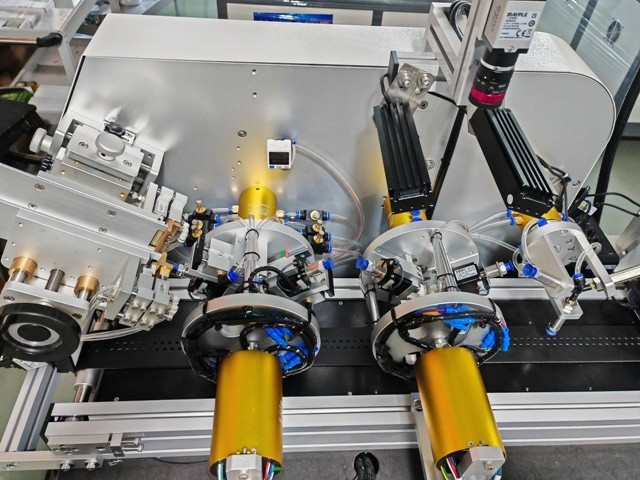

The YMC-LDP-1 machine includes horizontal adjustable card feeder, OCR inspection units, card rotation systems, RFID HF/LF Card Encoder, and laser engraving unit (CO2 or fiber optic type).

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YMC-LDP-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1 plywood case
Delivery Time:	30 working days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	1 set per 30 days
