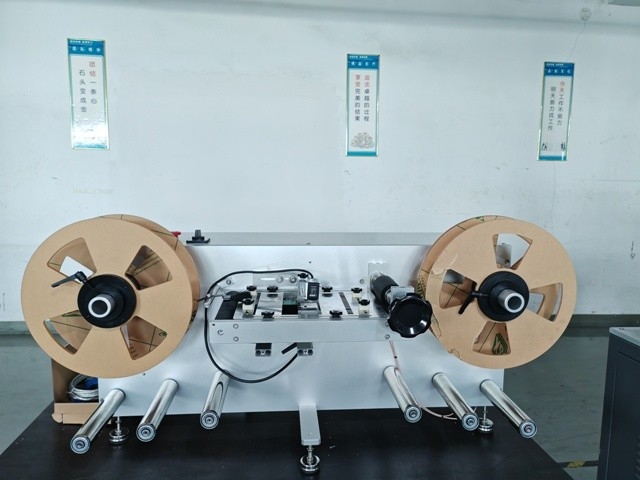

Name: Desktop RFID NFC Tag Data Personalization Device High Accuracy YRFT-DP-1
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YRFT-DP-1
Availability: InStock

Detail Information

Power Supply:	AC220V 50/60 Hz 1.5Kw	RFID Tag Width:	20-260mm.
Equipment Size:	L1100mmW620mmH520mm	Working Speed:	Read And Write Speed Varies From 3000 To 8000 PPH According To The Data Content.
Work Person:	1 People	Control Mode:	Mitsubishi PLC+ Computer (Note: The Computer Is Not Included In This Device Offer, And Normally The User Can User Their Own Computer To Connect And Work This Device.)
Highlight:	Desktop NFC Tag Personalization Device , Desktop Data Personalization Device , NFC Tag Data Personalization Device

Product Description

High Accuracy NFC Tag Personalization Desktop RFID / NFC Tag Data Personalization Device YRFT-DP-1

Product Specifications

Attribute	Value
Power supply	AC220V 50/60 Hz 1.5Kw
RFID Tag width	20-260mm
Equipment size	L1100mmW620mmH520mm
Working speed	Read and write speed varies from 3000 to 8000 PPH according to the data content
Work person	1 person
Control mode	Mitsubishi PLC+ computer (Note: Computer not included)

Product Overview

The YRFT-DP-1 is a desktop RFID/NFC tag data personalization device designed for electrical performance detection, block data writing, and encryption for various RFID tags including HF, UHF, and NFC tags.

Key Features

Advanced tape tension control with adjustable settings for various label sizes
Includes high-frequency HF reader by default with optional UHF reader available
User-friendly independently developed operating software compatible with multiple chip manufacturers
Comprehensive data writing and encryption capabilities with data tracking and logging functions

Technical Parameters

Dimensions: L1100mm × W620mm × H520mm
Gross weight: 48kg
Power supply: AC220V 50/60 Hz 1.5Kw
RFID Tag width: 20-260mm
Work speed: 3000-8000 PPH (depending on data content)
Operation requires 1 person

Applications

The YRFT-DP-1 is also known as RFID/NFC Tag Data Encoder, Desktop RFID/NFC Tag Chip Data Writer, or RFID Tag/NFC Tag Chip IC Proofreader, suitable for various tag personalization applications.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YRFT-DP-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1 plywood case
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	1 set per 25days
