Name: PLC Controlled Plastic Card Hot Foil Stamping Machine Card Concave Code Gilding Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHSN-1
Availability: InStock

Detail Information

Features:	Good Stability And Quality Stamping	Application:	Single-line Sequential Number On Card Surface
Control System:	PLC With Friendly Man-machine Interface	Stamping Head:	Longer Service Life
Control Mode:	PLC+ Stepping System	Material:	CR80 Cards 0.50-0.85 Mm Thick
Highlight:	Plastic Card Hot Foil Stamping Machine , PLC Controlled Card Hot Foil Stamping Machine , Card Concave Code Gilding Machine

Product Description

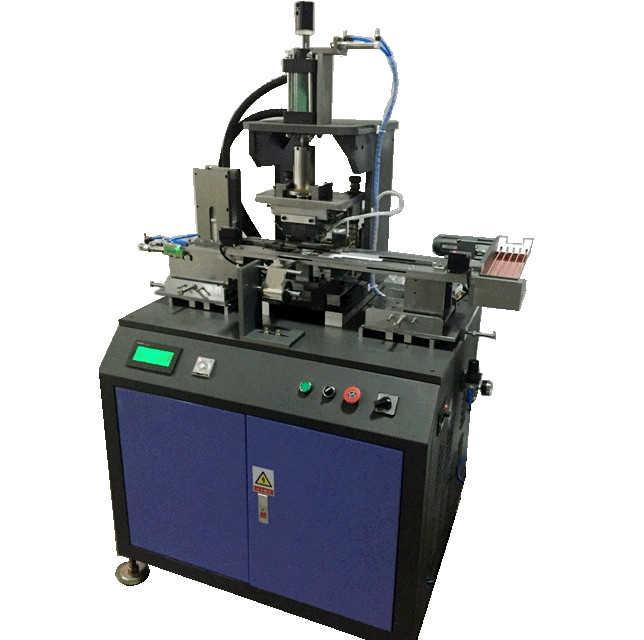

Plastic Card Hot Foil Stamping Machine, Card Concave Code Gilding Machine YHSN-1

Product Specifications

Attribute	Value
Application	Single-line sequential number on card surface
Control system	PLC with friendly man-machine interface
Features	Good stability and quality stamping
Stamping head	Longer service life
Control mode	PLC + stepping system
Material	CR80 cards 0.50-0.85 mm thick

Product Overview

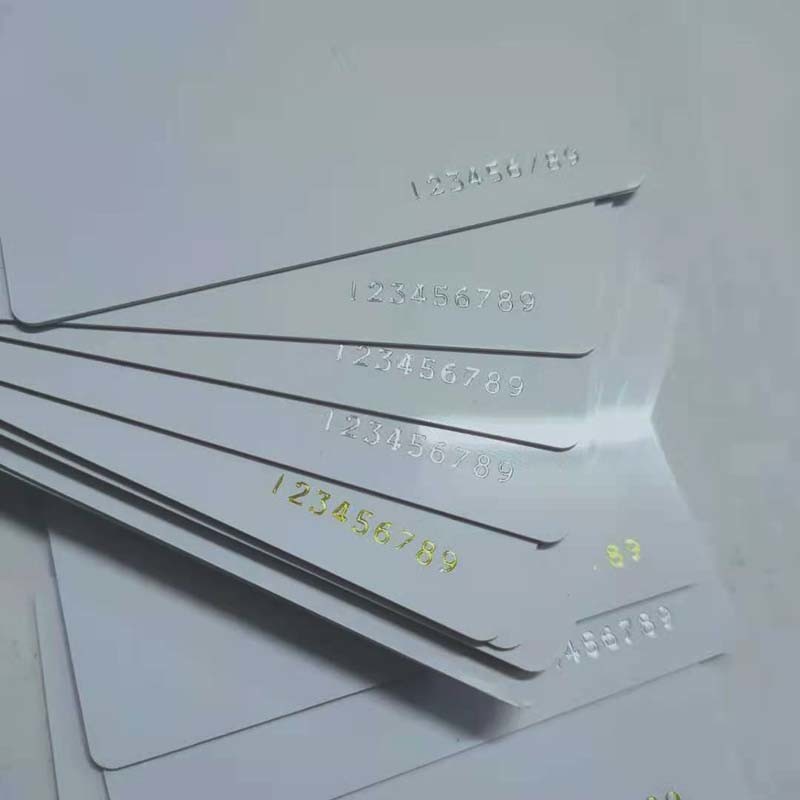

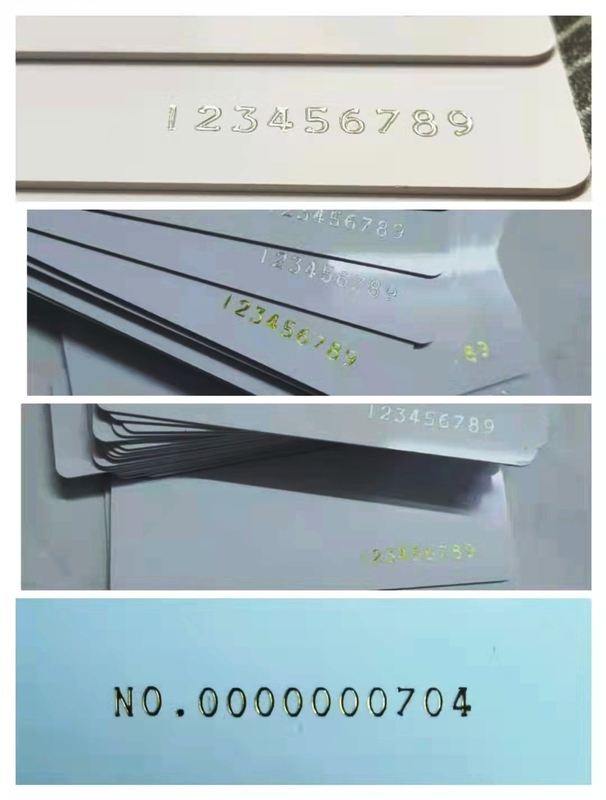

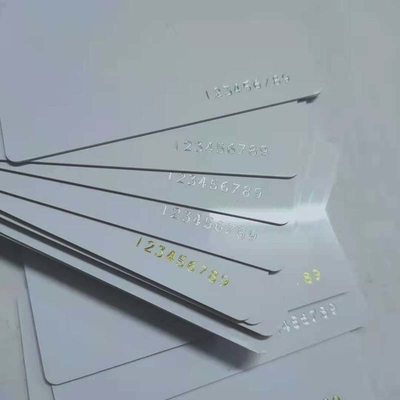

The YHSN-1 Plastic Card Hot Foil Stamping Machine is specially designed for hot stamping single-line sequential numbers on card surfaces. This machine creates dented serial numbers or fixed numbers without embossing effects, featuring precise positioning and high-speed operation.

Key Features

High-quality servo motor ensures stable operation and excellent stamping quality
Adjustable running speed and pressing stroke for customized operation
PLC control system for reliable automatic operation with automatic halt and alarm functions
Precision temperature controller maintains optimal hot stamping conditions
Durable stamping head made from high-quality mold steel for extended service life

Technical Parameters

Power supply:

AC 220V, 50/60 Hz

Dimensions (L×W×H):

1200×820×1580mm

Weight:

Approximately 390 kg

Control mode:

PLC + stepping system

Compressed air:

6 KG/cm², 30L/min

Speed:

3500 cards per hour

Material:

CR80 cards 0.50-0.85 mm thick

Power:

2.5KW

Position accuracy:

±0.2mm

Stamping temperature range:

120-250°C

Stamping area:

≤48mm (width) × ≤80mm (length)

Number length:

3 fixed characters (e.g., VIP/NO.) + 10 number digits

Applications

The YHSN-1 machine, also known as Plastic Card Dented Number Stamping Machine or Plastic Card Concave Code Gilding Machine, is ideal for creating sequential numbering on various plastic cards with precision and efficiency.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YHSN-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	25-30days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 25 days
