Name: Plastic Card Stamping Machine 2.5KW High Speed Hot Foil Stamping Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHSN-1
Availability: InStock

Detail Information

Power Supply:	AC 220V, 50/60 Hz	Dimension:	L1200×W820×H1580mm
Weight:	PLC+ Stepping System	Compressed Air:	6 KG/cm2 30L/min
Speed:	3500 Cards Per Hour	Material:	CR80 Cards 0.50-0.85 Mm Thick
Power:	2.5KW	Position Accuracy:	±0.2mm
Stamping Temperature Range:	120-250 Centigrade Degrees	Stamping Area On Card Surface:	No More Than 48mm In Card Width Direction And No More Than 80mm In Card Length Direction.
Number Length:	3 Fixed Characters (like VIP/NO.)+10 Number Digits
Highlight:	Card Stamping Machine 2.5KW , Plastic Card Stamping Machine , High Speed Hot Foil Stamping Machine

Product Description

Plastic Card Hot Foil Stamping Machine / Card Dented Number Stamping Machine

Product Overview

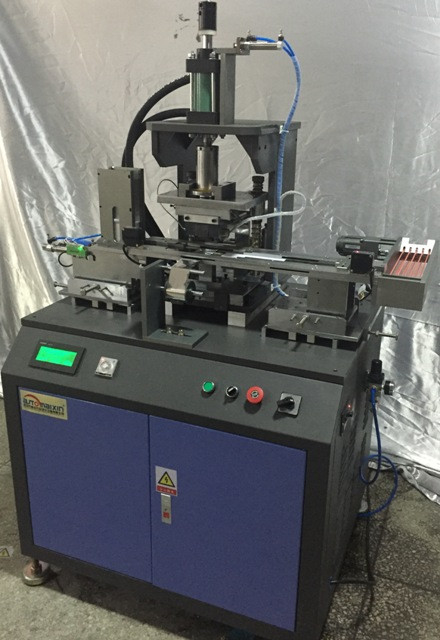

The Plastic Card Hot Stamping Numbering Machine YHSN-1 is designed for precision hot stamping of sequential numbers on card surfaces. This PLC-controlled system delivers high-speed operation with excellent stamping quality and precise positioning.

Key Features

High-quality servo motor ensures stable operation and consistent stamping quality
Adjustable running speed and pressing stroke for optimal performance
PLC-controlled automatic operation with fault detection and alarm system
Precision temperature controller for superior stamping results
Durable stamping head made from high-quality mold steel for extended service life

Technical Specifications

Power Supply	AC 220V, 50/60 Hz
Dimensions	1200×820×1580mm (L×W×H)
Weight	Approx. 390kg
Control System	PLC + stepping system
Compressed Air	6 KG/cm² (dry), 30L/min consumption
Production Speed	3500 cards per hour
Material Compatibility	CR80 cards 0.50-0.85mm thick
Power Consumption	2.5KW
Position Accuracy	±0.2mm
Stamping Temperature Range	120-250°C
Maximum Stamping Area	48mm (width) × 80mm (length)
Numbering Format	3 fixed characters (e.g., VIP/NO.) + 10 number digits

Alternative Names

This machine is also known as: Plastic Card Dented Number Stamping Machine, Plastic Card Concave Code Gilding Machine, or Plastic Card Sunken Number Bronzing Machine YHSN-1.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YHSN-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5 sets per quarter
