Name: PLC Controlled Smart Card Stamping Machine For Applying Holograms Signature Panels
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHS-1
Availability: InStock

Detail Information

Speed::	3000 Cards Per Hour	Material:	CR80 Cards 0.50-0.85 Mm Thick
Power:	2.5kw	Position Accuracy:	±0.2mm
Stamping Temperature Range:	120-180 Centigrade Degrees (normally 140-150)	Stamping Area On Card Surface::	No More Than 48mm In Card Width Direction And No More Than 80mm In Card Length Direction.
Highlight:	Smart Card Stamping Machine , PLC Controlled Card Stamping Machine

Product Description

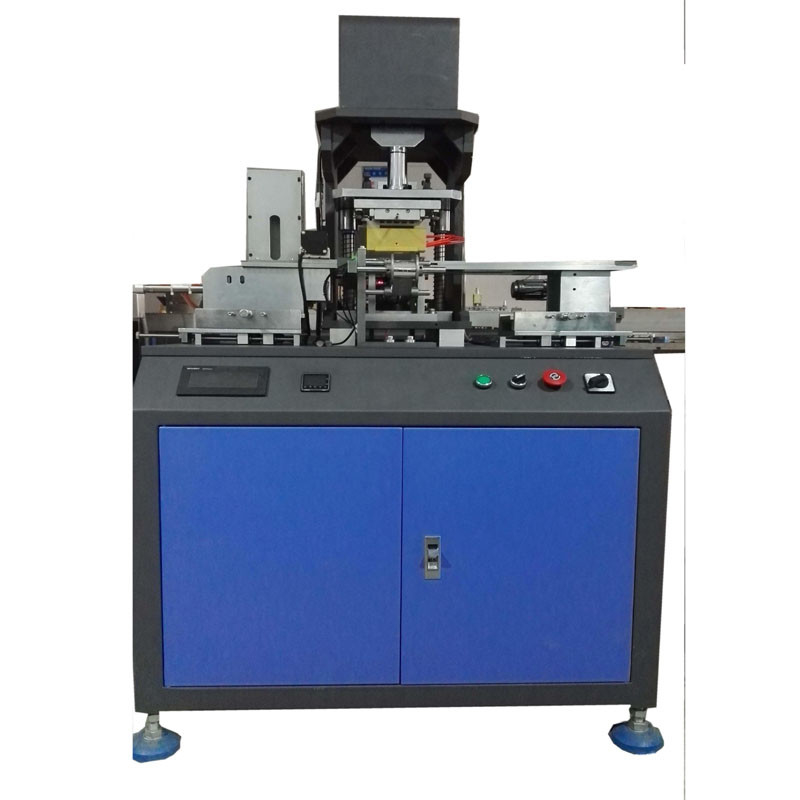

Smart Plastic Card Signature Panel Hot Stamping Machine PLC Controlled YHS-1

Key Specifications

Attribute	Value
Speed	3000 cards per hour
Material	CR80 cards 0.50-0.85 mm thick
Power	2.5kw
Position accuracy	±0.2mm
Stamping temperature range	120-180°C (normally 140-150°C)
Stamping area	Max 48mm (width) × 80mm (length)

Product Overview

The Smart Plastic Card Signature Panel Hot-Stamping Machine YHS-1 is an automated solution for applying holograms, signature panels, and decorative foils to plastic cards. Featuring PLC control with a user-friendly interface, this machine delivers high-speed operation with precise positioning and consistent stamping quality.

Key Features

High-quality servo motor ensures stable operation and adjustable running speed/pressing stroke
Adjustable stepping distance for gilding film
PLC-controlled automatic operation with error detection and alarm system
Precision temperature control using imported temperature controller

Technical Parameters

Power supply: AC 220V, 50/60 Hz
Dimensions: 1200×820×1580mm (L×W×H)
Weight: ~390 kg
Control system: PLC + stepping system
Compressed air requirement: 6 KG/cm², 30L/min

Applications

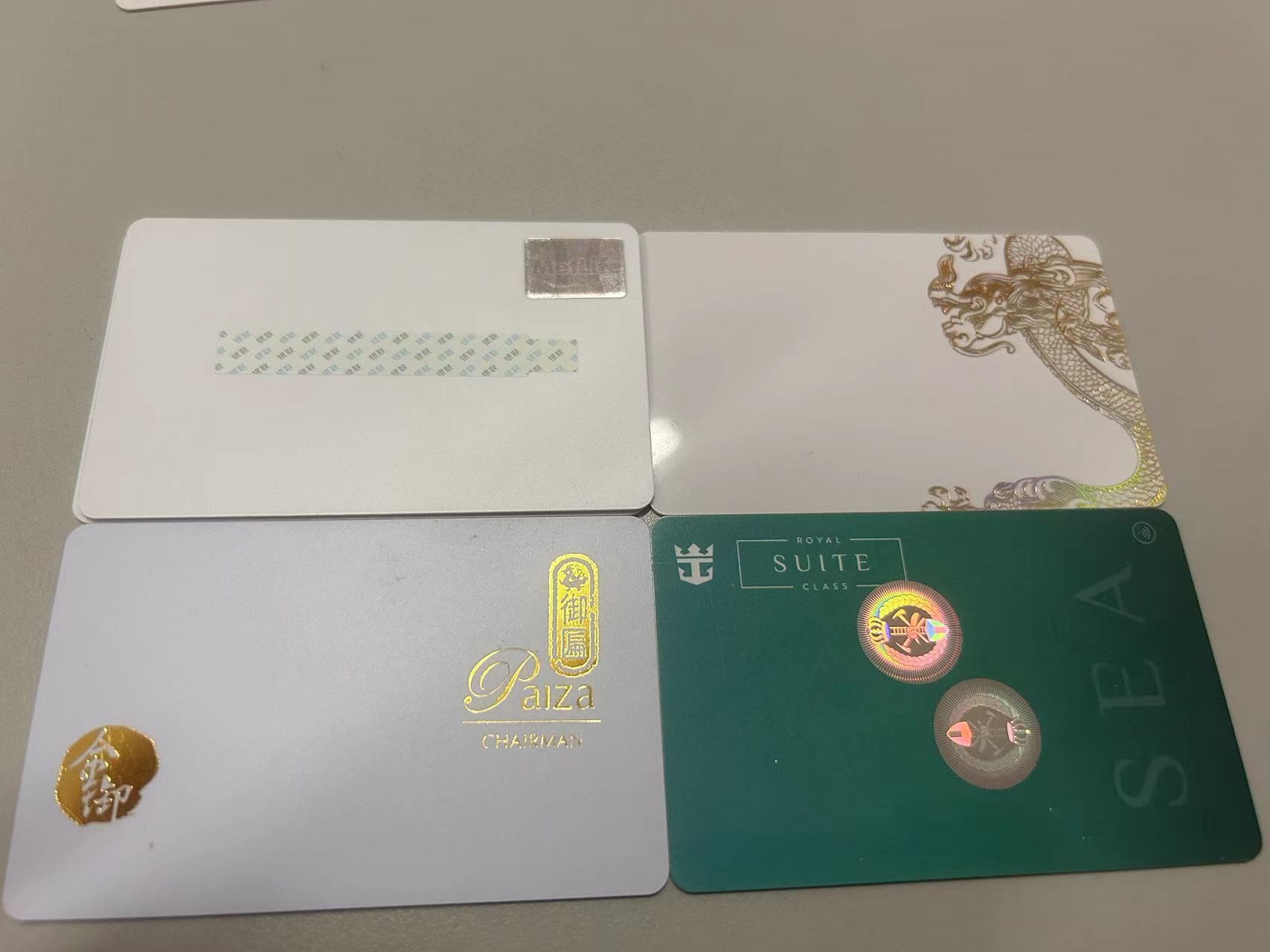

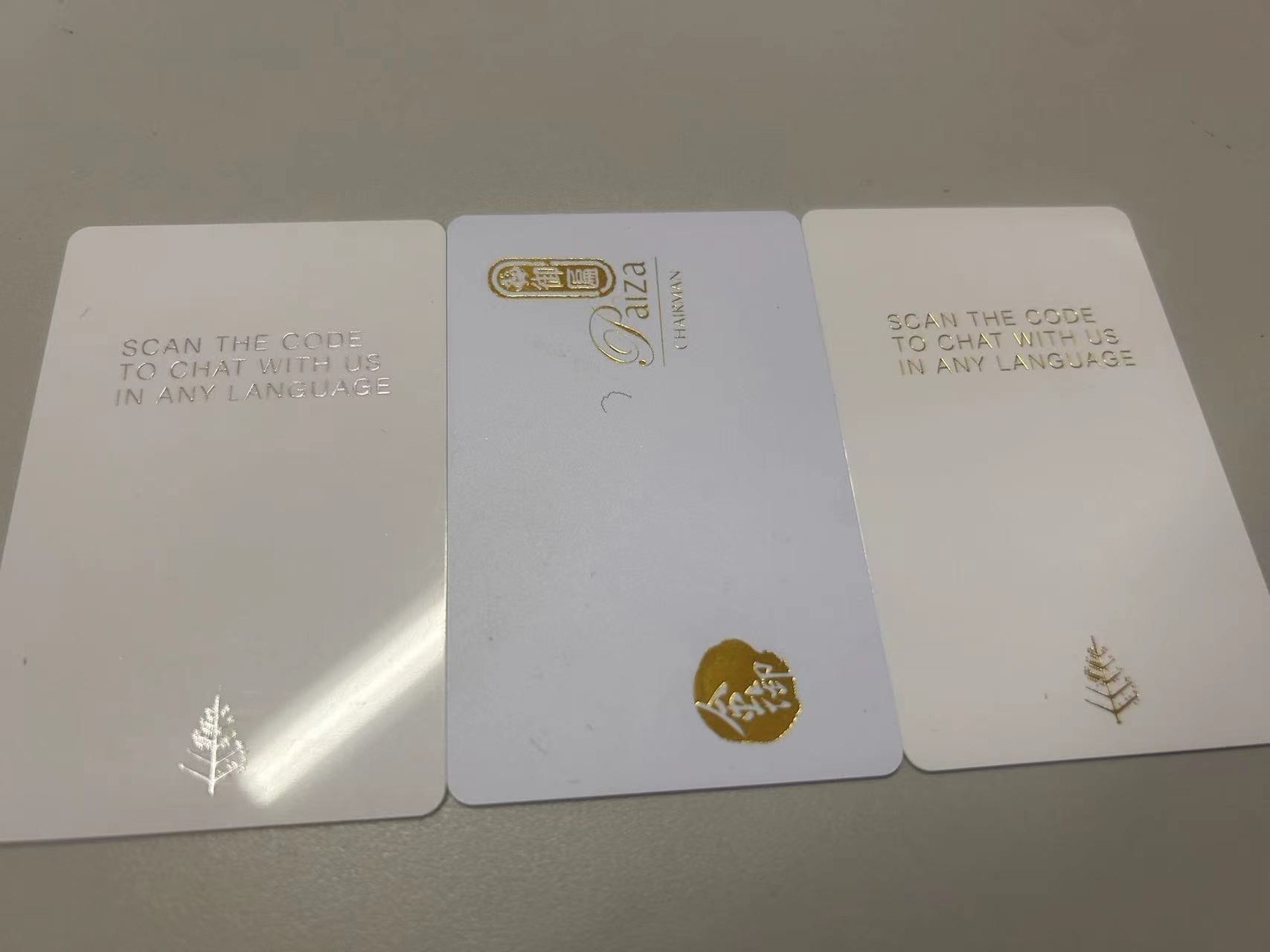

This machine is designed for hot stamping anti-counterfeit holograms, signature panels, and decorative foils on plastic cards. Custom hot-stamping dies can be manufactured according to customer specifications to accommodate various designs and logos.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YHS-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	20-25days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 25 days
