High Speed 2.5kW Plastic Card Embosser Machine With 6000 Cards Per Hour

High Speed 2.5kW Plastic Card Embosser Machine With 6000 Cards Per Hour
High Speed 2.5kW Plastic Card Embosser Machine With 6000 Cards Per Hour High Speed 2.5kW Plastic Card Embosser Machine With 6000 Cards Per Hour High Speed 2.5kW Plastic Card Embosser Machine With 6000 Cards Per Hour High Speed 2.5kW Plastic Card Embosser Machine With 6000 Cards Per Hour High Speed 2.5kW Plastic Card Embosser Machine With 6000 Cards Per Hour High Speed 2.5kW Plastic Card Embosser Machine With 6000 Cards Per Hour High Speed 2.5kW Plastic Card Embosser Machine With 6000 Cards Per Hour
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YLE-1
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 1 plywood case
Delivery Time: 25days
Payment Terms: T/T, Western Union, D/P, D/A, Western Union
Supply Ability: 1 set per 25 days
Get Best Price
Chat Now
Detail Information
Speed: Over 6000 Cards/hr Applicable Material: 0.6-1.0 Mm Thick Plastic CR80 Cards
Pressure Of Hydraulic System: ≤50 KG/cm2 Pressure Of Compressed Air: ≤5 KG/ Cm2
Power Supply: AC380V 50/60Hz Power: 2.5kW
Weight: 350kg Dimension: L1400×W800×H1700 Mm
Highlight:

High Speed Plastic Card Embosser

,

2.5kW Plastic Card Embosser

Product Description

Plastic Card Embosser Machine With One Embossing Station and One Tipping Station
Key Features
  • High-speed operation with capacity over 6,000 cards per hour
  • Designed for CR80 plastic cards (0.6-1.0 mm thickness)
  • Mitsubishi PLC and touch screen control system for reliable operation
  • SMC pneumatic components for enhanced durability
  • Japanese special steel embossing molds with extended service life
  • Customizable embossed characters/symbols available
Technical Specifications
Attribute Value
Speed Over 6000 cards/hr
Applicable material 0.6-1.0 mm thick plastic CR80 cards
Pressure of hydraulic system ≤50 KG/cm²
Pressure of compressed air ≤5 KG/cm²
Power supply AC380V 50/60Hz
Power 2.5kW
Weight 350kg
Dimension L1400×W800×H1700 mm
Machine Description

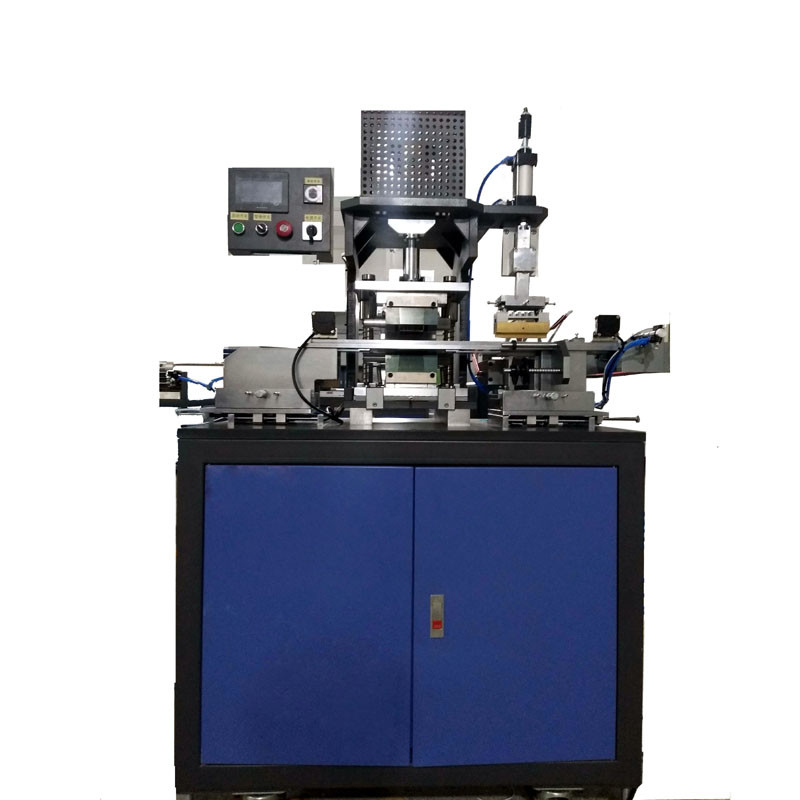

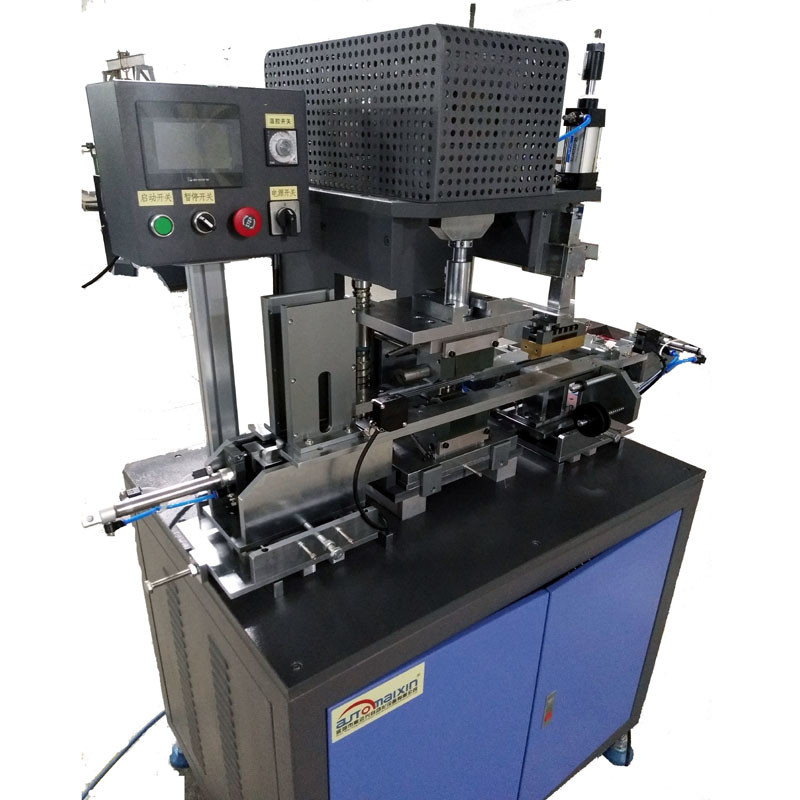

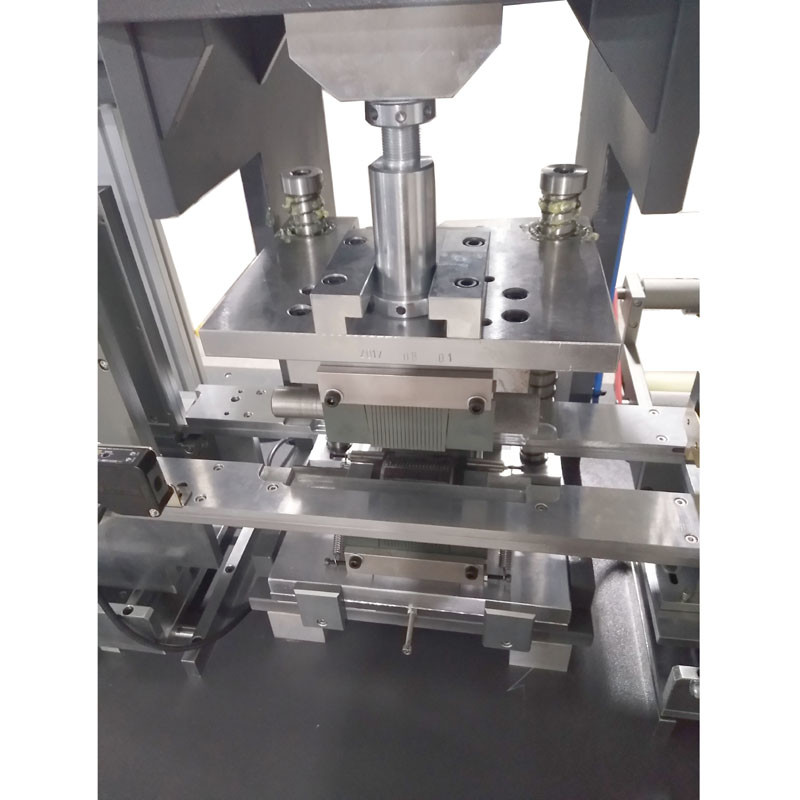

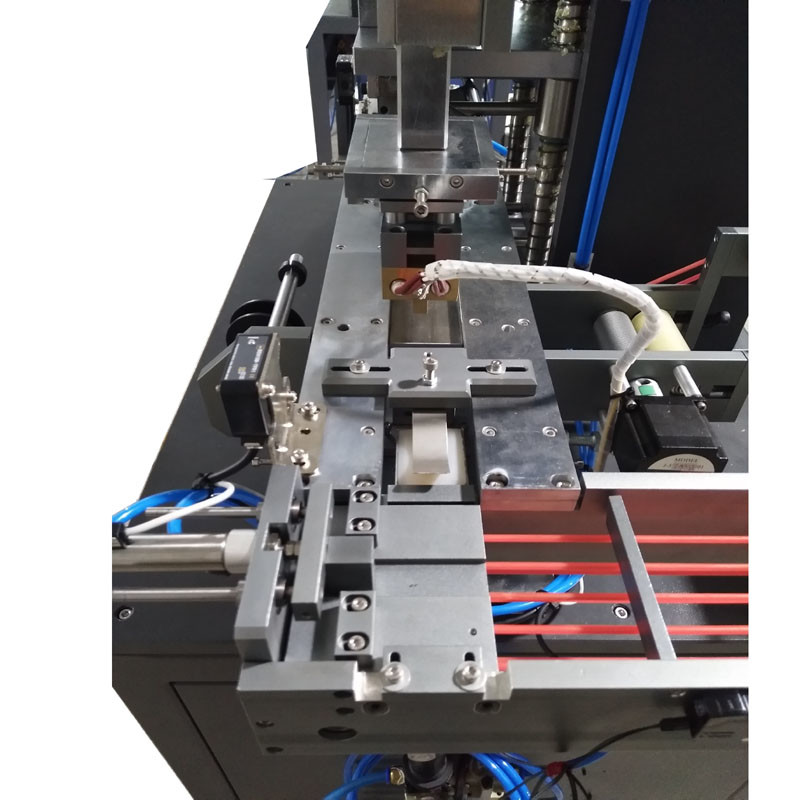

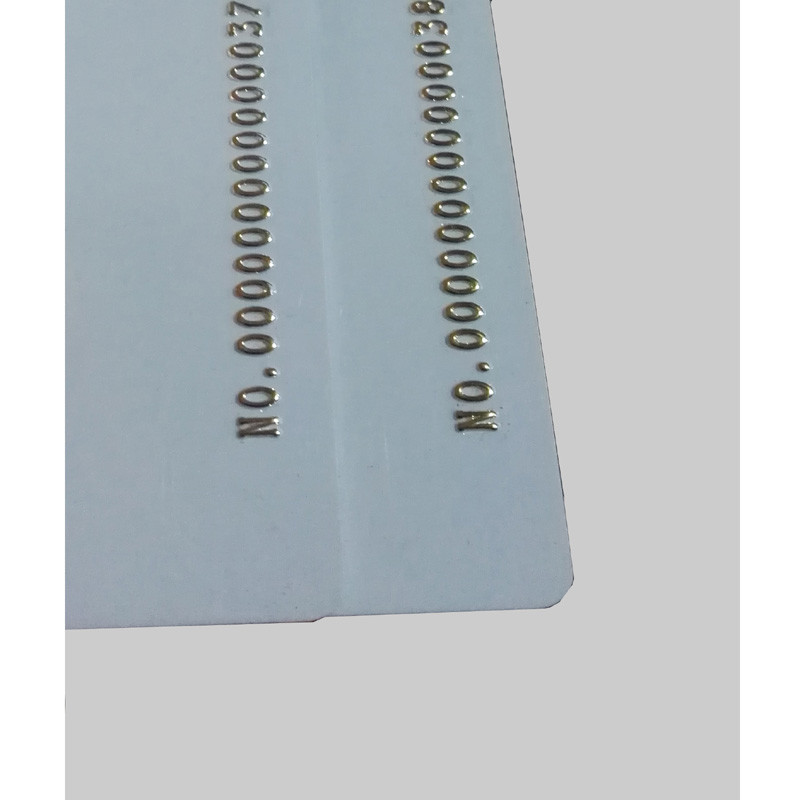

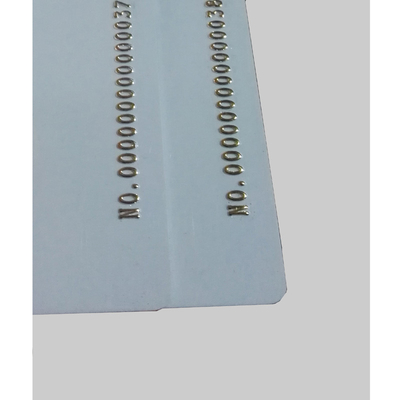

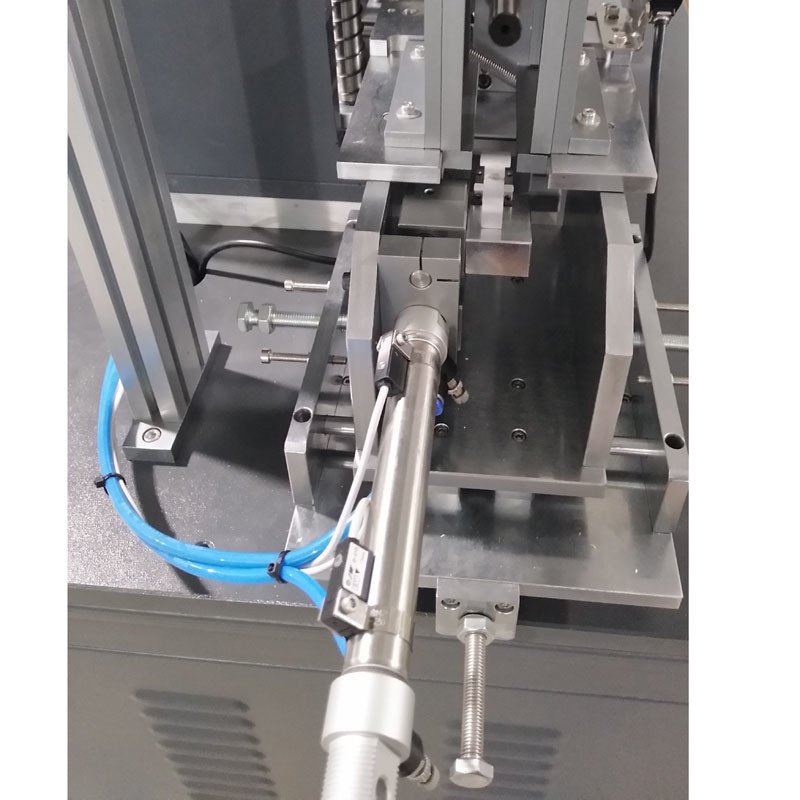

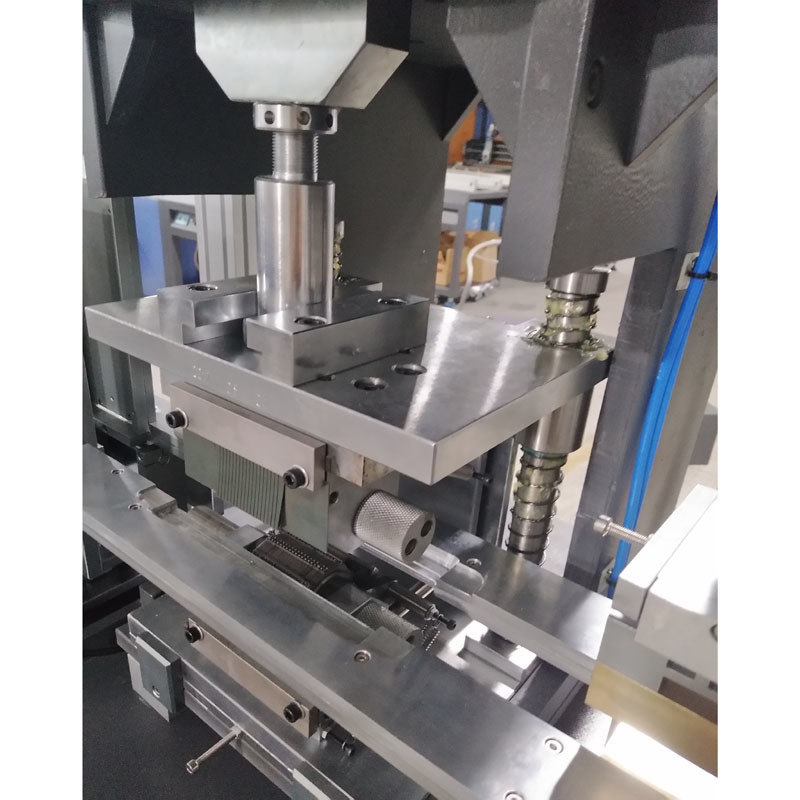

The YLE-1 Plastic Card Embosser features one embossing station and one tipping station, enabling simultaneous embossing and tipping of standard plastic cards at high speed. Designed specifically for sequential numbering (3 fixed words/symbols + maximum 16 numbers), this machine combines efficiency with precision.
The system incorporates premium components including Mitsubishi PLC controls, touch screen interface, and step-motion technology for optimal stability. The embossing molds are crafted from Japanese special steel, offering durability for millions of operations, with two character size options available.
