Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour

Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour
Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YHS-2
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 1 plywood case
Delivery Time: 20-25days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 set per 25 days
Get Best Price
Chat Now
Detail Information
Speed:: 2000-3000 Cards Per Hour Material: CR80 Cards 0.70-0.9 Mm Thick
Power: 2.6kw Position Accuracy: ±0.2mm
Stamping Temperature Range: 220 Centigrade Degrees Stamping Area On Card Surface:: No More Than 48mm In Card Width Direction And No More Than 80mm In Card Length Direction.
Highlight:

2.6KW Hot Foil Stamping Machine

,

Bank Card Hot Foil Stamping Machine

,

Dual Station Hot Foil Stamping Machine

Product Description

Dual Station Bank Card Hot Foil Stamping Machine With Signature Panel
Key Specifications
Speed 2000-3000 cards per hour
Material CR80 cards 0.70-0.9 mm thick
Power 2.6kw
Position accuracy ±0.2mm
Stamping temperature range 220 centigrade degrees
Stamping area Maximum 48mm (width) × 80mm (length) on card surface
Product Overview
The Dual Station Bank Card Hot-Stamping Machine YHS-2 is designed for precision hot stamping of anti-fake hologram panels and signature panels on smart card surfaces. Featuring two hot stamping stations with an integrated card flip unit, it efficiently processes both sides in a single pass.

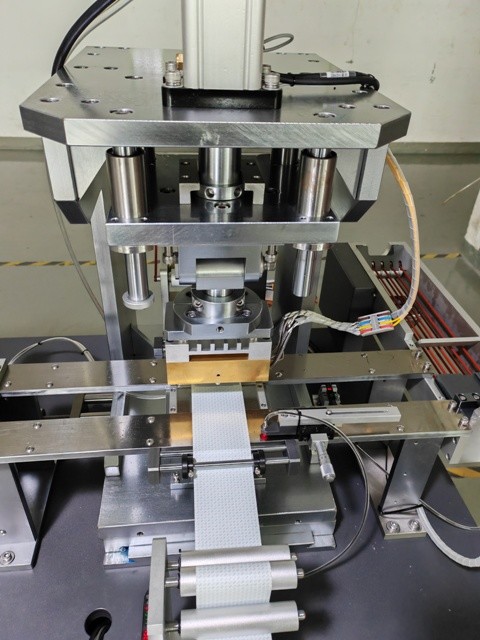

Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour 0
Technical Parameters
Power supply AC 380V 3 phases
Dimensions (L×W×H) 1580×1080×1680 mm
Weight 900 kg
Control mode PLC + stepping system
Compressed air 6 KG/cm² 30L/min
Temperature accuracy ±1.0°C
Key Features
  • High-quality servo motor ensures stable operation and adjustable running speed/pressing stroke
  • Adjustable stepping distance for gilding film
  • PLC-controlled automatic operation with error detection and alarm system
  • Precision temperature control using imported controllers for superior stamping quality

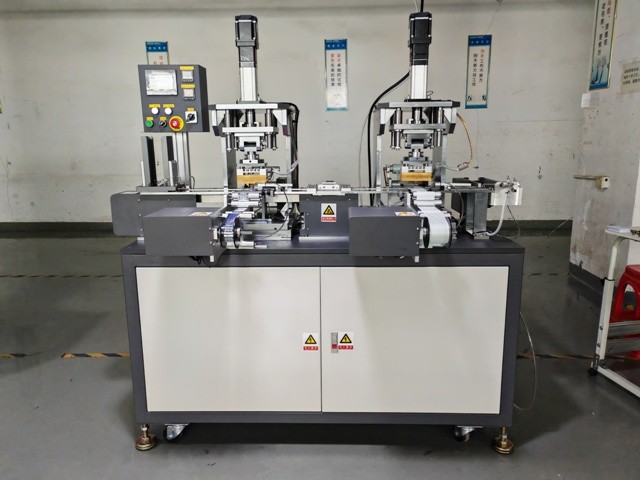

Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour 1
Applications
The YHS-2 Hot Stamping Machine is ideal for processing PVC and other plastic materials (0.7-0.9mm thickness) with PLC-controlled touch screen operation that prevents card scratching during conveyance.

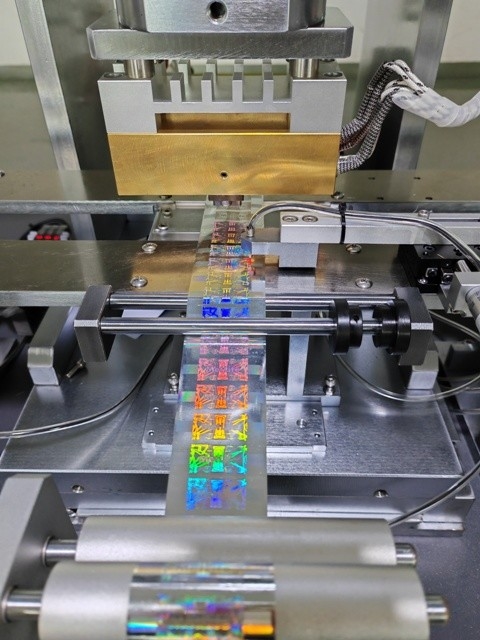

Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour 2 Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour 3
Note: Hot-stamping dies are not included. Custom dies can be manufactured according to customer specifications for different logo sizes and designs.
Dual Station Bank Card Hot Foil Stamping Machine 3000 Cards/Hour 4
