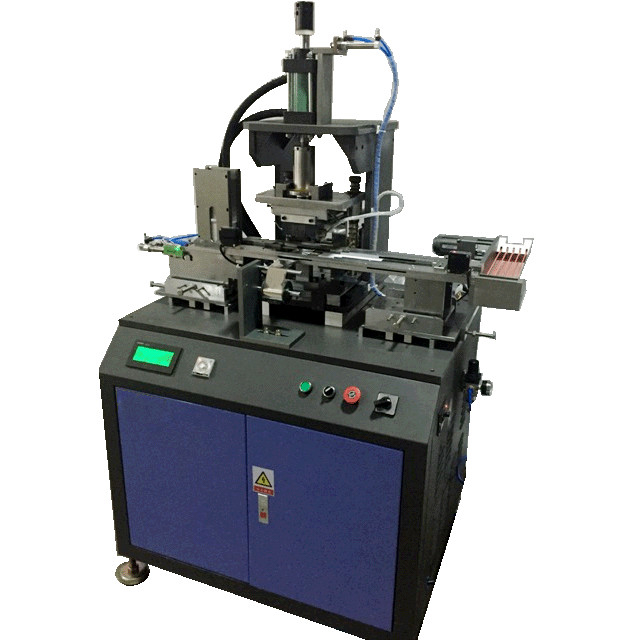

Fully Automatic Precision Card Stamping Machine Plastic Card Hot Foil Stamping Machine

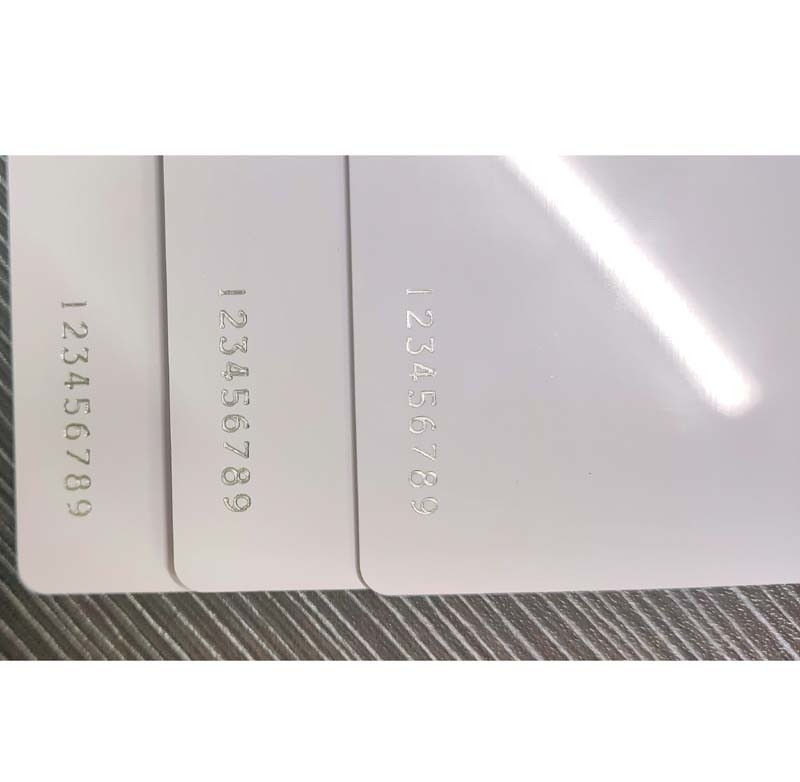

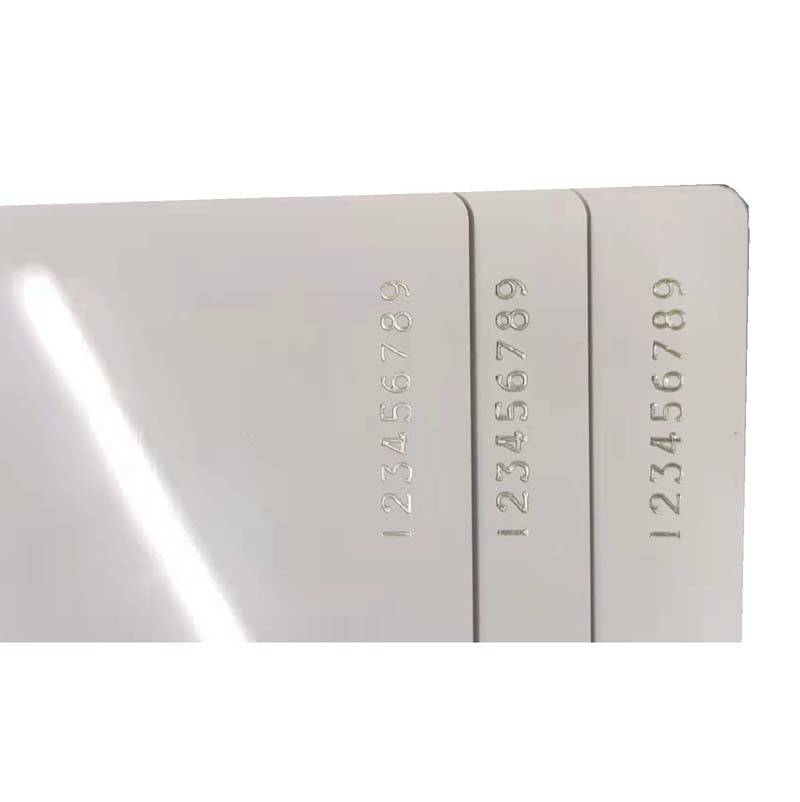

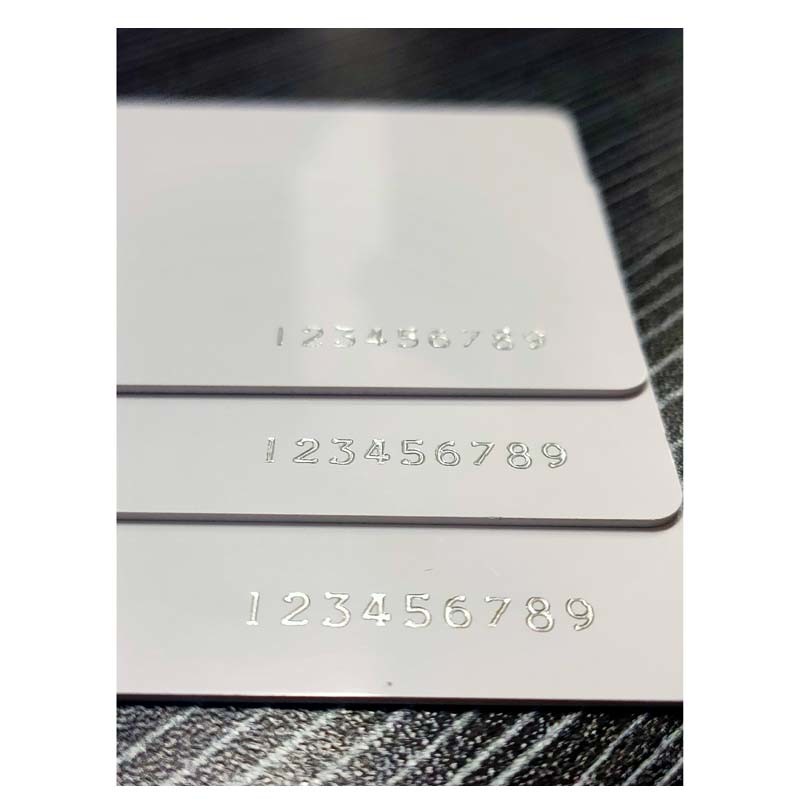

The YHSN-1 Plastic Card Hot Stamping Numbering Machine is designed for precision single-line sequential numbering on card surfaces. This fully automated system creates dented serial numbers or fixed codes without embossing effects, delivering professional results with exceptional accuracy.

• High-quality servo motor ensures stable operation and adjustable running speed/pressing stroke
• PLC control system enables reliable automation with automatic fault detection and alarms
• Precision temperature controller maintains optimal stamping quality (120-250°C range)
• Durable mould steel stamping head for extended service life
• Supports 3 fixed characters (e.g., VIP/NO.) plus 10 number digits
• Maximum stamping area: 48mm (width) × 80mm (length) on card surface

• Compressed air requirement: 6 KG/cm² at 30L/min
• Stamping temperature range: 120-250°C
• Position accuracy: ±0.2mm
• Processing capacity: 3500 cards/hour
• Material compatibility: CR80 cards (0.50-0.85mm thickness)

Also known as Plastic Card Dented Number Stamping Machine or Concave Code Gilding Machine, the YHSN-1 is ideal for:

• Membership cards
• Identification cards
• Loyalty program cards
• Sequential numbering applications
