Name: Industrial Automatic Card Stamping Machine 2.5KW Power 3000 Cards/Hour
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHS-1
Availability: InStock

Detail Information

Power Supply:	AC 220V, 50/60 Hz	Dimensions:	L1200×W820×H1580mm
Weight:	Around 390 Kg	Control Mode:	6 KG/cm2 30L/min
Speed:	3000 Cards Per Hour	Material:	CR80 Cards 0.50-0.85 Mm Thick
Power:	2.5KW	Position Accuracy:	±0.2mm
Stamping Temperature Range:	120-180 Centigrade Degrees (normally 140-150)	Stamping Area On Card Surface:	No More Than 48mm In Card Width Direction And No More Than 80mm In Card Length Direction
Highlight:	Automatic Card Stamping Machine , Industrial Card Stamping Machine

Product Description

Automatic Card Hot Foil Stamping Machine Signature Panel Stamping Machine YHS-1

Product Specifications

Attribute	Value
Power supply	AC 220V, 50/60 Hz
Dimensions	L1200×W820×H1580mm
Weight	around 390 kg
Control mode	6 KG/cm2 30L/min
Speed	3000 cards per hour
Material	CR80 cards 0.50-0.85 mm thick
Power	2.5KW
Position accuracy	±0.2mm
Stamping temperature range	120-180°C (normally 140-150°C)
Stamping area	≤48mm (width) × ≤80mm (length)

Product Description

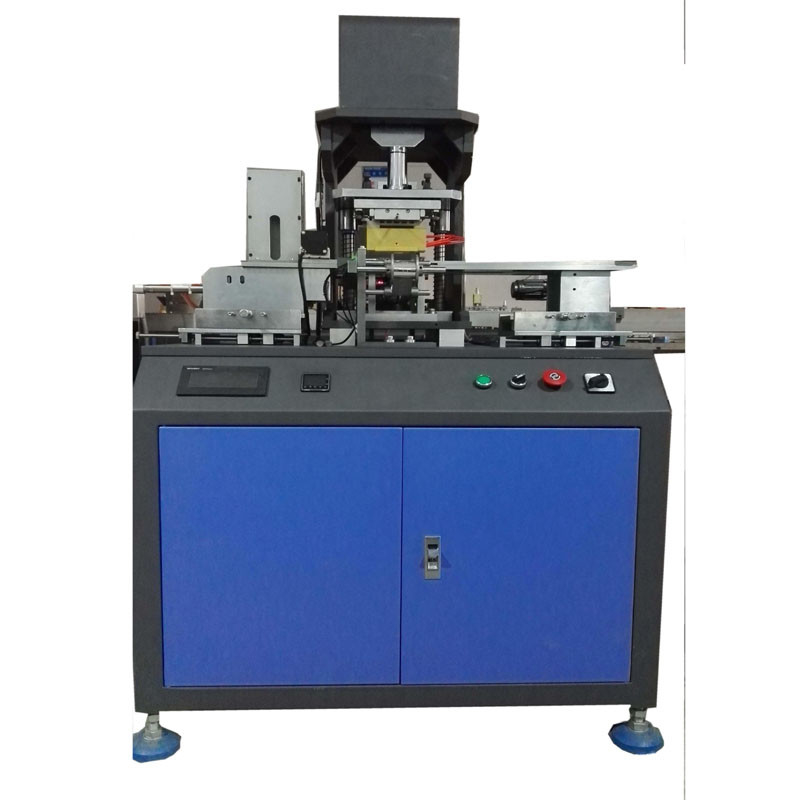

The Card Signature Panel Stamping Machine YHS-1 is an automatic hot foil stamping machine designed for applying holograms, signature panels, and decorative foil patterns to plastic cards. Also known as the Card Hologram Foil Stamping Machine, it features PLC control with a user-friendly interface for precise, high-quality stamping operations.

Key Features

High-quality servo motor ensures stable operation and consistent stamping quality
Adjustable running speed and pressing stroke for versatile applications
Precise stepping distance adjustment for gilding film
PLC-controlled automatic operation with fault detection and alarm system
Imported temperature controller maintains optimal stamping temperature (120-180°C)
High production capacity of 3000 cards per hour
±0.2mm position accuracy for precise stamping

Applications

This machine is specifically designed for hot stamping anti-counterfeiting holograms and signature panels on plastic cards. It can also apply decorative gold/silver foil patterns and scratch-off foil stamping on card surfaces, making it ideal for ID cards, credit cards, membership cards, and other plastic card production.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YHS-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T, Western Union, MoneyGram, Western Union
Supply Ability:	5 sets per quater
