Name: Automatic Card Hot Foil Stamping Machine PLC Control Signature Panel Stamping Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHS-1
Availability: InStock

Detail Information

Power Supply:	AC 220V, 50/60 Hz	Dimension:	L1200mm×W820mm×H1580mm
Weight:	Around 390 Kg	Control Mode:	PLC+ Stepping System
Compressed Air:	6 KG/cm2 30L/min	Speed:	3000 Cards Per Hour
Highlight:	Automatic Signature Panel Stamping Machine , Automatic Card Hot Foil Stamping Machine , Card Hot Foil Stamping Machine PLC Control

Product Description

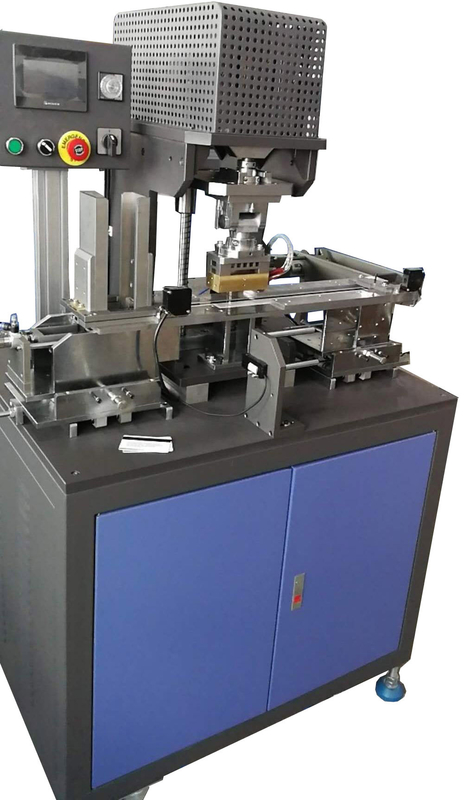

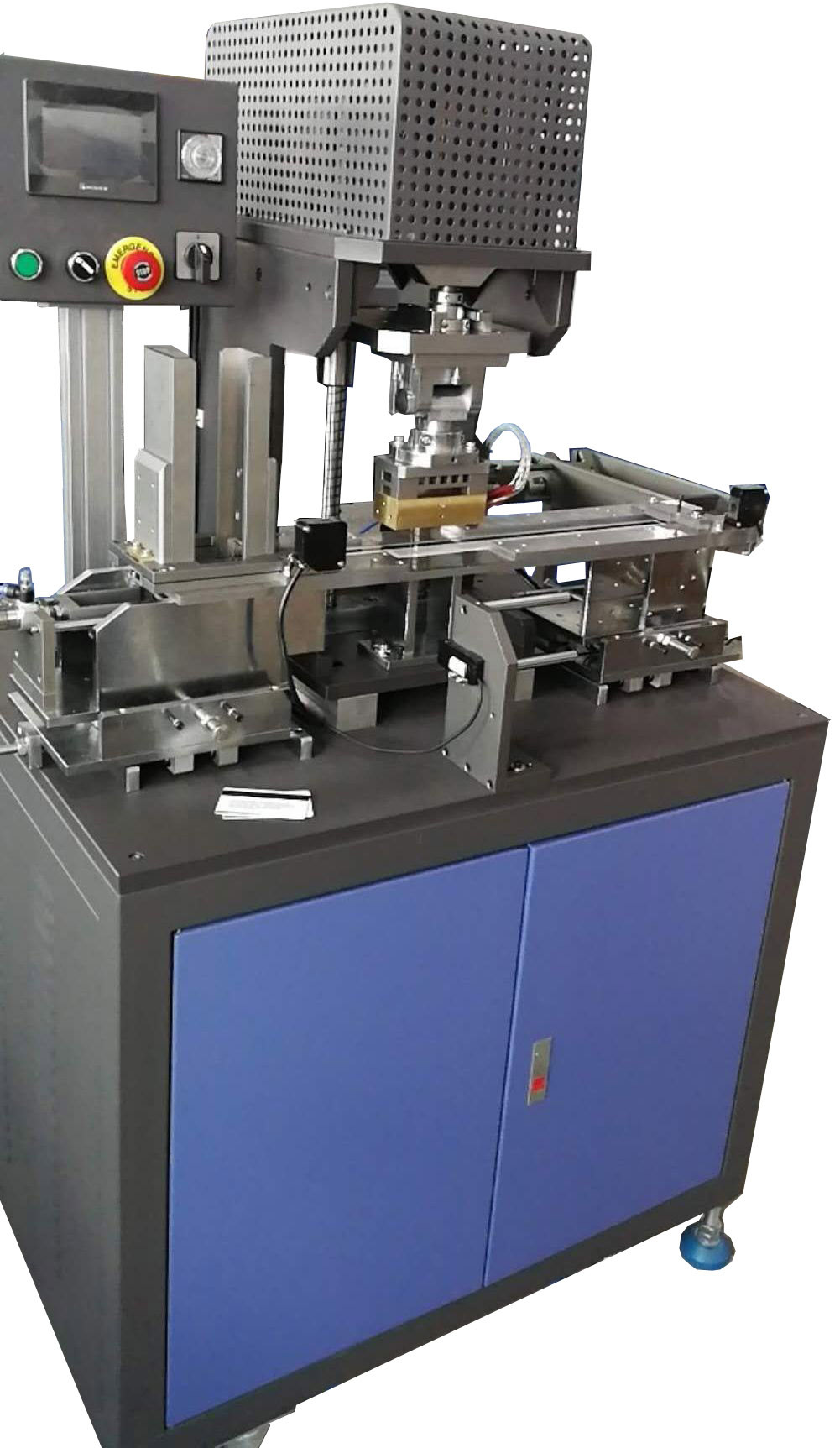

Automatic Card Hot Foil Stamping Machine Card Signature Panel Stamping Machine YHS-1

Key Specifications

Power supply	AC 220V, 50/60 Hz
Dimension	L1200mm×W820mm×H1580mm
Weight	around 390 kg
Control mode	PLC+ stepping system
Compressed air	6 KG/cm2 30L/min
Speed	3000 cards per hour

Product Overview

The Automatic Card Hot Stamping Machine YHS-1 is specially designed for hot stamping anti-fake holograms or signature panels on plastic cards. It can also stamp words and patterns with gold/silver foil or scratch-off foil on card surfaces. Featuring PLC control with a user-friendly interface, this machine delivers high speed, excellent stamping quality, and precise positioning.

Key Features

High-quality servo motor ensures stability and quality stamping with adjustable running speed and pressing stroke
Adjustable stepping distance for gilding film
PLC-controlled automatic operation with alarm system for no-card or failure situations
Imported temperature controller for precise hot stamping temperature regulation

Technical Parameters

Material	CR80 cards 0.50-0.85 mm thick
Power	2.5KW
Position accuracy	±0.2mm
Water cooling system	Temperature data output interface for cold water system
Stamping temperature range	120-180°C (typically 140-150°C)
Stamping area	Max 48mm (width) × 80mm (length) on card surface

Performance Metrics

Product First Pass Rate	≥99.8%
Equipment utilization rate	≥98%
Mean Time Between Major Failures (MTBF)	≥168h
X Y Z-axis accuracy of chip slot milling	±0.015mm; Cpk>1.33
Embedding accuracy	±0.02mm; Cpk>1.33
Production speed	4000 cards/hour for 1-chip card production

Our Service Commitment

Pre-sale Services

• Professional consultation on raw material matching, machine selection, and production line setup

• Customized equipment recommendations based on production requirements

• Factory visits and invitation letters available upon request

• Comprehensive company and product documentation

Sales Support

• Real-time production scheduling updates

• Strict quality supervision and product acceptance

• Guaranteed on-time shipping

After-sale Support

• On-site installation and commissioning by our engineers

• Comprehensive operator training

• Lifetime technical support

• Regular customer follow-ups and feedback collection

Warranty

All card machines come with a 1-year warranty. Our service department is available for prompt assistance. For complex issues within the warranty period, we provide on-site support.
