Name: Dual Station Card Hot Foil Stamping Machine For Hologram And Signature Panels
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHS-2
Availability: InStock

Detail Information

Thickness Of Material:	0.7-0.9mm	Material Size:	CR80 Cards
Air Pressure:	0.6MPa	Position Accuracy:	±0.2mm
Production (card Number):	2400-4800 Cards/hr.	Heating Temperature:	≤200ºC
Highlight:	financial card Hot Foil Stamping Machine , dual station hot foil stamping machine , Hot Foil Machine For Card Making

Product Description

Dual Station Financial Card Hot Foil Stamping Machine With Anti Fake Hologram Panel

Product Overview

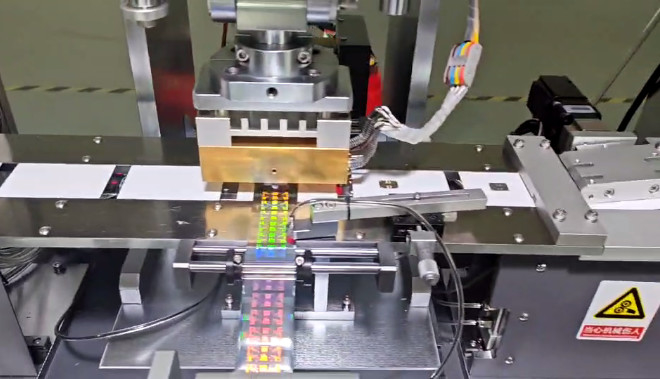

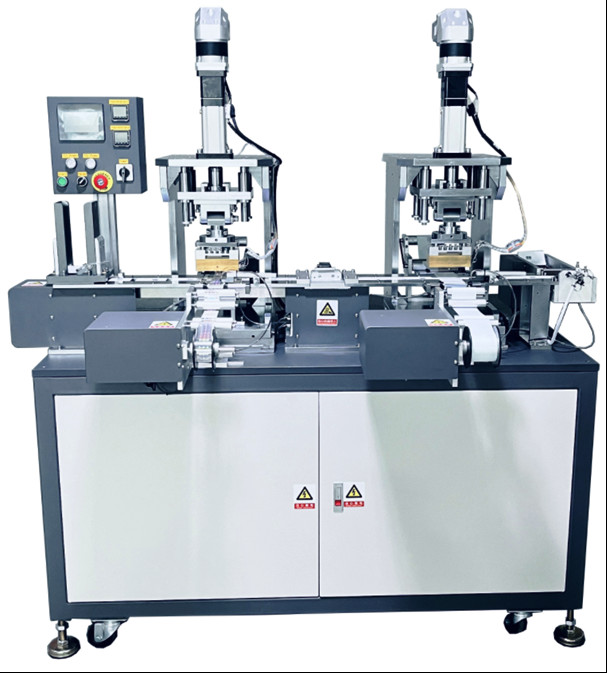

Automatic dual-station hot foil stamping machine designed for hologram panels and signature panels on financial cards, business cards, and VIP cards. Features PLC control with touch screen operation for precise, high-speed stamping.

Key Specifications

Material Thickness	0.7-0.9mm
Card Size	CR80 (54×85.6mm)
Production Speed	2000-3000 cards/hour
Position Accuracy	±0.2mm
Max Temperature	≤200ºC (±1.0ºC)
Power Requirements	AC 380V 3-phase, 2.6KW
Dimensions	1580×1080×1680mm (L×W×H)
Weight	900 kg

Advanced Features

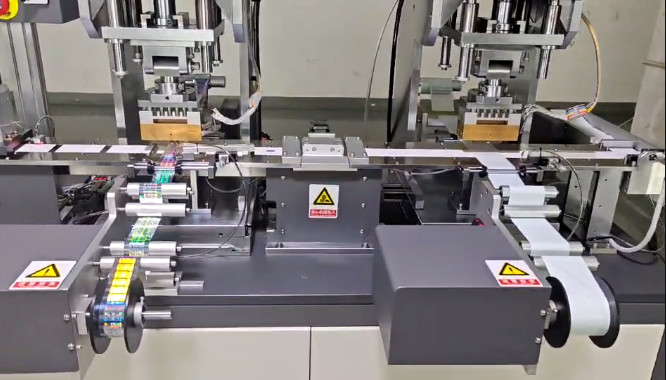

Dual-station design with card flip unit for single or double-sided stamping
High-quality servo motor ensures stable operation and adjustable speed
Precision PLC control with automatic fault detection and alarm system
Imported temperature controller for consistent stamping quality
Adjustable stepping distance for gilding film
Scratch-free card conveying system

Technical Parameters

Ideal for various PVC cards including financial cards, VIP cards, and business cards. Compatible with copperplate or zinc plate dies (dies not included).

Maximum stamping area: 48mm (width) × 80mm (length) on card surface.

Operation Details

The YHS-2 features intuitive touch screen controls and automated operation. Custom dies can be manufactured according to customer specifications for unique stamping requirements.

Note: Hot-stamping dies not included. Custom dies can be manufactured according to customer specifications.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YHS-2

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	20-25days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 25 days
