Name: Signature Panel Gold Silver PVC Card Hot Stamping Machine Automatic 3000 Cards/Hour
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHS-1
Availability: InStock

Detail Information

Output:	Around 3000 Cards Per Hour	Temperature Control:	±1.0ºC
Precision Of Film/foil Position:	±0.15mm	Precision Of Card Position:	±0.15mm
Production (card Number):	2400-4800 Cards/hr.	Power:	AC380V 50 Hz 3-phase 5-wire
Highlight:	PVC Card Hot Stamping Machine , Hot Stamping Machine Automatic

Product Description

Signature Panel Gold Silver Hot Stamping Machine for PVC Card Magnetic Stripe Card YHS-1

Key Specifications

Attribute	Value
Output	around 3000 cards per hour
Temperature control	±1.0ºC
Precision of film/foil position	±0.15mm
Precision of card position	±0.15mm
Production (card number)	2400-4800 cards/hr.
Power	AC380V 50 Hz 3-phase 5-wire

Product Overview

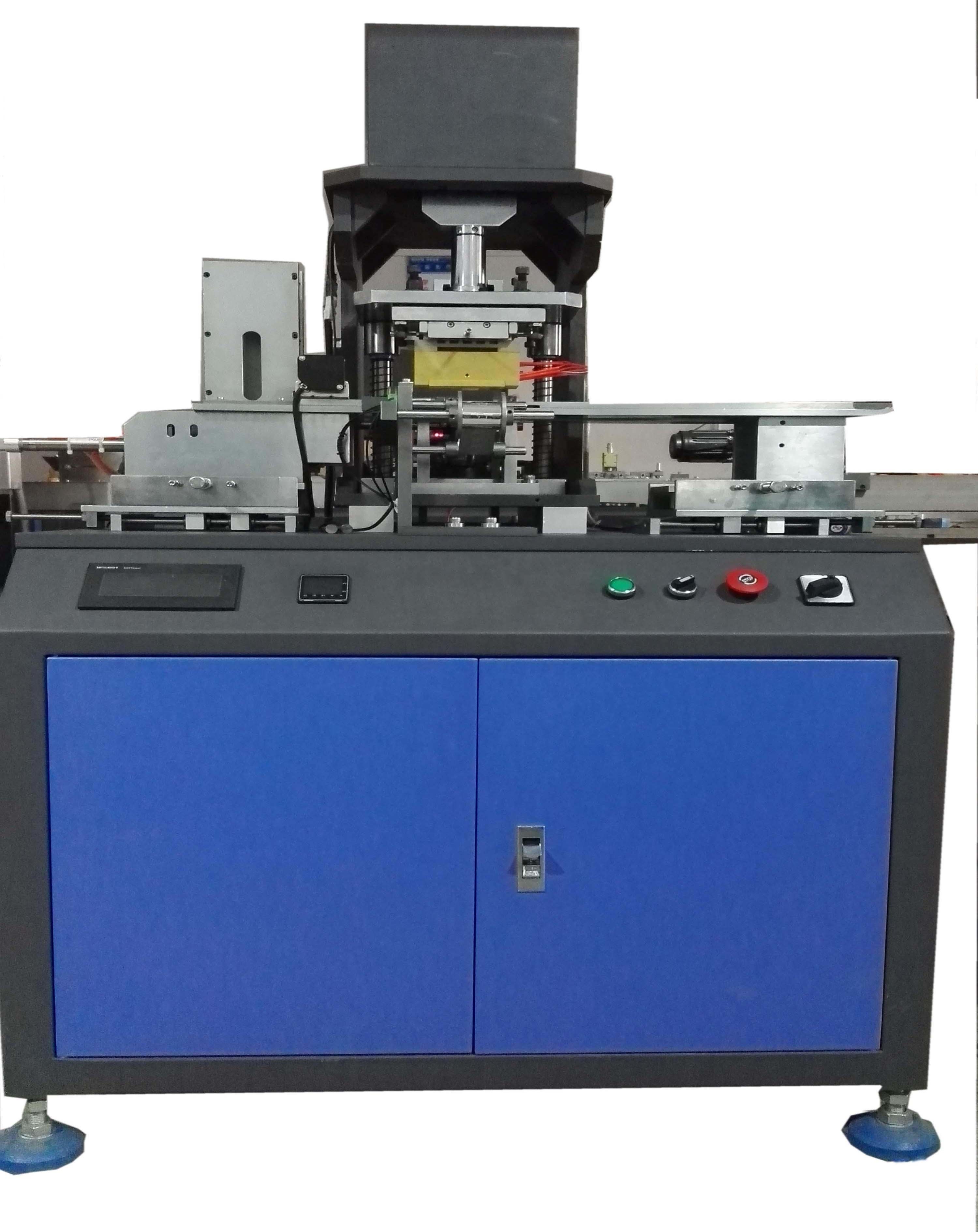

The Automatic PVC Card Hot Stamping Machine YHS-1 is specially designed for applying holograms, signature panels, and decorative foil stamping to plastic cards. Featuring PLC control with a user-friendly interface, this machine delivers high-speed operation with precise positioning and consistent stamping quality.

Key Features

High-quality servo motor ensures stable operation and adjustable running speed/pressing stroke
Adjustable stepping distance for gilding film
PLC-controlled automatic operation with fault detection and alarm system
Precision imported temperature controller for optimal stamping results
Compatible with various foil types including gold, silver, and scratch-off foils

Technical Specifications

Power supply	AC 220V, 50/60 Hz
Dimensions (L×W×H)	1200×820×1580mm
Weight	Approx. 390 kg
Control system	PLC + stepping system
Compressed air requirement	6 KG/cm², 30L/min
Production speed	3000 cards/hour
Card material compatibility	CR80 cards (0.50-0.85mm thickness)
Position accuracy	±0.2mm
Stamping temperature range	120-180°C (typically 140-150°C)
Maximum stamping area	48mm (width) × 80mm (length)

Additional Information

The machine does not include hot-stamping dies - custom dies can be manufactured according to customer specifications to accommodate different logo sizes and designs.

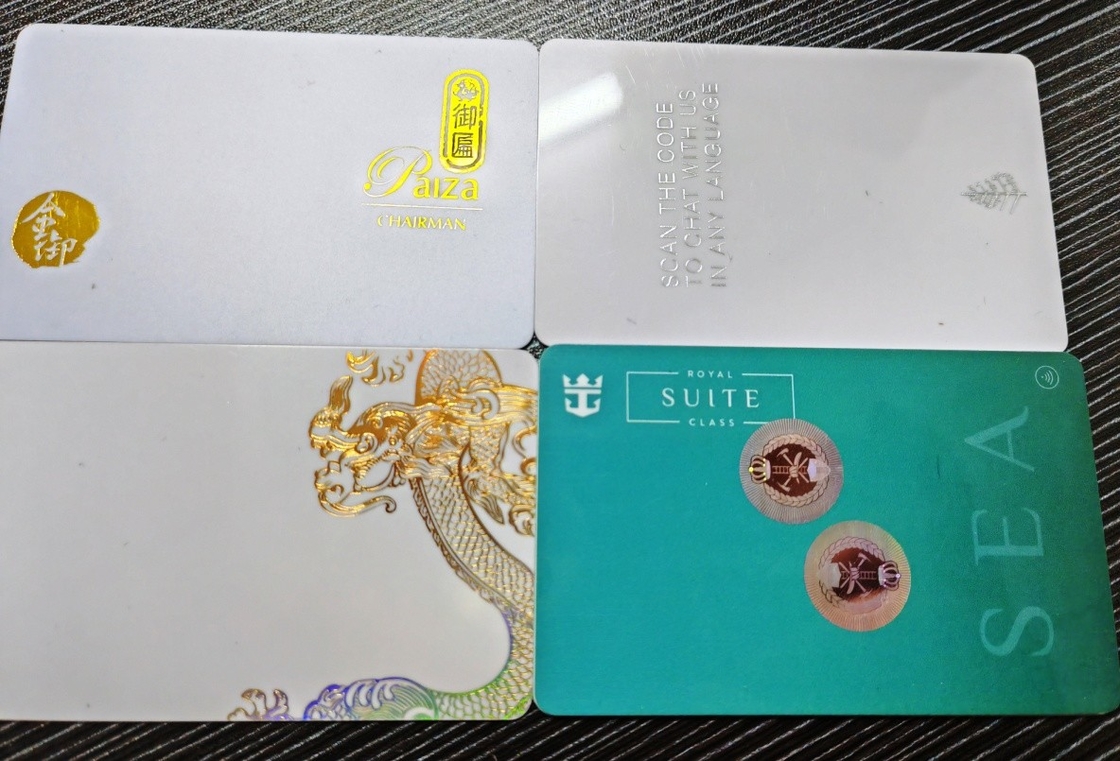

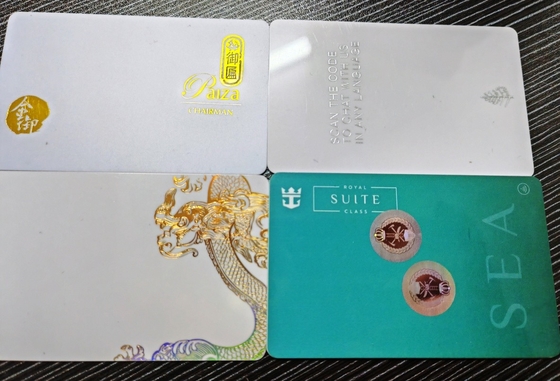

Ideal for various PVC card applications including VIP cards, business cards, and lottery tickets. Compatible with both copperplate and zinc plate dies, featuring easy plate replacement and high-speed precision stamping.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YHS-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	20-25days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 25 days
