Name: PVC Card Embossing And Tipping Machine AC380V 2.5KW With Touch Screen
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLE-1
Availability: InStock

Detail Information

Speed:	Over 6000 Cards/hr	Applicable Material:	0.6-1.0 Mm Thick Plastic CR80 Cards
Pressure Of Compressed Air:	≤5 KG/ Cm2	Power Supply:	AC380V 50/60Hz
Power:	5.2.5kW	Weight:	Around 400kg
Dimension:	L1200×W820×H1600 Mm
Highlight:	PVC Card Embossing And Tipping Machine , Embossing And Tipping Machine 2.5KW , PVC Card Tipping Machine

Product Description

Plastic PVC Card Embossing And Tipping Machine With Touch Screen Over 6000 Cards/Hr

Key Specifications

Attribute	Value
Speed	over 6000 cards/hr
Applicable material	0.6-1.0 mm thick plastic CR80 cards
Pressure of compressed air	≤5 KG/cm²
Power supply	AC380V 50/60Hz
Power	2.5kW
Weight	around 400kg
Dimension	L1200×W820×H1600 mm

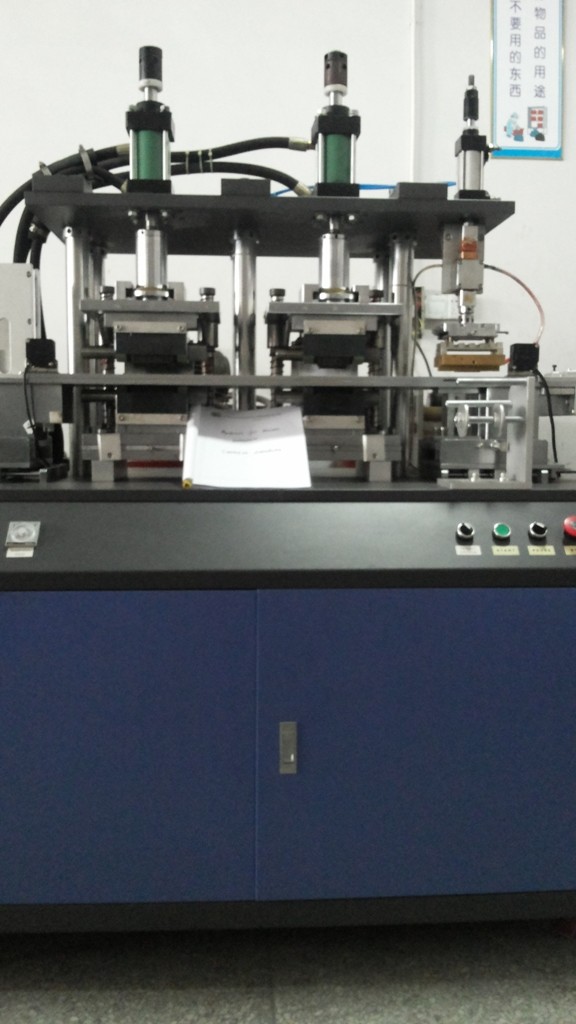

Card Embossing and Tipping Machine YLE-1

The YLE-1 model features one embossing station with one tipping station, capable of simultaneously embossing and tipping standard plastic cards at high speed. This best-selling machine is designed specifically for sequential number embossing (3 fixed words/symbols + maximum 16 numbers).

Key Features

Equipped with reliable Japanese servo motor for superior embossing quality and reduced maintenance
Incorporates Mitsubishi PLC, touch screen interface, and step-motion system for enhanced stability
Features durable SMC pneumatic components for long-lasting performance
Japanese special steel embossing molds with service life of tens of millions of cycles
Includes 2 sets of characters in different sizes (big and small)
Customizable embossed words/symbols available upon request

Also known as: Card Embossing and Bronzing Machine, Card Embossing and Tipping Machine, or Card Numbering Machine YLE-1.

Our Comprehensive Service

Pre-Sale Support

Professional consultation on materials, machine selection, and production feasibility
Optimal equipment recommendations based on your requirements
Efficient online support
Factory visits arranged with invitation letters
Detailed company and product documentation

During Sale

Regular production updates
Quality control supervision
Product acceptance procedures
Timely shipping arrangements

After-Sale Support

On-site installation guidance by engineers
Setup, troubleshooting, and operational training
Comprehensive operator training until satisfaction
Lifetime technical support
Regular follow-ups and feedback collection

Warranty & Guarantee

We provide a 1-year warranty period for our card machines. Our service department is available for prompt assistance with any issues.

Within the warranty period, we offer on-site support for complex technical problems that cannot be resolved remotely.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLE-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	30-40days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	2 sets per quarter
