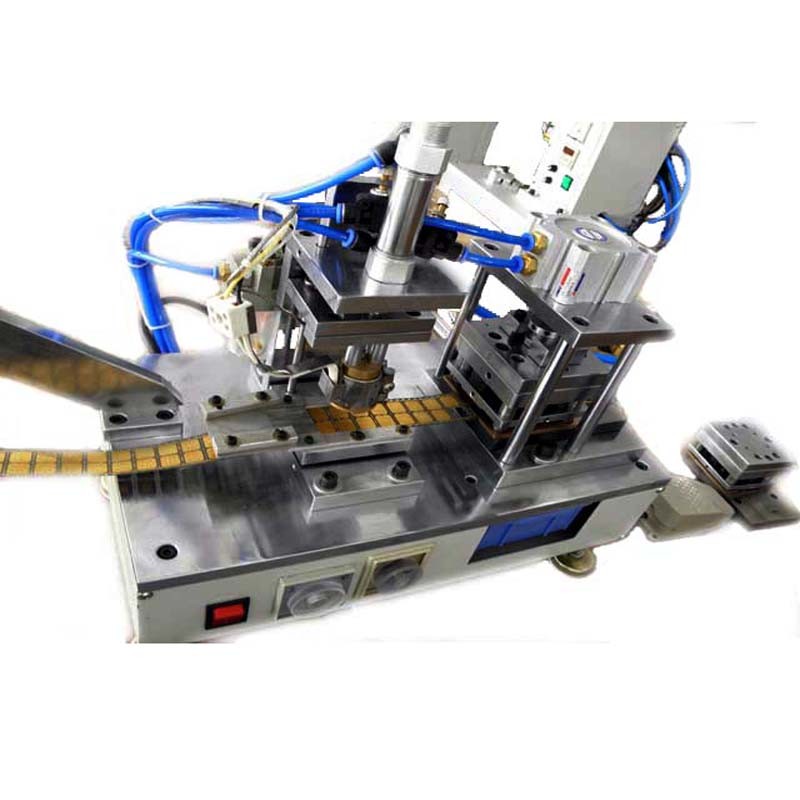

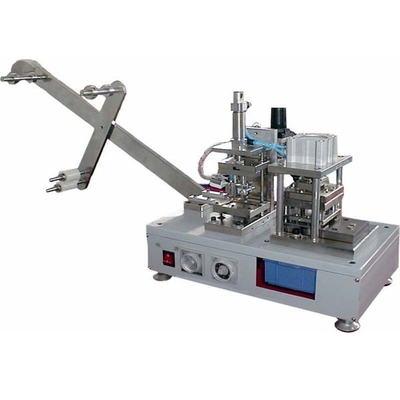

High Speed Contact Card Production Line IC Card Module Cutter Mitsubishi PLC Control

High Speed Contact Card Production Line IC Card Module Cutter Mitsubishi PLC Control
High Speed Contact Card Production Line IC Card Module Cutter Mitsubishi PLC Control High Speed Contact Card Production Line IC Card Module Cutter Mitsubishi PLC Control High Speed Contact Card Production Line IC Card Module Cutter Mitsubishi PLC Control High Speed Contact Card Production Line IC Card Module Cutter Mitsubishi PLC Control High Speed Contact Card Production Line IC Card Module Cutter Mitsubishi PLC Control High Speed Contact Card Production Line IC Card Module Cutter Mitsubishi PLC Control High Speed Contact Card Production Line IC Card Module Cutter Mitsubishi PLC Control
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YMC-1
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 1 plywood case
Delivery Time: 20-25 days
Payment Terms: D/P, D/A, T/T, Western Union
Supply Ability: 1 set per 25 days
Get Best Price
Chat Now
Detail Information
Speed: 4000-6000 Units Per Hour Material Model: M2/M3 Standard Chip Tape
Compressed Air: 6 Kg/cm2 Air Consumption: 10 L/min
Power: 0.4KW Control Mode: Mitsubishi PLC
Power Supply: AC220V 50/60HZ4 Weight: 30 KG
Dimension: L600×W300×H300mm
Highlight:

High speed Contact Card Production Line

,

Contact Card Production Line PLC Control

,

High speed IC Card Module Cutter

Product Description

Contact IC Card Module Cutter IC Chip Cutter IC Chip Tape Puncher IC Module Tape Cutter IC Card Machine

Contact IC Card Module Cutter YMC-1
IC chip cutter | IC chip tape puncher | IC module tape cutter | IC card machine | Smart card machine
Product Overview
The YMC-1 Contact IC Card Module Cutter is designed for cutting single IC chips from IC Module tape after hot melt glue is pressed to the IC module bottom side. The machine features relay unit control for easy maintenance and uses SMC pneumatic components for reliable operation.
Key Features
  • High-speed operation: 4000-6000 units per hour

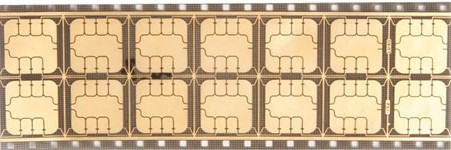

  • Compatible with M2/M3 standard chip tape
  • Mitsubishi PLC control system
  • Quality SMC pneumatic components
  • Compact footprint: 600×300×300mm
Technical Specifications
Attribute Value
Speed 4000-6000 units/hour
Material model M2/M3 standard chip tape
Compressed air 6 kg/cm²
Air Consumption 10 L/min
Power 0.4KW
Control mode Mitsubishi PLC
Power supply AC220V 50/60HZ
Weight 30 KG
Dimension L600×W300×H300mm

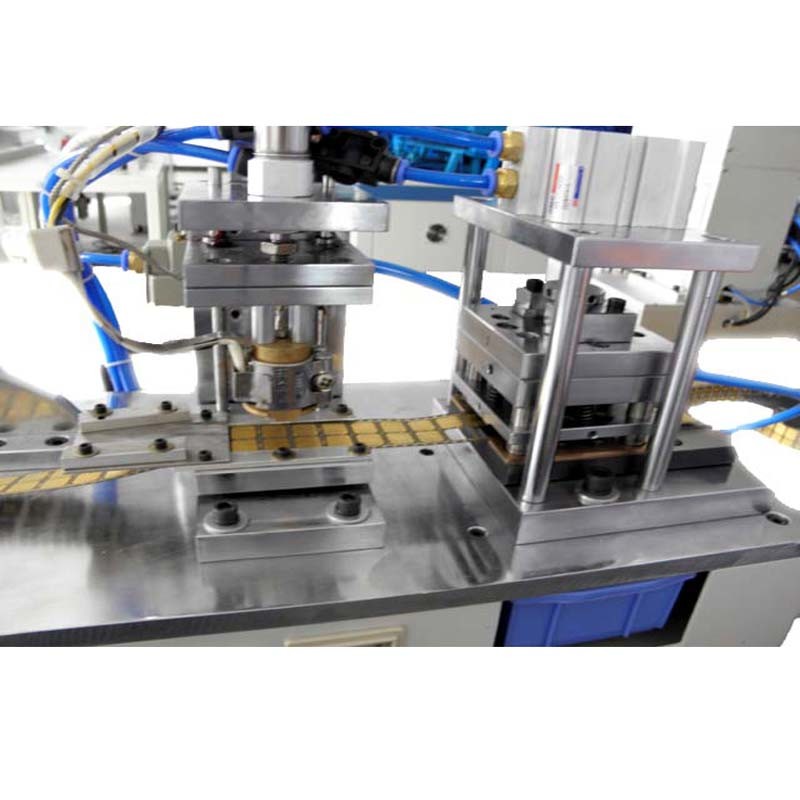

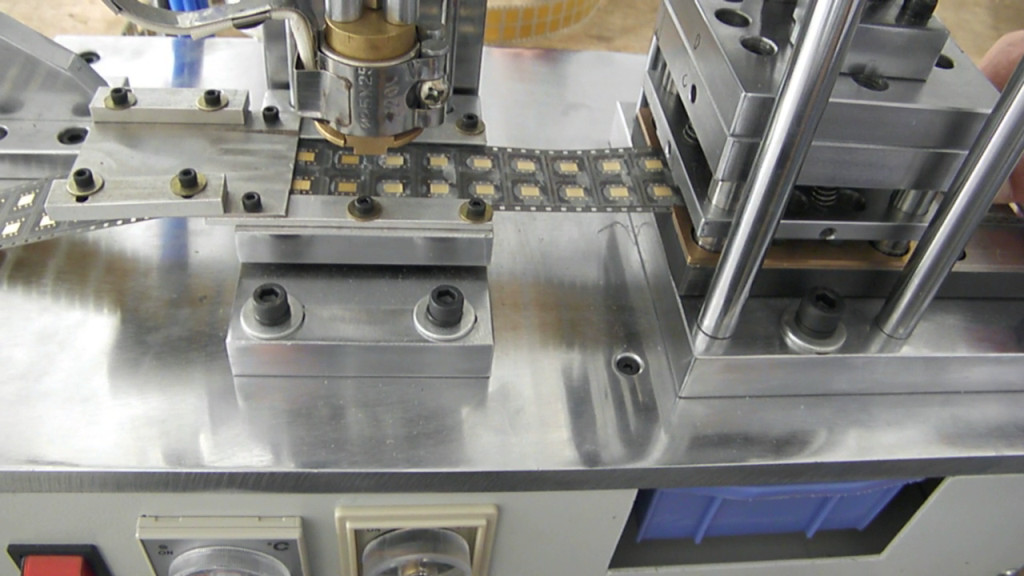

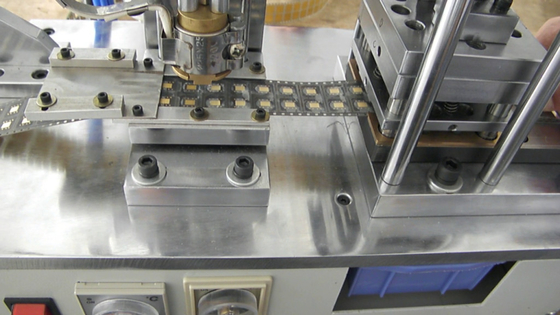

Operation Process
  1. Material releasing (glue tape wheel and chip reel wheel)
  2. Hot pressing station (sticks glue tape onto chip bottom by hot lamination)
  3. Chip cutting station (cuts chip tape into single pieces)
  4. Chip collection unit

Tag:

IC Card Implanting Machine,

Sim Card Punching Machine,

GSM Card Puncher
