PLC Servo System IC Card Milling And Embedding Machine 6.5KW General Power

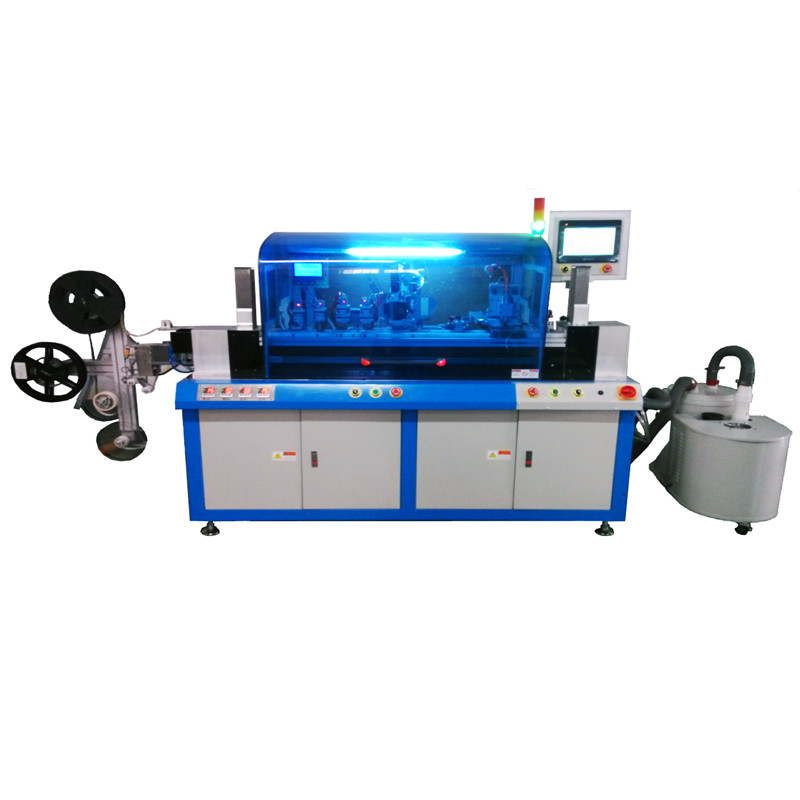

The All-in-one IC Card Milling and Embedding Machine YIME-1 integrates card body slot milling (1 milling station), chip cutting and placing, chip embedding (1 embedding station), and testing in one complete process.

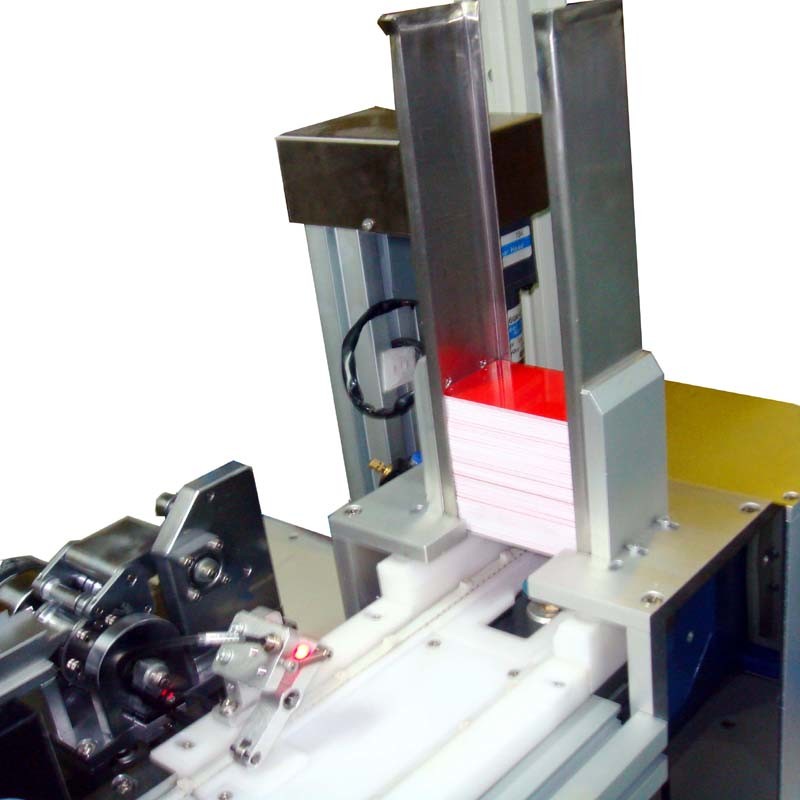

• Card feeding magazines (one)
• Overlapped card detection unit (one)
• Slot milling station (one)
• Dust absorber
• Chip tape convey
• Punch station (one)
• Chip pick-place station (one)
• Heating heads (two)
• Cooling head (one)
• ATR checking station (one)

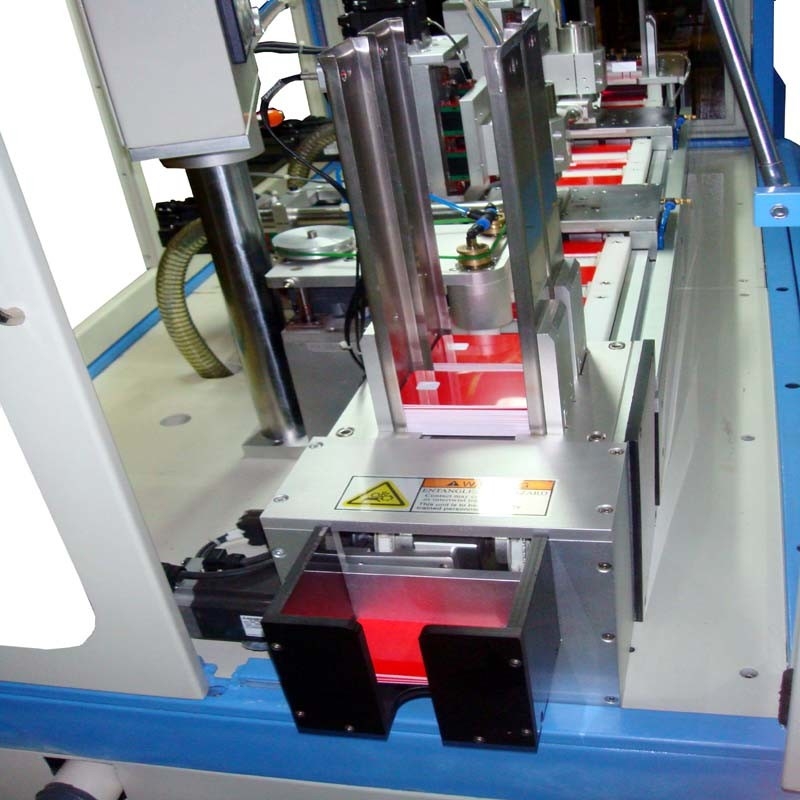

• Card Collection magazine (one)
• Bad card collection unit (one)

• Includes standard module milling programs with convenient parameter modification
• Milling stations can process different profiles as configured via touch screen

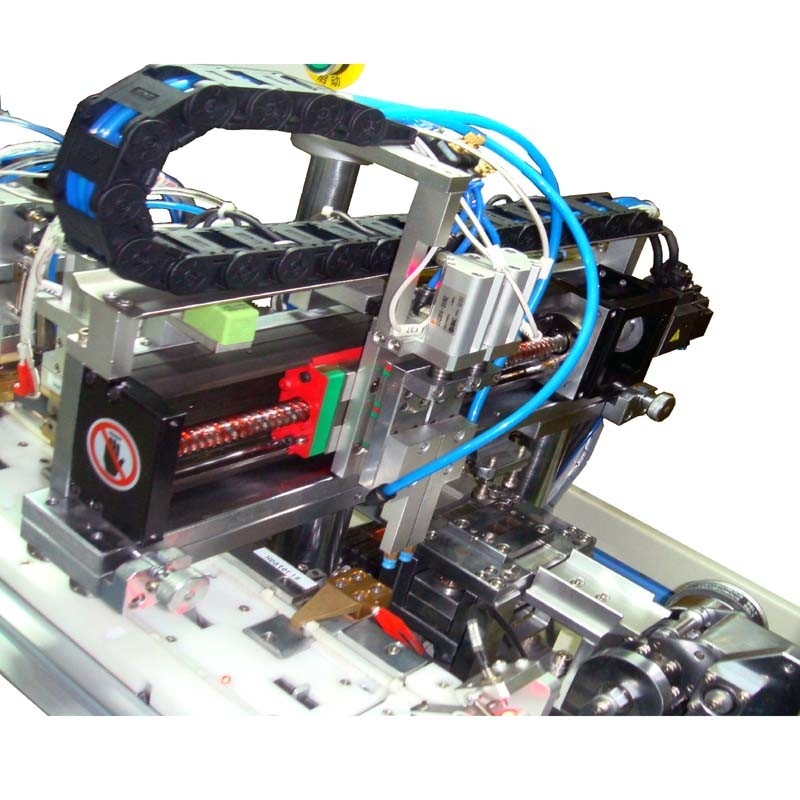

• Z-axis movement via guide and ball screw driven by high precision servomotor for accurate milling depth
• Special tool changing program enables fast and convenient tool replacement
• Card correction structure ensures high precision slot milling and chip embedding
• Servo motor with high precision guider and lead screw for stable module transfer
• Special hot press station design ensures tight module adhesion to plastic cards
• Double-card detection prevents incorrect card feeding
• PLC-controlled automatic operation with error alarms
