Name: Precise Contact Card Production Line High Speed IC Card Slot Milling Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YIM-4000+
Availability: InStock

Detail Information

Power:	AC 380V 50/60 HZ	Air Source:	6kg/cm² (dry)
Air Consumption:	Approx. 50L/min	Weight:	Approx 650Kg
Card Specification:	ISO CR80/IEC7810 Cards 54×85.6mm	Output:	3500~4500pcs/h
Highlight:	Precise Contact Card Production Line , Contact Card Production Line High Speed , IC Card Slot Milling Machine

Product Description

Contact Card Production Line IC Card Slot Milling Machine Precise and Speedy Slotter

Product Specifications

Power	AC 380V 50/60 HZ
Air source	6kg/cm² (dry)
Air consumption	Approx. 50L/min
Weight	Approx 650Kg
Card specification	ISO CR80/IEC7810 cards 54×85.6mm
Output	3500~4500pcs/h

Product Overview

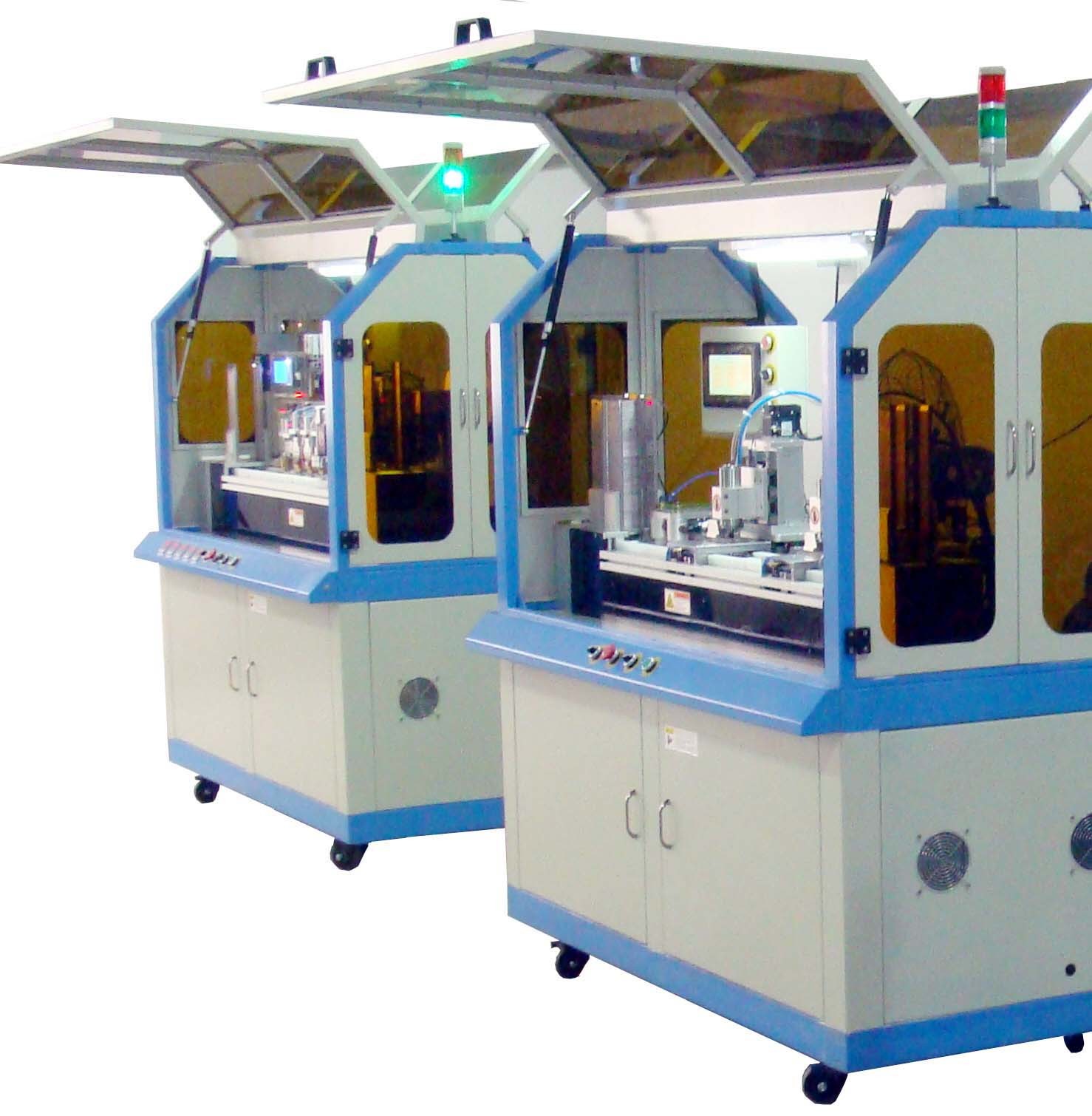

The Contact IC Card Slot Milling Machine YIM-4000+ is designed for precise and speedy milling of slots or cavities for IC chip implantation on plastic card surfaces. This robust machine features fully automatic operation with PLC control for easy parameter setting and stable performance.

Key Features

Designed for Smart Card (IC card, SIM card, banking card, etc.) cavity milling
Optional ATS (antenna touch system) for DI card cavity milling
Double-card conveying system for simultaneous milling
Three-shaft positioning control system with servo motor drive
Automatic alarm and stop for card overlapping or wrong milling depth
Mechanical positioning system with higher accuracy than traditional cylinder systems

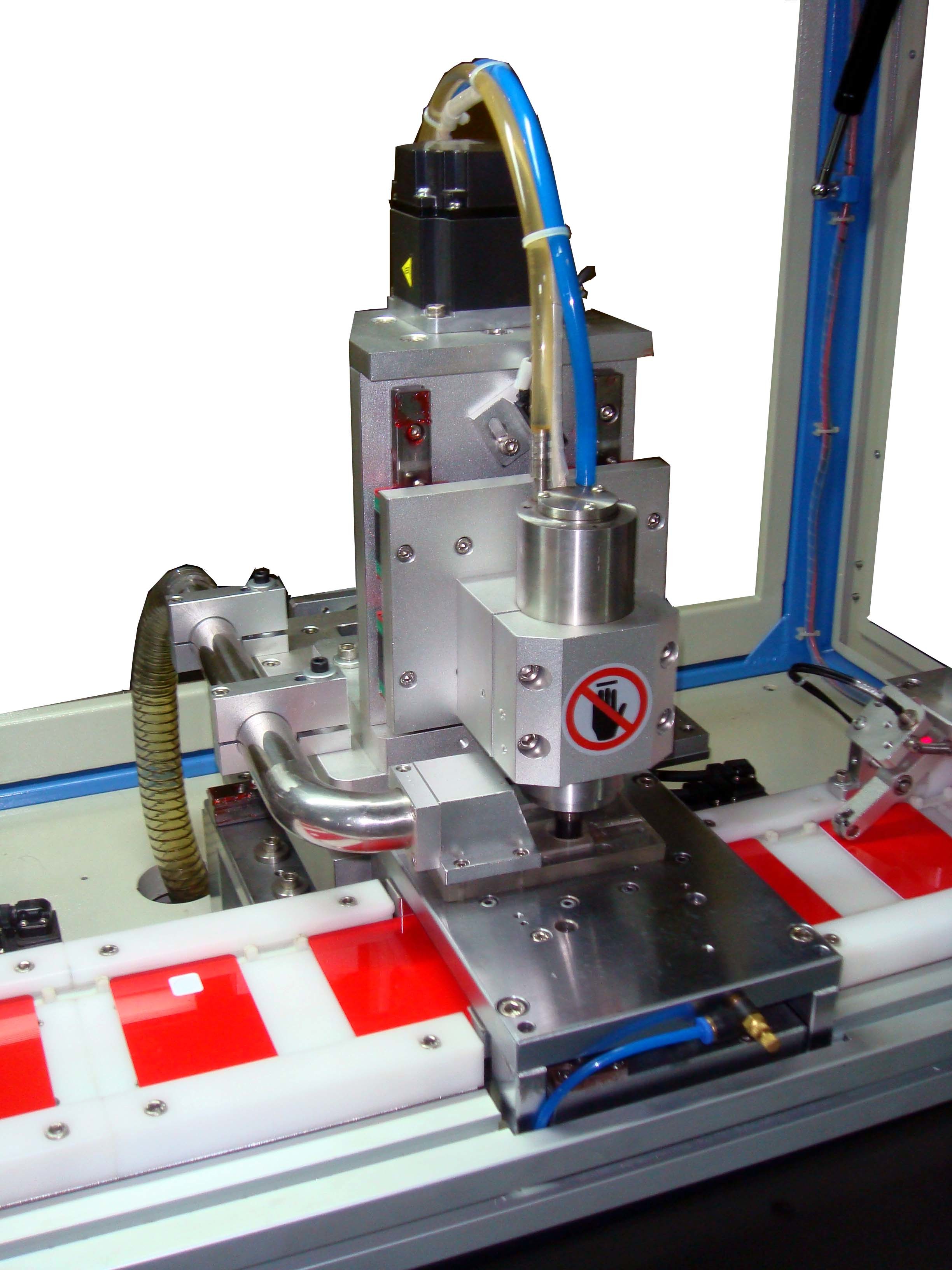

Water-cooled high speed spindle motor
Precision control: X/Y axis ±0.015mm, Z axis ±0.015mm, flatness ±0.005mm

Technical Specifications

Power supply	AC 380V 50/60 HZ
Total power	6.0 KW
Control method	PLC + Servo system
Dimension	Approx. L1750xW800xH1850 mm
Milling precision	X/Y: ±0.015mm Z: ±0.010mm
Operator	1 Person

Machine Stations & Functions

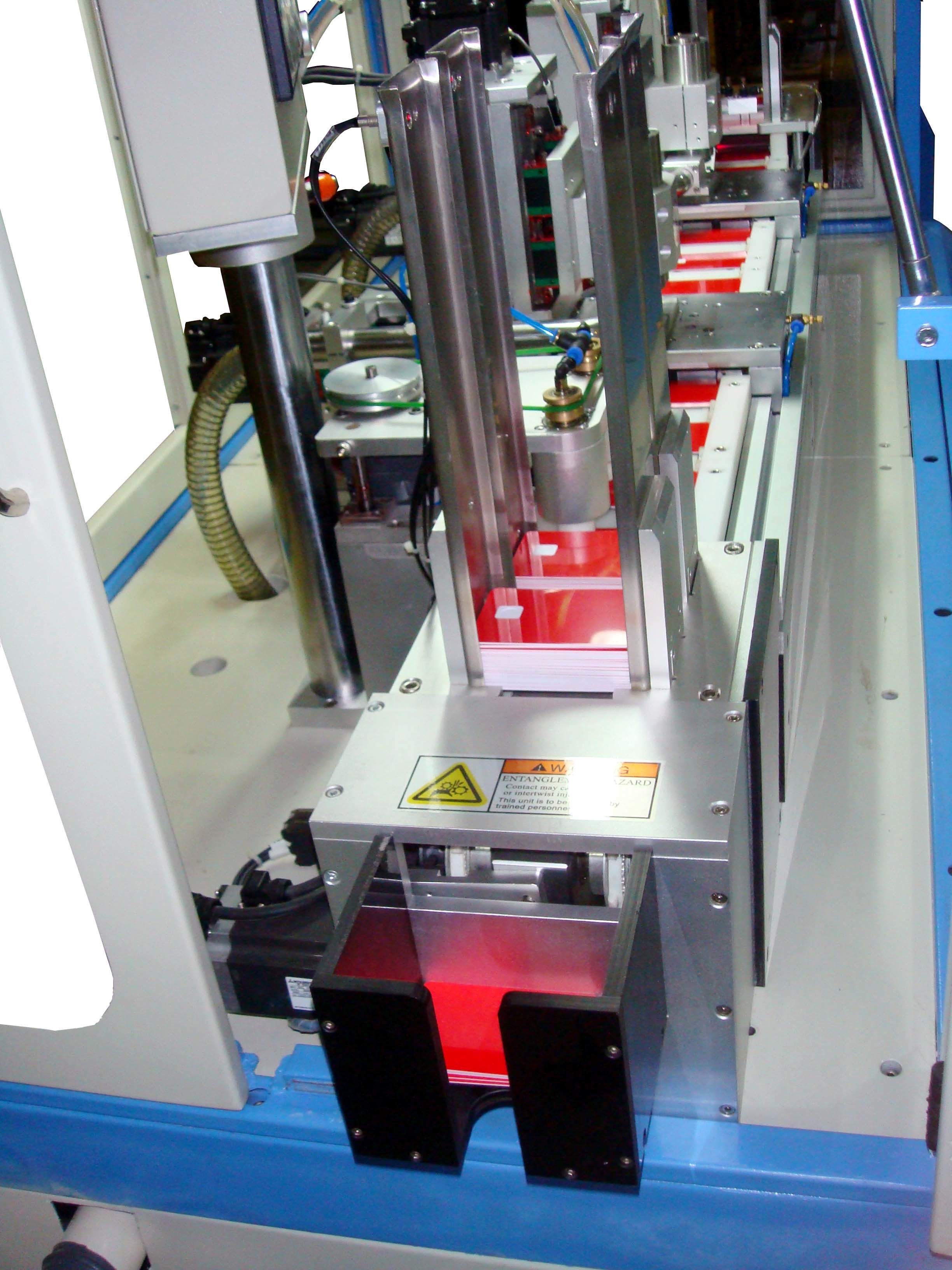

Card unloading magazines (2) - 500 ISO card capacity each
Double card detection
Card orientation detection (2 stations)

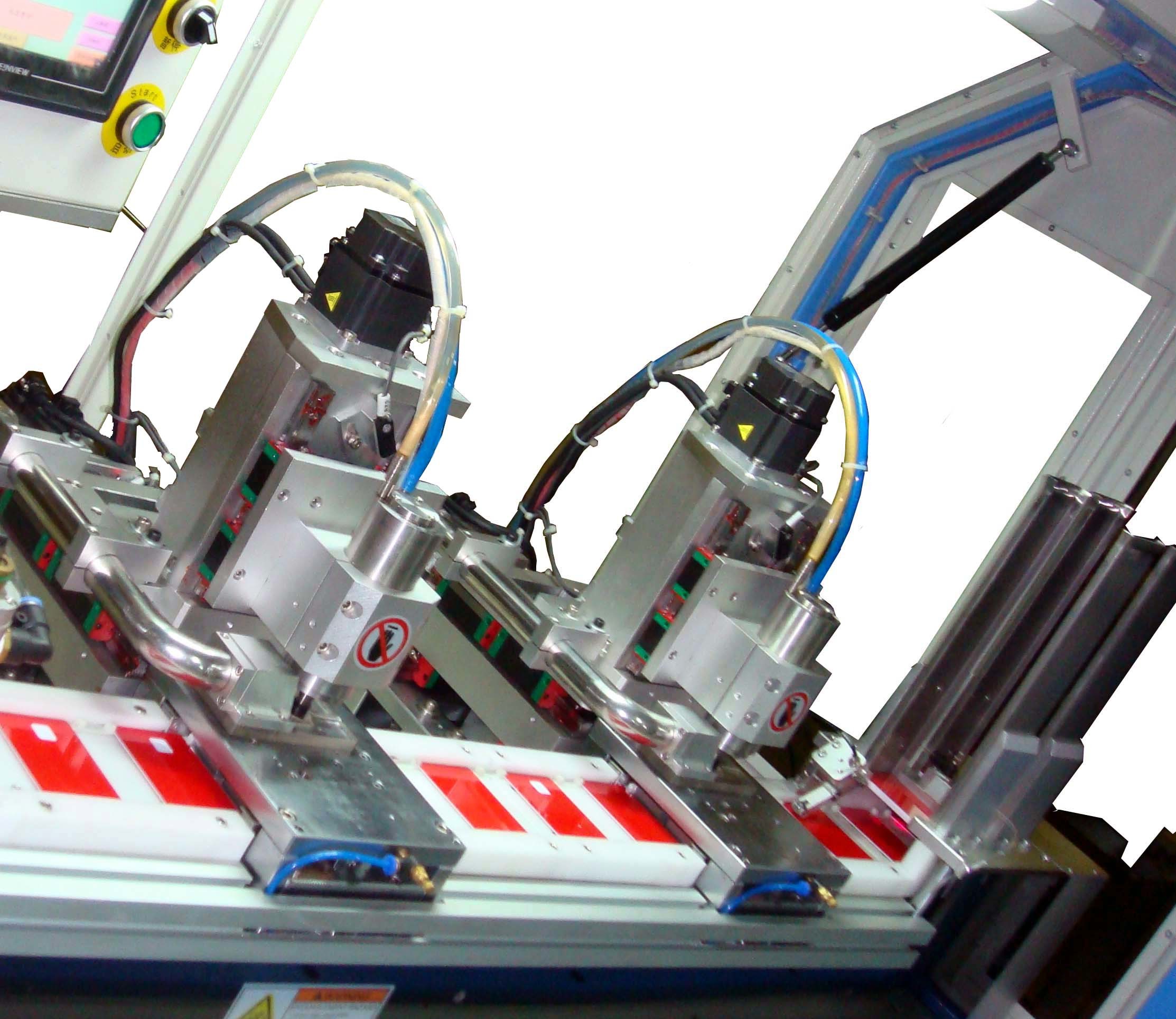

Precision milling stations (2) with X-Y-Z axis control
Optional ATS (antenna touch system)
Cleaning stations (2) for milling dust removal
Depth detection units (2)
Vacuum system for dust extraction
Water chiller system

Our Service & Support

We provide comprehensive support throughout the entire product lifecycle:

Pre-Sale Service

Professional consultation on machine selection and production line setup
Factory visits and feasibility analysis
Detailed product information and process explanation

After-Sale Support

On-site installation and commissioning support
Comprehensive operator training
Lifetime technical support
Regular follow-up and feedback collection

Warranty

1-year guarantee period: Includes efficient remote support and optional on-site service for complex issues.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YIM-4000+

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5 sets per quarter
