Mitsubishi Controlled Precision Contact Card Production Line IC Card Milling Machine

Mitsubishi Controlled Precision Contact Card Production Line IC Card Milling Machine
Mitsubishi Controlled Precision Contact Card Production Line IC Card Milling Machine Mitsubishi Controlled Precision Contact Card Production Line IC Card Milling Machine Mitsubishi Controlled Precision Contact Card Production Line IC Card Milling Machine
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YIM-1
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 1 plywood case
Delivery Time: 10-15days after receiving the prepayment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 set per 20 days
Get Best Price
Chat Now
Detail Information
Speed: 800-1000 Units Per Hour Air Consumption: 30 L/min.
Power Supply: AC220V 50/60HZ4 Power: 1.5kw
Weight: 180kgs Dimension: L600×W550×H1200mm
Highlight:

Mitsubishi Controlled Contact Card Production Line

,

Precision Contact Card Production Line

,

IC Card Milling Machine

Product Description

Mitsubishi Controlled Contact Card Production Line Touch Screen IC Card Milling Machine
Product Specifications
Attribute Value
Speed 800-1000 units per hour
Air Consumption 30 L/min.
Power supply AC220V 50/60HZ4
Power 1.5kw
Weight 180kgs
Dimension L600×W550×H1200mm
Product Overview

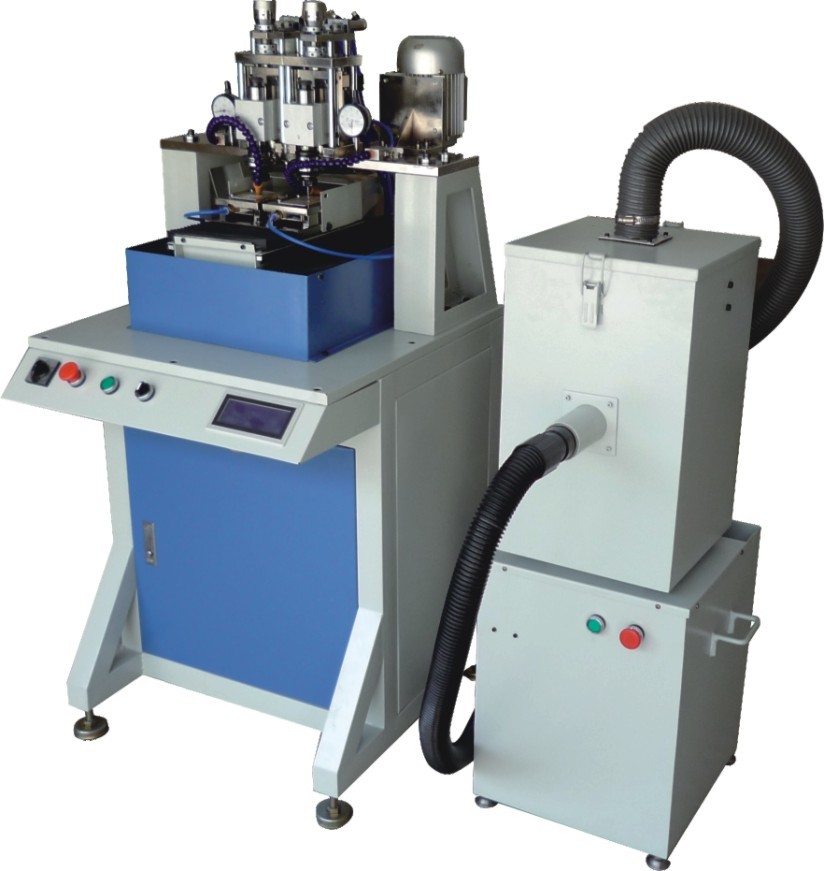

The Mitsubishi Controlled Touch Screen Manual IC Card Milling Machine YIM-1 is specifically designed for milling slots or cavities for contact IC chip fixing on IC card surfaces. This precision machine combines advanced control technology with robust construction for reliable card production.
Mitsubishi Controlled Precision Contact Card Production Line IC Card Milling Machine 0
Key Features

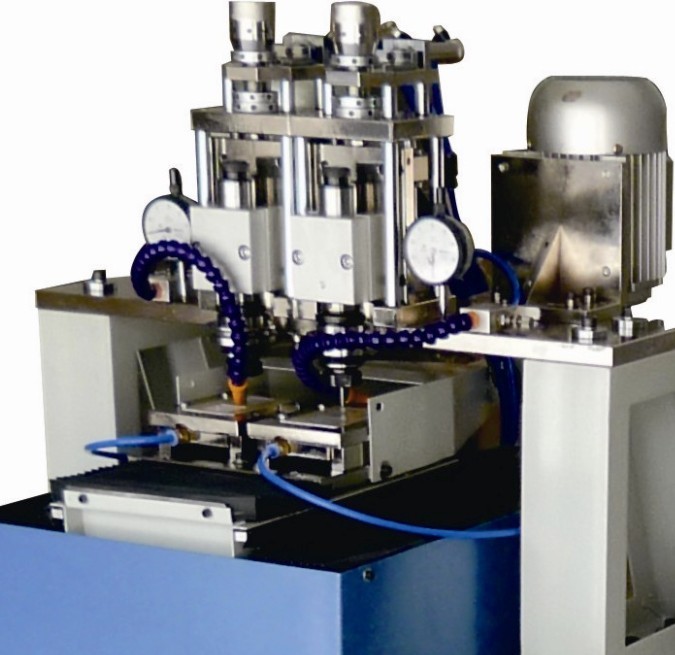

  • Mitsubishi dual-axis positioning module and touch screen control for reliable operation
  • High-quality SMC pneumatic components for enhanced durability
  • Intuitive touch screen interface for easy parameter adjustment
Mitsubishi Controlled Precision Contact Card Production Line IC Card Milling Machine 1
Technical Parameters
  • Production speed: 800-1000 units per hour
  • Compressed air requirement: 6 kg/cm²
  • Air consumption: 30 L/min
  • Power: 1.5 KW
  • Power supply: AC220V 50/60HZ4
  • Weight: 180 kg
  • Dimensions: 600mm (L) × 550mm (W) × 1200mm (H)
Mitsubishi Controlled Precision Contact Card Production Line IC Card Milling Machine 2
Applications
This precision milling machine is ideal for various card production applications including smart card manufacturing, IC card slot milling, and contact card production lines.
Mitsubishi Controlled Precision Contact Card Production Line IC Card Milling Machine 3
