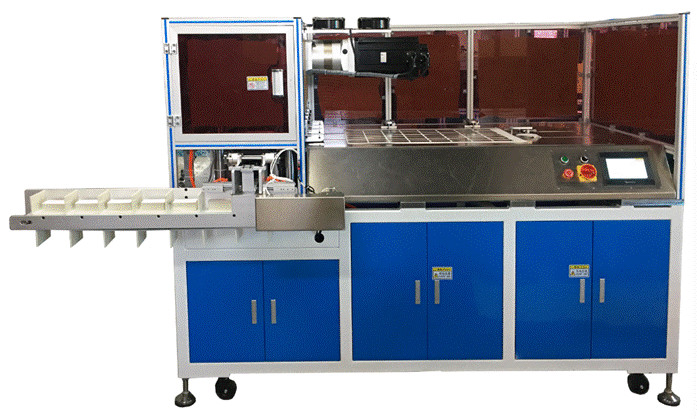

Name: Semi Automatic Poker Card Punching Sequential Sorting Collection Machine YLP-PC-600
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-PC-600
Availability: InStock

Detail Information

Speed:	400-600 Big Sheets/hour	Maximum Layout Size:	Max 540X780 Mm
Suitable Material:	PVC, ABS, Paper Card Etc	Control Mode:	PLC Program+ Servo System
Air Supply:	6 Kg/c㎡(no Water)	Punching Precise:	±0.15mm
Highlight:	semi auto poker card sorting machine , card punching sorting collection machine

Product Description

Semi Automatic Poker Card Punching Sequential Sorting Collection Machine YLP-PC-600

Product Specifications

Attribute	Value
Speed	400-600 big sheets/hour
Maximum layout size	Max 540X780 mm
Suitable material	PVC, ABS, paper card etc
Control mode	PLC program + servo system
Air supply	6 kg/c㎡(no water)
Punching precise	±0.15mm

Product Overview

The YLP-PC-600 Semi-automatic Poker Card Punching Machine features a touch screen interface with user-friendly operation, powered by a high-performance servo motor punching system. The servo-driven ball screw feeding mechanism ensures exceptional positioning accuracy (±0.10mm), while the specialized card collection structure enables sequential sorting of playing cards and plastic cards.

Key Features

High-precision imported servo-system feeding with adjustable punching point parameters
Premium ball screw guide mechanism for precise step feeding and extended service life
High-power servo motor punching system with adjustable speed and excellent thickness adaptability
Automatic cursor positioning mode ensures punching accuracy
PLC-controlled operation with real-time problem alerts and shutdown protection

Technical Parameters

Also known as: Semi-automatic Poker Playing Card Puncher YLP-PC-600 or Semi-automatic Poker Playing Card Die Cutter YLP-PC-600

Power supply	AC 380V/50 HZ	Suitable material	PVC, ABS, paper card
Power	7.5KW	Maximum layout	Max 540X780 mm
Air supply	6 kg/c㎡(no water)	Width	55~110mm
Punch precise	±0.15mm	Thickness	0.25~1.5 mm
Weight	1000Kg	Control mode	PLC program + servo system
Output	400~600 big sheets/hour	Dimension	L2000×W1200×H1650mm

Machine Characteristics

Servo motor power source provides quiet operation with stable pressure and adjustable punching speed
Advanced card collection system enables automatic sequential arrangement
Automatic discharge system for punched cards with stacking capability

Power supply	AC 380V/50 HZ	Sheet format	5X5/5X6/3X8/4X8 /11x5 optional
Total power	7.5KW	Control	PLC control + servo system
Air source	6 kg/cm2	Operators needed	1 person
Air consumption	Approx. 150L/min	Dimension	L2000×W1200×H1650mm
Punching pressure	about 2T-6T	Drive	Servo system
Weight	Approx. 1000KG	Punched card size	Standard size cards
Punching accuracy	±0.15mm	Productivity	10000~2000PCS/H
Applicable card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-PC-600

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	around 30-40days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	5 sets per quarter
