Name: Semi Automatic Poker Card Playing Card Puncher Sequential Sorting Collection Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-PC-600
Availability: InStock

Detail Information

Speed:	400-600 Big Sheets/hour	Maximum Layout Size:	Max 540X780 Mm
Suitable Material:	PVC, ABS, Paper Card Etc	Control Mode:	PLC Program+ Servo System
Air Supply:	6 Kg/c㎡(no Water)	Punching Precise:	±0.15mm
Highlight:	Semi Automatic Playing Card Puncher , Poker Playing Card Sorting Machine , Poker Playing Card Puncher

Product Description

Semi Automatic Poker Card Playing Card Puncher Sequential Sorting Collection Machine

Product Specifications

Attribute	Value
Speed	400-600 big sheets/hour
Maximum layout size	Max 540X780 mm
Suitable material	PVC, ABS, paper card etc
Control mode	PLC program + servo system
Air supply	6 kg/c㎡(no water)
Punching precise	±0.15mm

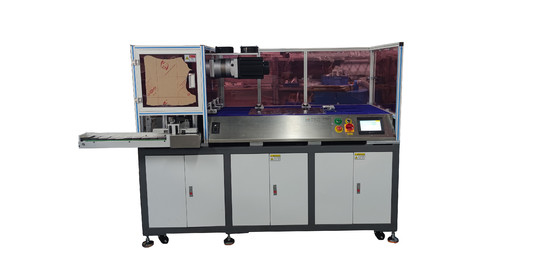

Semi Automatic Poker Card Puncher Machine YLP-PC-600

Product Overview

This machine features a touch screen with intuitive interface operation and utilizes a high-power servo motor for punching power. The servo motor-driven ball screw ensures precise feeding and punching with positioning accuracy of less than ±0.10mm. The professional card collection structure design makes it ideal for sequential sorting of playing cards and plastic cards.

Key Features

High-quality imported servo-system feeding system with adjustable punching point parameters
Precision ball screw guide for step feeding with long service life
High-power servo motor provides stable punching power with adjustable speed
Automatic search cursor positioning punching mode ensures high accuracy
PLC program control enables automatic operation with problem alerts and shutdown

Technical Specifications

★ Main Technical Parameters

Power supply	AC 380V/50 HZ
Power	7.5KW
Air supply	6 kg/c㎡(no water)
Punch precise	±0.15mm
Weight	1000Kg
Output	400~600 big sheets/hour
Suitable material	PVC, ABS, paper card
Maximum layout	Max 540X780 mm
Width	55~110mm
Thickness	0.25~1.5 mm
Control mode	PLC program + servo system
Dimension	L2000×W1200×H1650mm

Product Characteristics

Servo motor power source with low noise and stable pressure

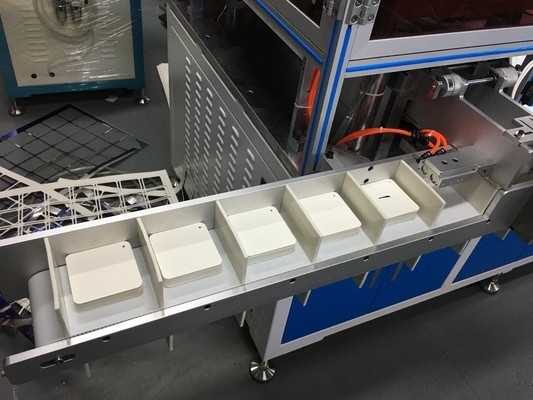

Advanced card collecting system for automatic sequential arrangement

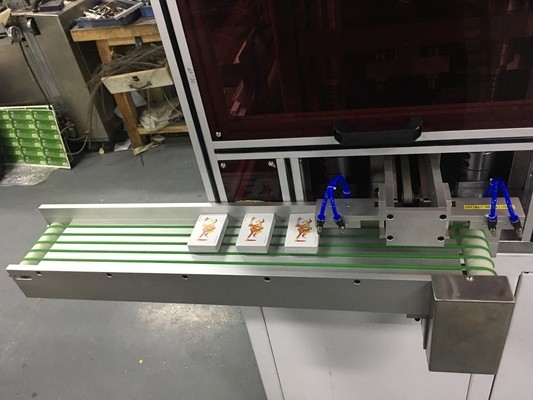

Automatic discharge of punched cards with stacking collection

Power supply	AC 380V/50 HZ
Total power	7.5KW
Air source	6 kg/cm2
Air consumption	Approx. 150L/min
Punching pressure	about 2T-6T
Weight	Approx. 1000KG
Punching accuracy	±0.15mm
Sheet format	5X5/5X6/3X8/4X8 /11x5 optional
Control	PLC control + servo system
Operators needed	1 person
Dimension	L2000×W1200×H1650mm
Drive	Servo system
Punched card size	Standard size, such as name card, membership card
Productivity	10000~2000PCS/H
Applicable card materials	Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-PC-600

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	around 30-40days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	5 sets per quarter
