Name: Touch Screen Poker Playing Card Puncher PVC Paper Card Cutting Machine YLP-APC-800
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-APC-800
Availability: InStock

Detail Information

Production Speed:	600~800 Big Sheets/hour	Interface:	Man-machine Interface
Applicable Material:	PVC, ABS, PETG And Paper	Punching Precise:	±0.10mm
Power Supply:	AC380V 50/60HZ	Total Power:	7.5 KW
Highlight:	full auto pvc card cutting machine , touch screen paper card cutting machine , PVC Playing Card Puncher

Product Description

Touch Screen Poker Playing Card Puncher PVC Paper Card Cutting Machine YLP-APC-800

Product Specifications

Attribute	Value
Production Speed	600~800 big sheets/hour
Interface	Man-machine interface
Applicable Material	PVC, ABS, PETG and paper
Punching Precision	±0.10mm
Power Supply	AC380V 50/60HZ
Total Power	7.5 KW

Product Overview

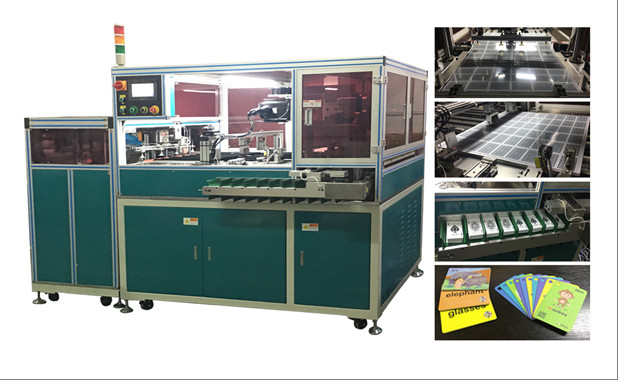

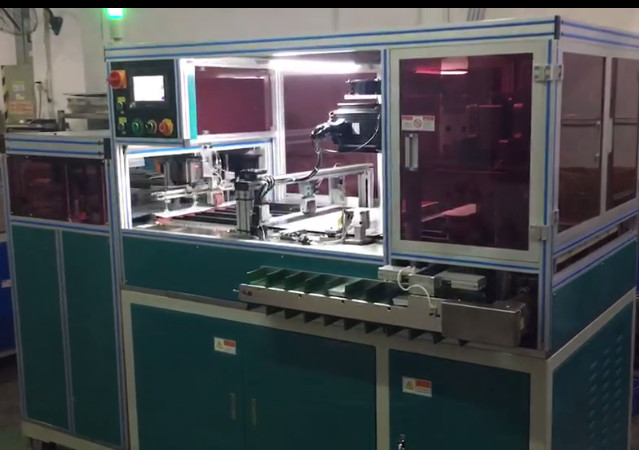

The Full Automatic Poker Playing Card Puncher PVC Paper Card Cutting Machine YLP-APC-800 features a touch screen with user-friendly interface operation. It utilizes a high-power servo motor for punching power and combines high-sensitivity laser sensors with stepping systems for precise vertical and horizontal positioning, achieving accuracy within ±0.10mm.

Key Features

High sensitivity photoelectric sensors and premium imported servo system for adjustable punching point parameters
Imported ball screw guide for high-precision step feeding with long service life
Automatic sheet suction and feeding system reduces labor and improves efficiency
Low-noise servo motor with stable power and adjustable punching speed
Flexible punching modes: automatic search cursor positioning or side positioning
PLC program control with automatic operation, problem alarm, and solution display

Technical Parameters

Parameter	Specification
Power Supply	AC 380V/50 HZ
Suitable Material	PVC, ABS, paper card
Power	7.5KW
Output	600~800 big sheets/hour
Air Supply	6 kg/cm² (no water)
Control Mode	PLC program + servo system
Punching Precision	±0.10mm
Suitable Layout	6x9 (570×585mm), 5x11 (480 x 690mm)
Operators Needed	1 person
Dimensions	L2300×W900×H1750mm (varies by punching format)
Weight	1200Kg

Machine Characteristics

High-sensitivity sensor with servo motor for adjustable, precise punching point positioning
Hydraulic power source with low noise, stable pressure, and adjustable punching speed

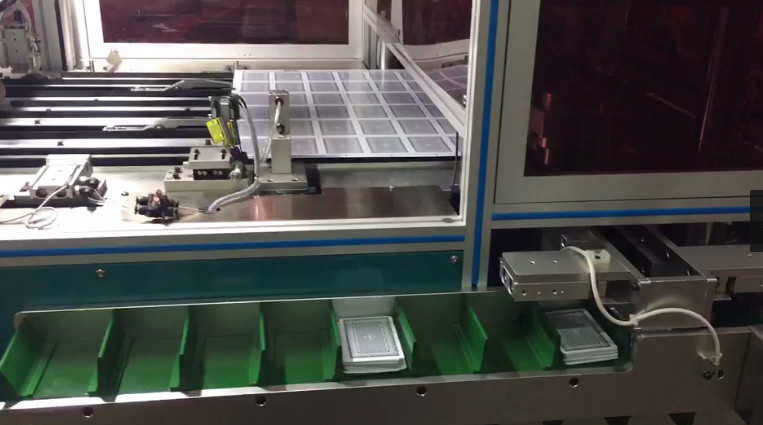

Advanced card collecting system for automatic arrangement and collection
Automatic discharge of punched cards with stacking and collection capability

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-APC-800

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	around 30-40days
Payment Terms:	T/T,Western Union,D/P,D/A,Western Union
Supply Ability:	5 sets per quarter
