Name: High Speedy CR80 Die Cutters For Card Making 5 Up Mould Smart Card Puncher Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-5
Availability: InStock

Detail Information

PVC Sheet Size:	5×5 Layout	Productivity:	12000-14000 Cards Per Hour
Material Used:	PVC, ABS, PETG, Paper Etc.	Punching Precision:	+/-0.01mm
Power Supply:	AC380V 50/60HZ	Power Rating:	3.5KW
Highlight:	CR80 Card Puncher Machine , Smart Card Puncher Machine , CR80 Die Cutters For Card Making

Product Description

High Speedy CR80 Die Cutters For Card Making 5 Up Mould Smart Card Puncher Machine

Key Specifications

PVC sheet size	5×5 layout
Productivity	12000-14000 cards per hour
Material used	PVC, ABS, PETG, paper etc.
Punching precision	±0.01mm
Power supply	AC380V 50/60HZ
Power rating	3.5KW

Product Overview

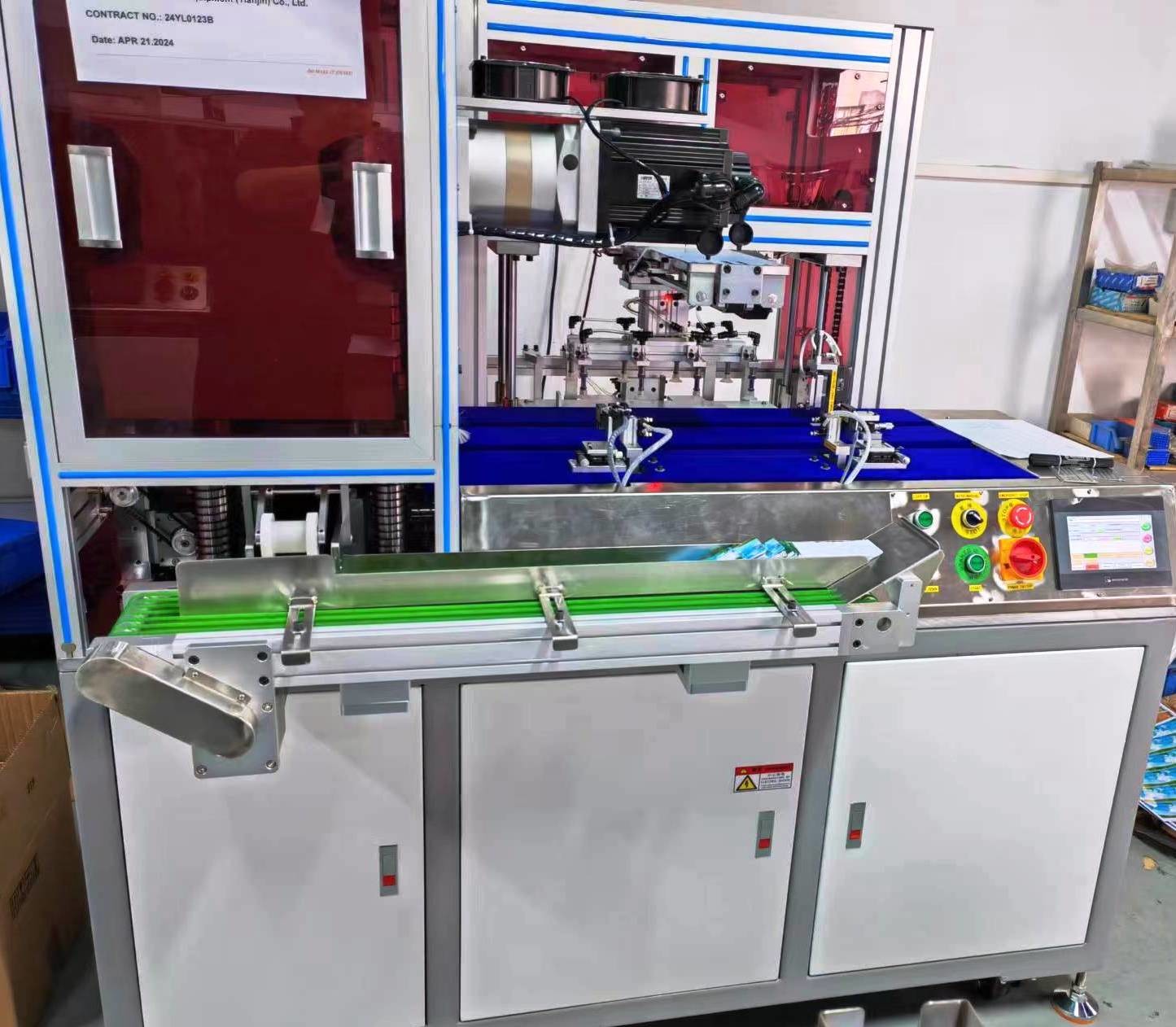

The Speedy CR80 Card Die Cutting 5-up Mould Smart Card Punching Machine YLP-5 is an economical automatic card puncher featuring compact structure, reliable performance, and full automatic operation. Controlled by PLC program with bilingual touch screen interface, it delivers high-speed precision punching for CR80 cards.

Key Features

Precision punching of laminated plastic sheets (5×5 layout) into ISO CR80 cards
High-quality PLC, touch screen and servo system for machine stability

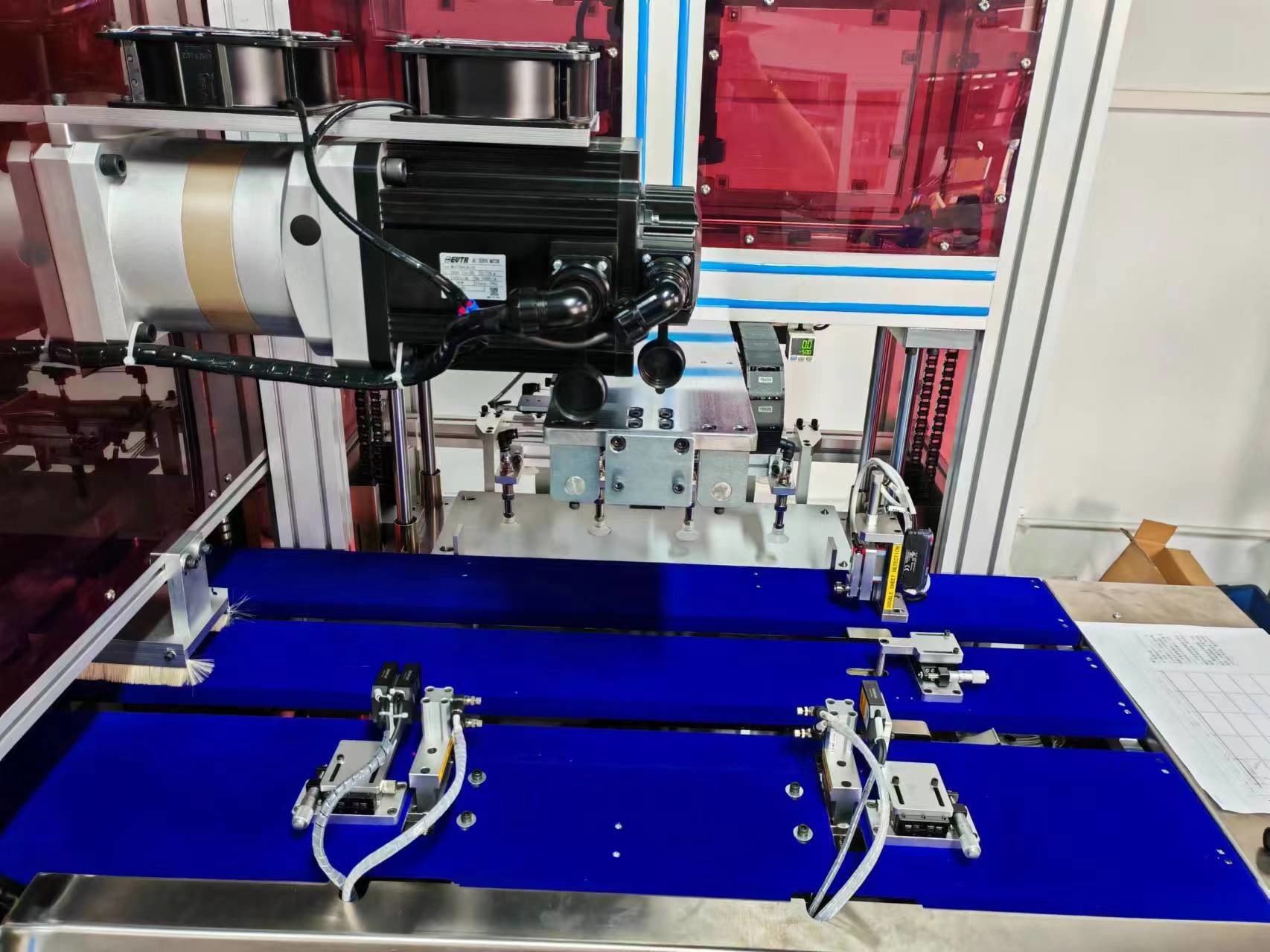

Guide screws ensure precise card conveying and punching
Reliable servo motor system for low noise and stable pressure control

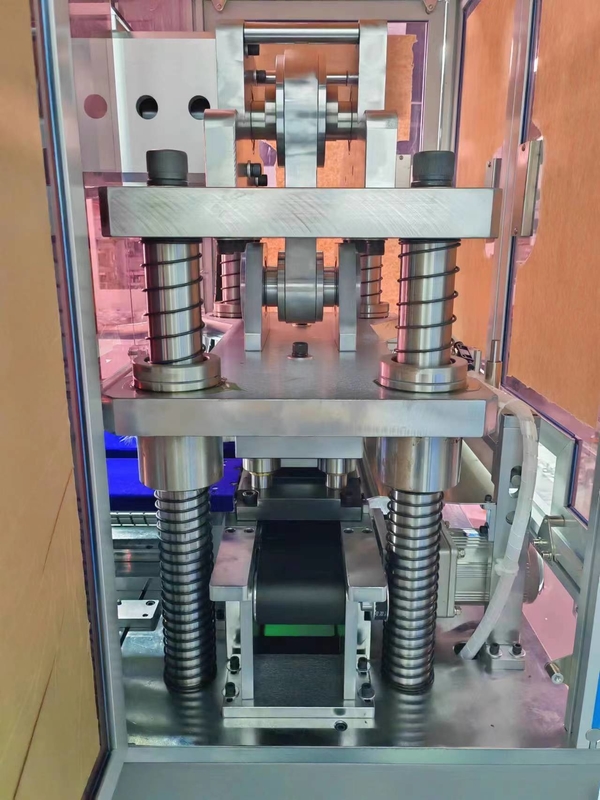

Specially designed punching mould for perfect results and long service life

Technical Specifications

Power supply	AC 380V/50 HZ
Total Power	3.5KW
Control mode	PLC programming + servo system
Air Source	6 kg/c㎡(dry)
Operator number	1 person
Dimension	L1700×W850×H1500mm
Weight	About 800Kg
Punching precision	±0.10mm
Max. Speed	12000~14000 cards/hour

Included Spare Parts

SN	Part name	Part model	Qty.
1	Electromagnetic Valve	4V110	1pc
2	Relay14PIN DC24V	MY4N-J DC 24V	3pcs
3	Fuse	10A	5pcs
4	Fuse holder	RT18-32	1pc
5	Synchronous belt	10*200XL	1pc
6	Screw driver		1 set
7	Open spanner		1 set

Our Service & Support

Pre-Sale Service

Professional suggestions for raw material matching and machine selection
Device model recommendation based on your requirements
Efficient on-line service
Factory visits arranged with invitation letter

After-Sale Service

On-site engineer support for installation and setup
Comprehensive operator training
Lifetime technical support
Regular follow-up and feedback collection

Warranty

We provide one year guarantee period for our card machines. Within this period, we offer efficient service support and can arrange on-site assistance for unsolvable technical issues.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-5

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T,Western Union,MoneyGram,Western Union
Supply Ability:	5 sets per quarter
