Name: 5.5KW Automatic Card Punching Machine Customized Shape Card Die Cutting Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLFP-SP-XY
Availability: InStock

Detail Information

Power Supply:	AC 380V/50 HZ	Suitable Material:	PVC, ABS, Paper Card Etc.
Power:	5.5KW	Maximum Layout:	350X600mm(Max)
Air Supply:	6 Kg/c㎡(no Water)	Output:	4000~6000 Pcs /hour(depends On The Punch Head Number)
Air Consumption:	About 70L/min	Control Mode:	PLC Program+ Servo System
Weight:	850kg	Number Of Operators:	1 Person
Punch Precise:	±0.10mm	Dimensions:	L1700×W1080×H1600mm
Highlight:	5.5KW Card Punching Machine , Automatic Card Punching Machine , Customized Card Die Cutting Machine

Product Description

5.5KW Automatic Card Punching Machine Customized Shape Card Die Cutting Machine

Product Specifications

Attribute	Value
Power supply	AC 380V/50 HZ
Suitable material	PVC, ABS, paper card etc.
Power	5.5KW
Maximum layout	350X600mm(Max)
Air supply	6 kg/c㎡(no water)
Output	4000~6000 pcs/hour (depends on punch head number)
Air consumption	About 70L/min
Control mode	PLC program + servo system
Weight	850kg
Number of operators	1 person
Punch precise	±0.10mm
Dimensions	L1700×W1080×H1600mm

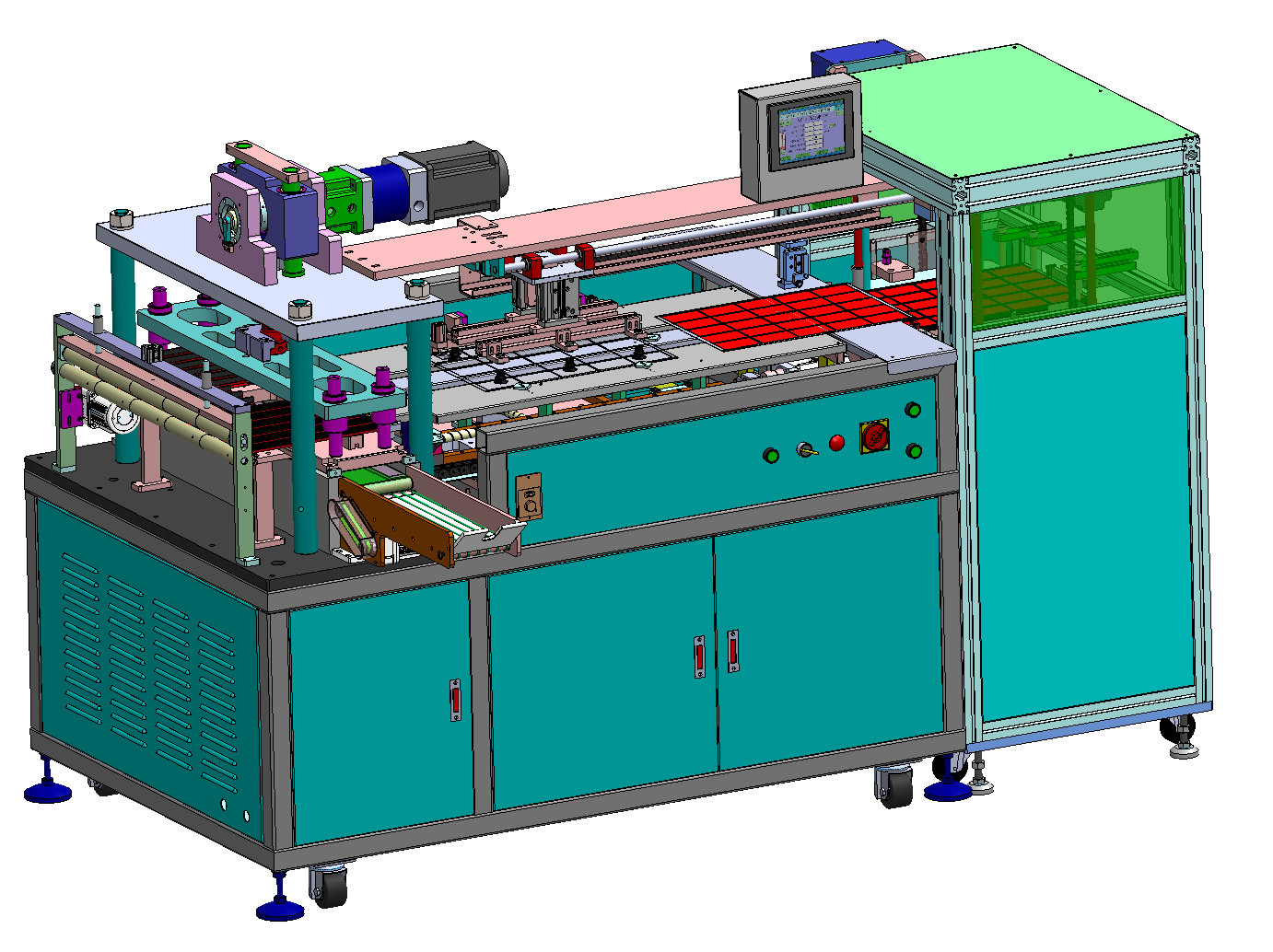

Full Automatic Special Shape Card Puncher YLFP-SP-XY

This industrial-grade machine is designed for punching large laminated sheets into custom-shaped cards (special shapes, abnormal shapes, or customized designs) with full automation. It features a pick-and-place unit for sheet handling and utilizes a touch screen interface with intuitive operation.

Key Features

Dual servo-driven screw modules for precise X and Y axis positioning
High-power servo motor ensures quiet operation, stable output, and adjustable punching speed
Stores 10 layout position parameters for quick product changeovers
PLC program control enables automatic operation with error alerts
Eliminates need for pre-cutting materials - adjusts to printed sheet layouts
Superior performance when punching cards of varying thicknesses

Technical Parameters

Power supply	AC 380V/50 HZ	Suitable material	PVC, ABS, paper card etc.
Total power	5.5 KW	Maximum layout	350X600mm(Max)
Air supply	6 kg/c㎡(no water)	Output	4000~6000 pcs/hour
Air consumption	About 70L/min	Control mode	PLC program + servo system
Weight	850kg	Operator	1 Person
Punch precise	±0.10mm	Dimensions	L1700×W1080×H1600mm

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLFP-SP-XY

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	30-35days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	5 sets per quarter
