Full Automatic Playing Card Punching Machine 10.5KW Poker Card Die Cutter

Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YLP-APC-1000
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export plywood case
Delivery Time: 30-35days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5 sets per quarter
Get Best Price
Chat Now
Detail Information
Power Supply: AC 380V/50 HZ Power: 10.5KW
Air Supply: 6 Kg/c㎡(no Water) Weight: Approx 2000Kg
Control Mode: PLC Program+ Servo System Dimensions: Around L4000×W1200×H1750mm
Highlight:

Automatic Playing Card Punching Machine

,

Playing Card Punching Machine 10.5KW

,

Automatic Card Die Cutter


Product Description

Full Automatic Playing Card Punching Machine 10.5KW Poker Card Die Cutter
Product Specifications
Attribute Value
Power supply AC 380V/50 HZ
Power 10.5KW
Air supply 6 kg/c㎡(no water)
Weight Approx 2000Kg
Control mode PLC program+ servo system
Dimensions around L4000×W1200×H1750mm

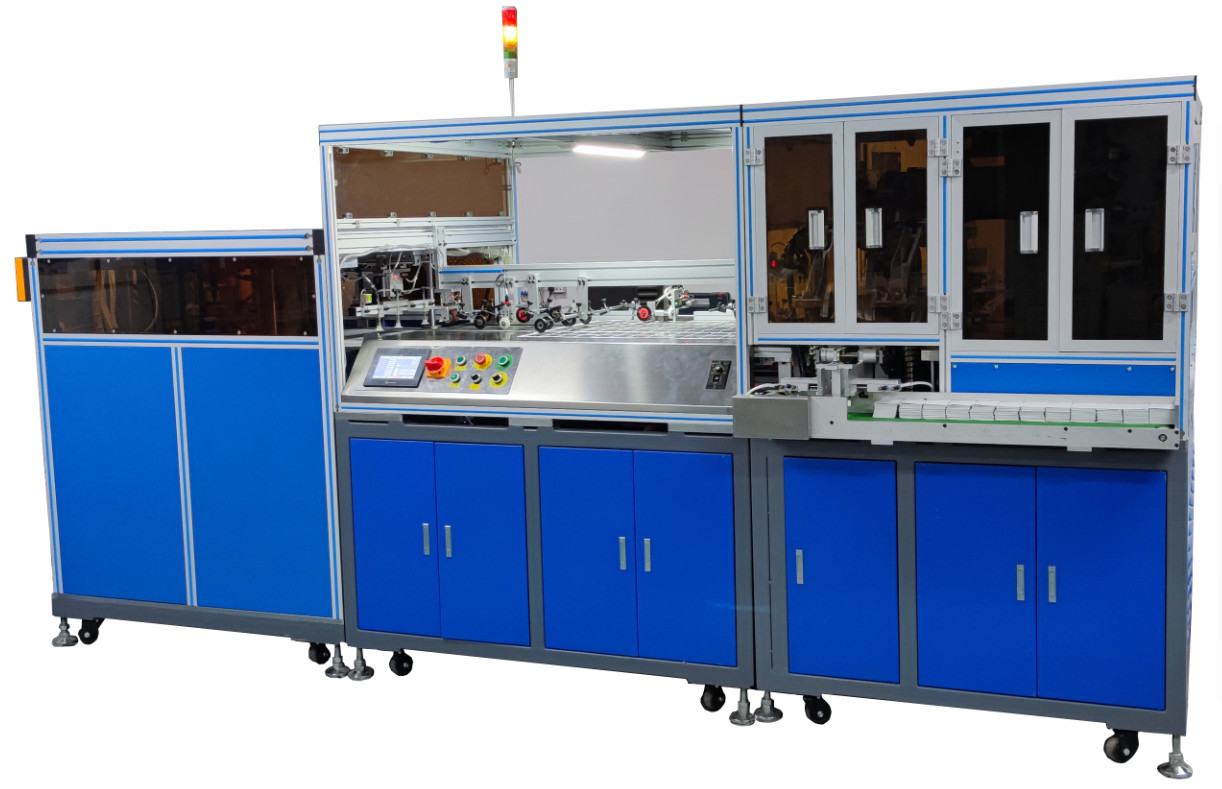

Full Automatic Poker Card Punching Machine YLP-APC-1000

This industrial-grade machine is engineered for high-speed automatic punching and sorting of poker playing cards. It features superior performance with larger sheet capacity (maximum size 889 x 590 mm) and faster operation compared to standard models.

Key Features
  • Advanced touch screen interface with user-friendly operation
  • High-power servo motor for consistent punching performance
  • Precision laser sensor technology with dual stepping systems for accurate positioning
  • X and Y axis plane positioning unaffected by material edge cutting variations
  • Also known as: Full Auto Poker Playing Card Die Cutter or Die Cutting Machine
Technical Parameters
Power supply AC 380V/50 HZ Suitable material PVC, ABS, paper (different molds for different materials)
Total power 10.5 KW Maximum sheet size 889 X 590mm
Air supply 6 kg/c㎡(no water) Card collection width 50~70 mm
Operators 1 person Sheet thickness range 0.25~1.5 mm
Punching precision ±0.10mm Counterpoint mode Side positioning or cursor line alignment
Output 800~1000 sheets/hour Control mode PLC program + servo system
Comprehensive Service Package
Pre-Sale Services
  1. Professional consultation on material matching and machine selection
  2. Customized equipment recommendations based on production requirements
  3. 24/7 online support and factory visit arrangements
  4. Detailed company and product documentation
After-Sale Support
  1. On-site installation and commissioning by qualified engineers
  2. Comprehensive operator training program
  3. Lifetime technical support and regular follow-ups
  4. Priority response to service requests
Warranty Coverage

All card machines include a 1-year comprehensive warranty. Our service department provides prompt assistance for any technical issues, with on-site support available for complex problems.
