Name: Automatic IC Card Milling and Embedding Machine For Plastic Card Slot Milling
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YIM-4000
Availability: InStock

Detail Information

Control Method:	PLC + Servo System	Total Power:	Around 6.5kw
Compressed Air:	50 L/min 6 Kgs /cm2	Milling Precision:	X/Y: ±0.015mm Z: ±0.010mm
Processed Card Size:	ISO CR80 / IEC 7810 Cards 54×85.6mm	Productivity:	3500~4500pcs/h
Highlight:	Automatic Milling and Embedding Machine , IEC 7810 Milling and Embedding Machine

Product Description

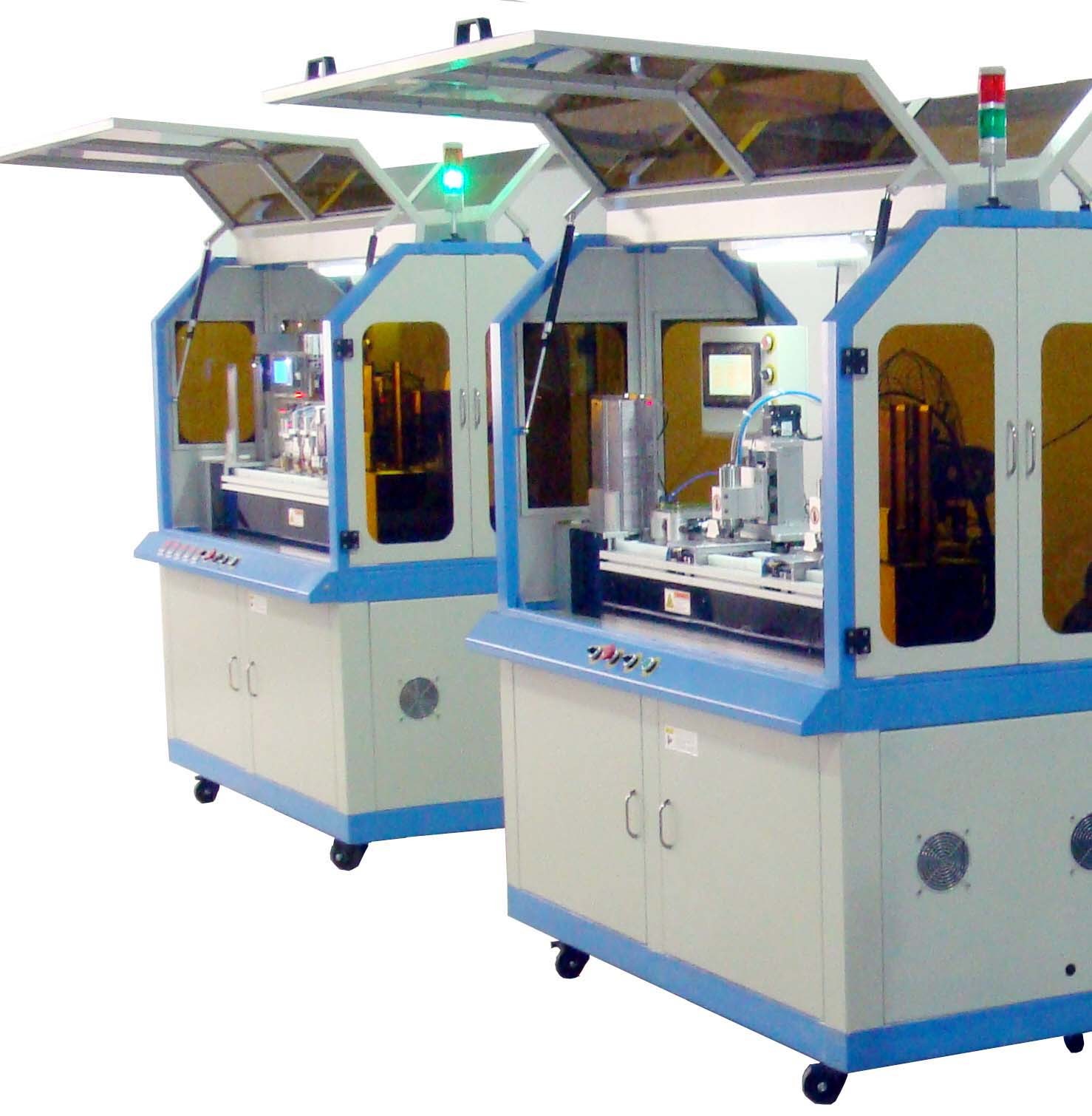

Automatic IC Card Milling Machine YIM-4000

Precision milling machine for creating slots or cavities for IC chip implantation on plastic card surfaces.

Key Specifications

Attribute	Value
Control method	PLC + Servo system
Total power	Around 6.5kw
Compressed Air	50 L/min 6 kgs/cm²
Milling precision	X/Y: ±0.015mm Z: ±0.010mm
Processed Card size	ISO CR80/IEC7810 cards 54×85.6mm
Productivity	3500~4500pcs/h

Product Overview

The Automatic IC Card Milling Machine YIM-4000+ is engineered for high-precision, high-speed milling of slots or cavities for IC chip implantation on plastic card surfaces. Featuring robust construction and fully automatic operation, this machine delivers reliable performance through PLC control for easy parameter setting and stable operation.

Functional Configuration

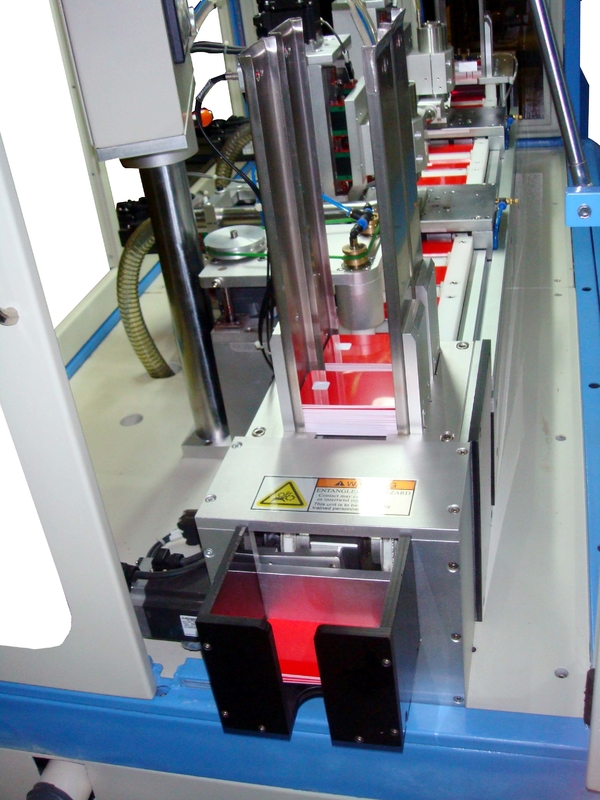

Card feeding magazines (two)
Slot milling stations (two)
Optional depth detection stations (two)
Dust absorber
Card collection magazines (two)

Key operational features include:

Double-card conveying system enables simultaneous milling of two cards
Three-shaft positioning control system with servo motor drive
Independent parameter adjustment for each axis
Automatic alarm and shutdown for card errors or milling depth issues

Technical Parameters

Power supply	AC 380V 50/60 HZ
Total power	6.0 KW
Air source	6kg/cm² (dry)
Air consumption	Approx. 50L/min
Weight	Approx 650Kg
Speed	3500~4500pcs/h
Card specification	ISO CR80/IEC7810 54x85.6mm
Dimension	Approx. L1750xW800xH1850 mm
Milling precision	X/Y: ±0.015mm Z: ±0.010mm
Operator	1 Person

Performance Metrics

Product First Pass Rate	≥99.8%
Equipment utilization rate	≥98%
Mean Time Between Major Failures (MTBF)	≥168h
X Y. Z-axis accuracy of chip slot milling equipment	±0.015mm; Cpk>1.33
Embedding accuracy of chip embedding machine	±0.02mm; Cpk>1.33
Speed-UPH	3500~4500pcs/h for 1-chip card production

Our Service Commitment

Pre-sale Services

Professional consultation on raw material matching and machine selection
Optimal equipment recommendations based on production requirements
Efficient online support
Factory visits and production line demonstrations
Detailed company and product documentation

Sales Services

Regular production schedule updates
Quality control supervision
Product acceptance procedures
Timely shipping arrangements

After-sale Support

On-site installation guidance
Setup, troubleshooting, and operational training
Comprehensive operator training programs
Lifetime technical support
Regular customer follow-up and feedback collection

Warranty

We provide a comprehensive one-year warranty for our card machines, including:

24/7 access to our service department
On-site support for unresolvable technical issues

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YIM-4000

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	2 sets per month
