Name: High Precision IC Card Embedding Machine Automatic YIE-4000 For PVC Cards
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YIE-4000
Availability: InStock

Detail Information

Process Mode:	Embedding Or Implanting The Punched IC Chips Into The Milled Slots Or Cavities Of PVC Cards	Product First Pass Rate:	≥99.5%
Working Station:	4 Heating Heads, 1 Cooling Head And 1 ATR Checking Unit	Card Specification:	ISO CR80/IEC7810 54x85.6mm
Air Consumption:	Approx. 80L/min	Speed-UPH:	3500~4000pcs/h
Highlight:	Card Embedding Machine Automatic , High Precision Card Embedding Machine , PVC Card Embedding Machine

Product Description

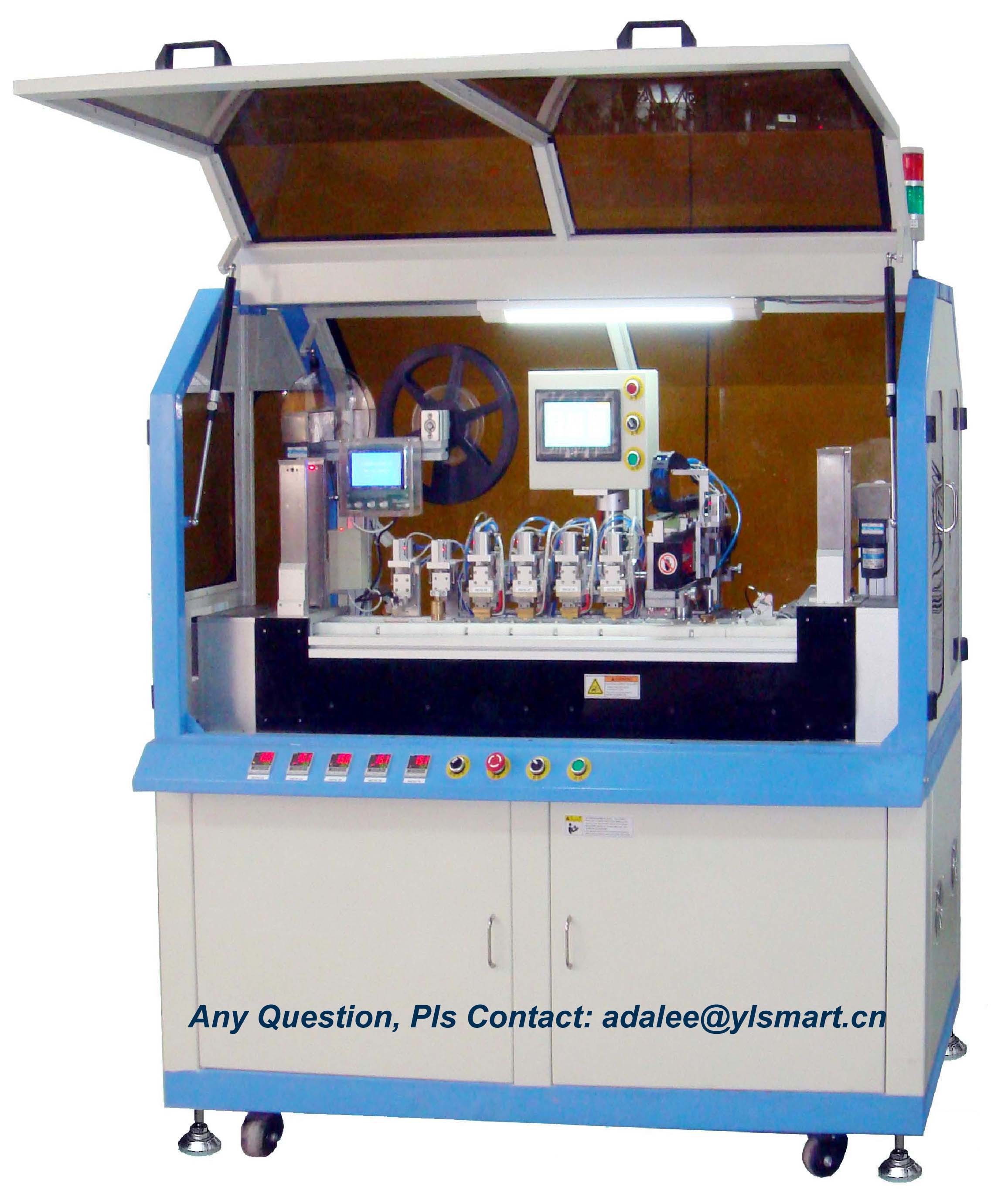

Automatic IC Card Embedding Machine YIE-4000

High-precision machine for embedding punched IC chips into milled slots or cavities of PVC cards with exceptional efficiency and reliability.

Key Specifications

Attribute	Value
Process Mode	Embedding punched IC chips into milled slots/cavities of PVC cards
First Pass Rate	≥99.5%
Working Stations	4 heating heads, 1 cooling head, 1 ATR checking unit
Card Specification	ISO CR80/IEC7810 54x85.6mm
Air Consumption	Approx. 80L/min
Production Speed	3500-4000pcs/hour

Product Overview

The YIE-4000 Automatic IC Card Embedding Machine is designed for high-precision implantation of punched IC chips into PVC cards. Featuring PLC control for easy parameter setting and stable performance, this machine ensures efficient card production with minimal operator intervention.

Functional Configuration

Card feeding magazines (two)

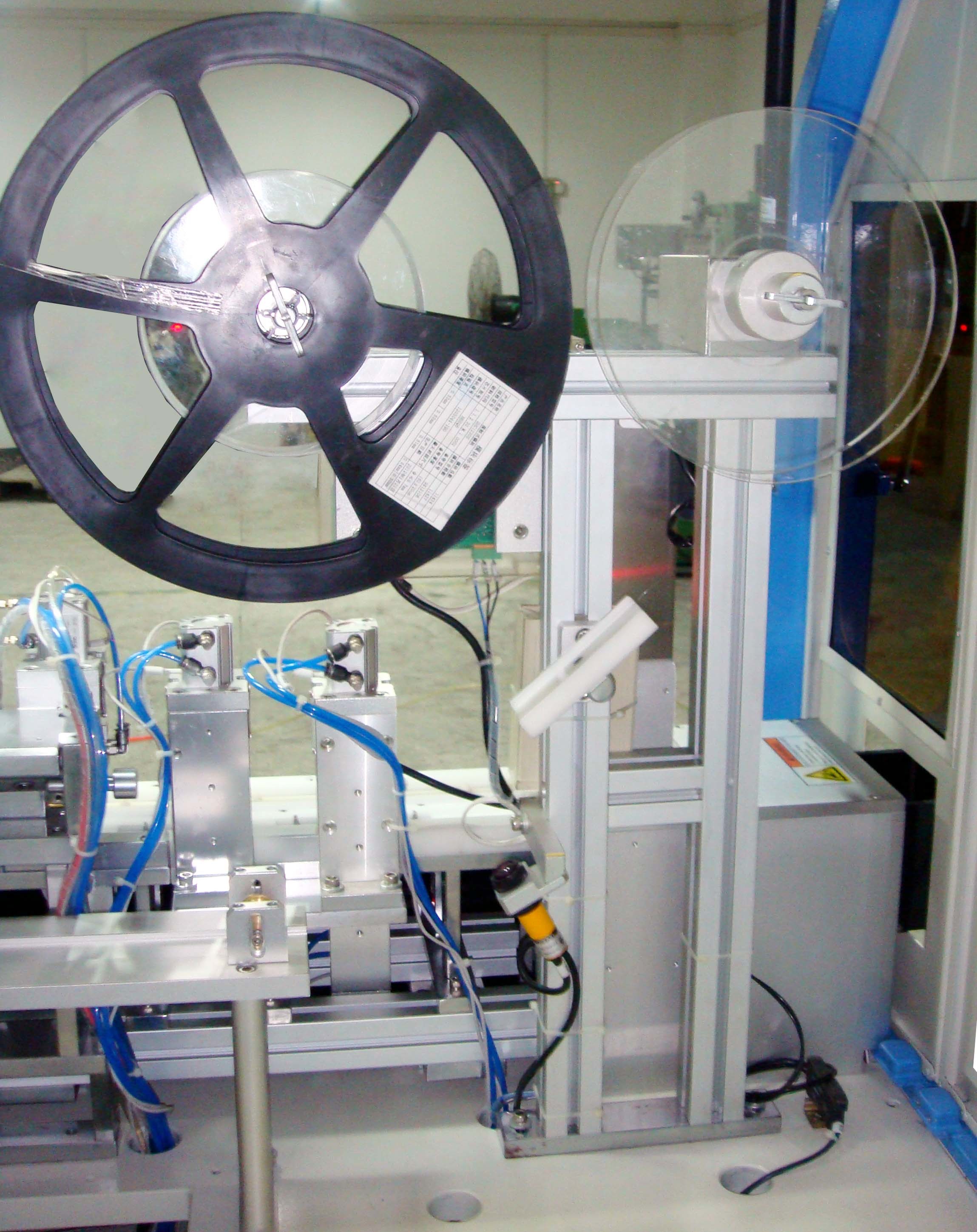

Chip tape convey-punch station
Chip pick-place station
Heating heads (four)
Cooling head (one)

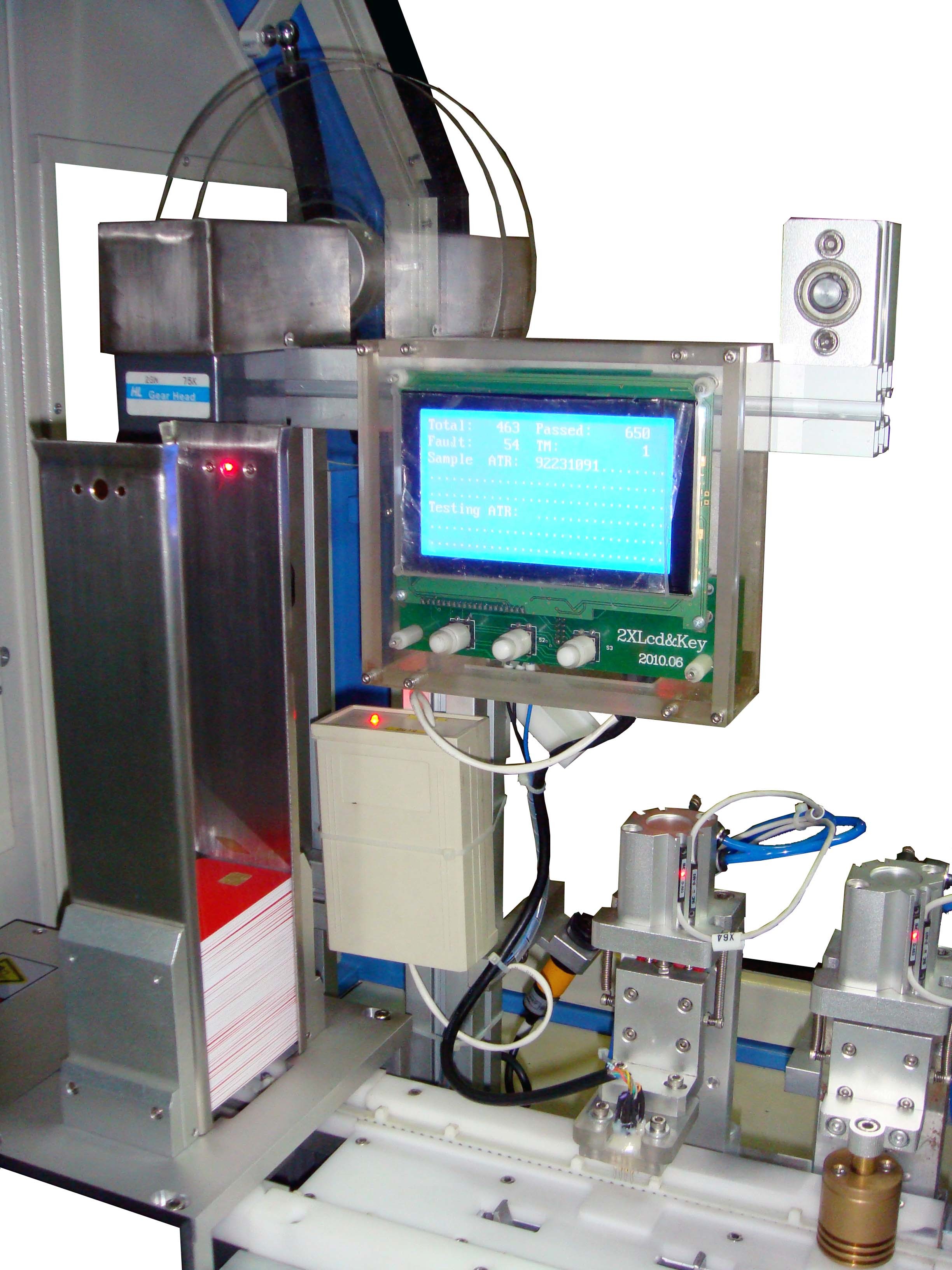

ATR checking station
Card Collection magazines (two)
Bad card collection unit

Technical Parameters

Power Supply	AC 220V 50/60 HZ	Control Method	PLC + Servo system
Total Power	2.5 KW	Card Specification	ISO CR80/IEC7810 54x85.6mm
Air Source	6kg/cm² (dry)	Dimensions	Approx. L1750xW850xH1750 mm
Air Consumption	Approx. 80L/min	Temperature Control	0-400℃ (adjustable)
Weight	Approx 700Kg	Operator Requirement	1 Person
Speed	3500-4000pcs/hour

Advanced Features

Servo motor stepping system for precise chip tape conveyance and punching
Adjustable heating station for melting chip adhesive with temperature and pressure control
Automatic IC module monitoring with bad chip removal system
PLC control system for stable operation with automatic error alerts
Integrated ATR system for chip performance verification and bad card rejection

Comprehensive Service Support

Pre-Sale Services

Professional consultation on raw materials, machine selection, and production setup
Optimal machine recommendations based on production requirements
Factory visits and invitation letters available upon request
Detailed company and product documentation

Sales Support

Regular production schedule updates
Quality control supervision
Product acceptance procedures
Timely shipping arrangements

After-Sale Services

On-site installation and commissioning support
Comprehensive operator training
Lifetime technical support
Regular customer follow-up and feedback collection

Quality Guarantee

1-year warranty on all card machines
24/7 technical support during warranty period
On-site support available for complex technical issues

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YIE-4000

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	45-60days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	2 sets per quarter
