PLC Servo Control Card Milling and Embedding Machine 6.5KW ISO CR80 IEC 7810

PLC Servo Control Card Milling and Embedding Machine 6.5KW ISO CR80 IEC 7810
PLC Servo Control Card Milling and Embedding Machine 6.5KW ISO CR80 IEC 7810 PLC Servo Control Card Milling and Embedding Machine 6.5KW ISO CR80 IEC 7810 PLC Servo Control Card Milling and Embedding Machine 6.5KW ISO CR80 IEC 7810 PLC Servo Control Card Milling and Embedding Machine 6.5KW ISO CR80 IEC 7810
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YIME-1
Minimum Order Quantity: 1 set
Packaging Details: exported plywood package
Delivery Time: about 40days after receiving prepayment
Payment Terms: T/T , D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 sets per month
Get Best Price
Chat Now
Detail Information
Power: 6.5 KW Compressed Air: 150 L/min 6 Kgs /cm2
Processed Card Size: ISO CR80/IEC7810 Cards 54×85.6mm Equipment Size: Approximately L1750xW800xH1850 Mm
Operating System: Windows Control System: PLC
Control Mode: PLC + Servo System Suitalbe Card Size: ISO CR80/IEC7810 Cards 54×85.6mm
Highlight:

Card Milling And Embedding Machine

,

Milling And Embedding Machine IEC 7810

,

Card Milling Machine 6.5KW

Product Description

PLC Servo System Control Mode ISO CR80 / IEC7810 Card Milling And Embedding Machine YIME-1
Key Specifications
Attribute Value
Power 6.5 KW
Compressed Air 150 L/min 6 Kgs/cm²
Processed Card Size ISO CR80/IEC7810 Cards 54×85.6mm
Equipment Size Approximately L1750×W800×H1850 mm
Operating System Windows
Control System PLC
Control Mode PLC + Servo System
Product Overview
The IC Card Miller and Chip Implanter YIME-1 is a high-performance card milling and embedding machine designed for efficient processing of IC cards. With a production speed of 2000-2500 chips per hour, this machine delivers exceptional productivity for businesses requiring fast and precise card manufacturing.
Key Features
  • Integrated all-in-one solution with card body slot milling, chip cutting/placing, embedding, and testing in one pass
  • Advanced PLC + Servo System control for precise adjustments and consistent performance
  • Compact dimensions (L1750×W800×H1850 mm) for easy integration into production lines
  • Specifically designed for ISO CR80/IEC7810 cards (54×85.6mm)
  • Robust construction (900kg) for stable operation and minimal maintenance
  • Multiple standard module milling programs with convenient parameter modification
  • High-precision servo motor control for accurate milling depth (±0.015mm X/Y, ±0.010mm Z)
  • Special card correction structure ensures high precision slot milling and chip embedding (±0.02mm)
  • Double-card detection function prevents incorrect card feeding
  • Automatic error detection and alarm system
Technical Specifications
Dimension: L2200×W850×H1850 mm
Weight: Around 900 KG
Power supply: AC 380V 3 phases 50/60HZ
General power: 6.5KW
Compressed Air: 150 L/min 6 kgs/cm²
Temperature range: 0-400℃
Speed: 2000～2500 chips/hour
Standard Configuration
Card feeding magazines (1), overlapped card detection unit (1), slot milling station (1), dust absorber, chip tape convey, punch station (1), chip pick-place station (1), heating heads (2), cooling head (1), ATR checking station (1), card collection magazine (1), bad card collection unit (1).
Customization Options
Brand Name: YL
Model Number: YIME-1
Place of Origin: China
Minimum Order Quantity: 1 set
Packaging: Exported plywood package
Delivery Time: About 40 days after receiving prepayment
Payment Terms: T/T

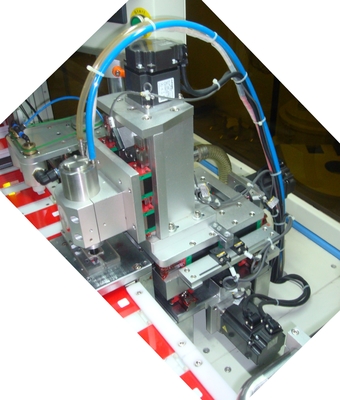

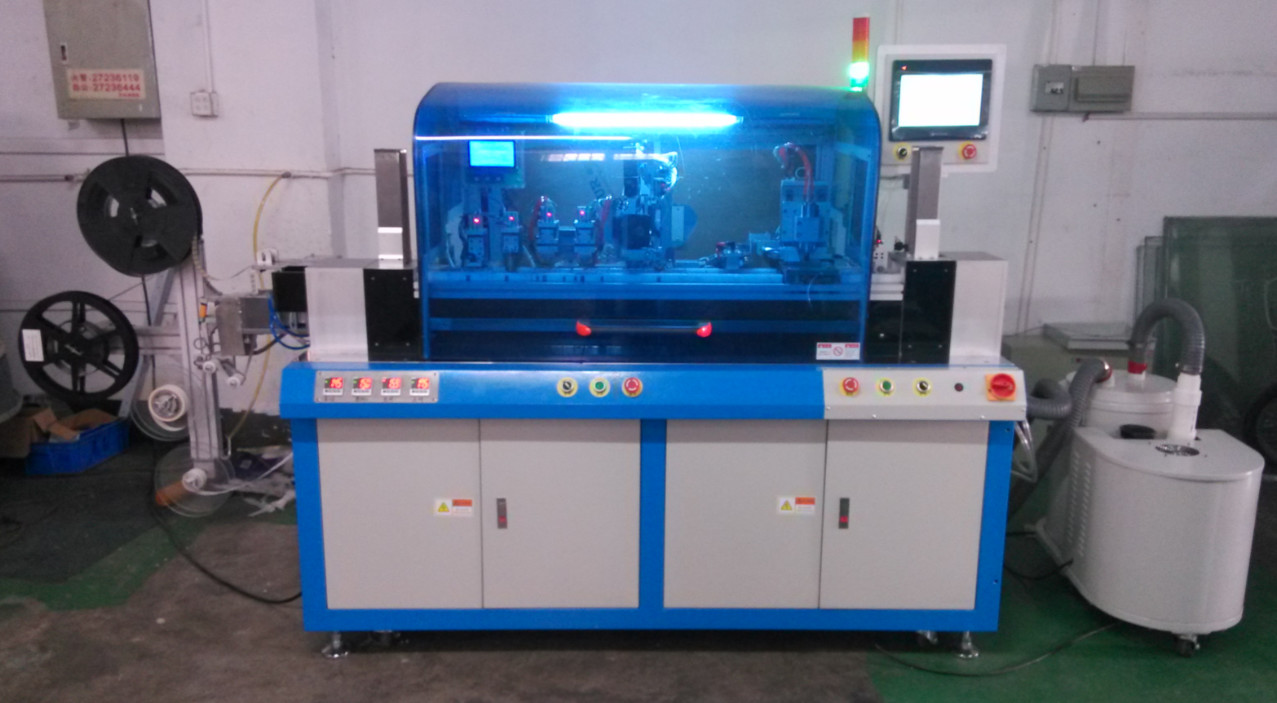

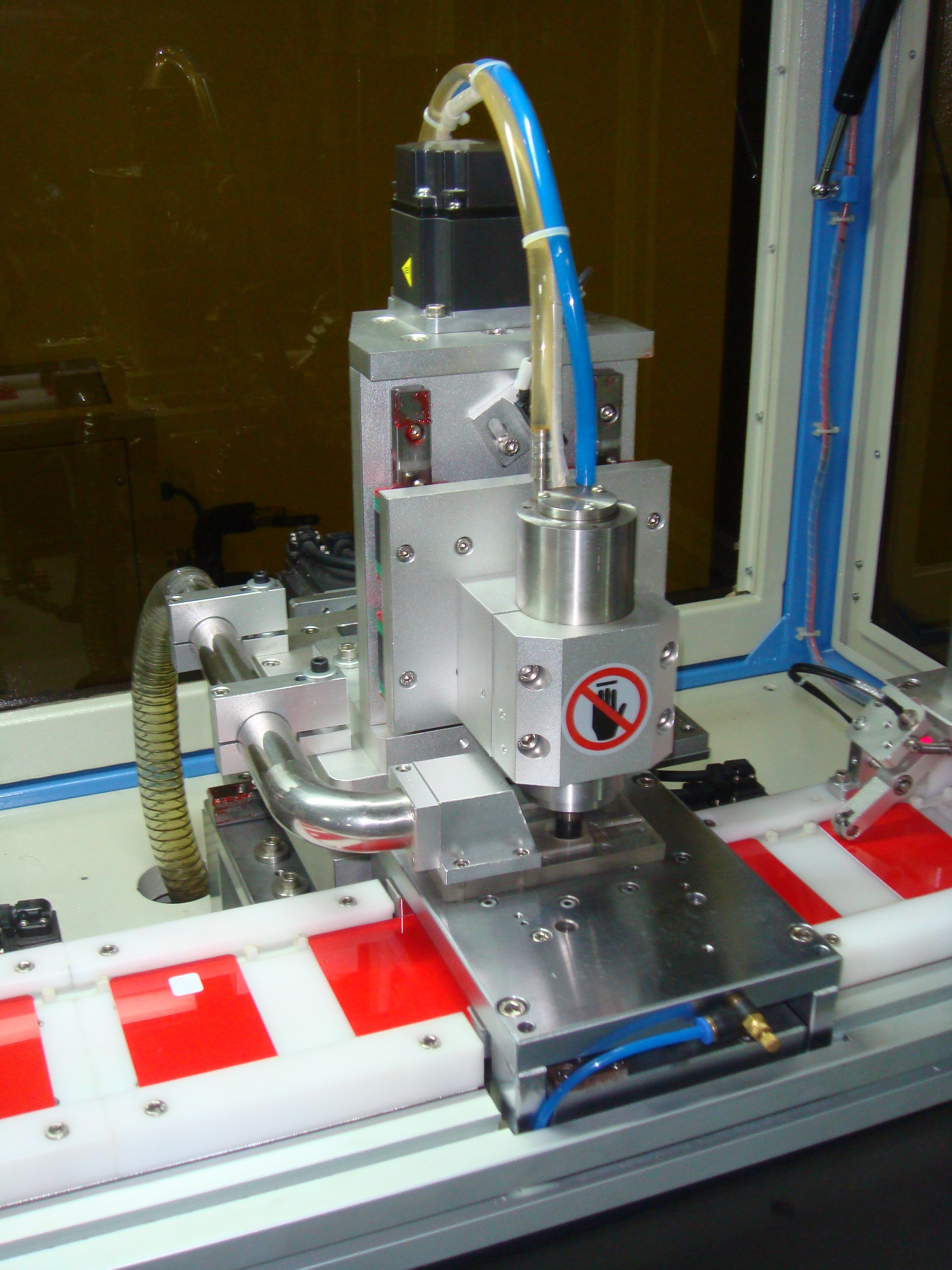

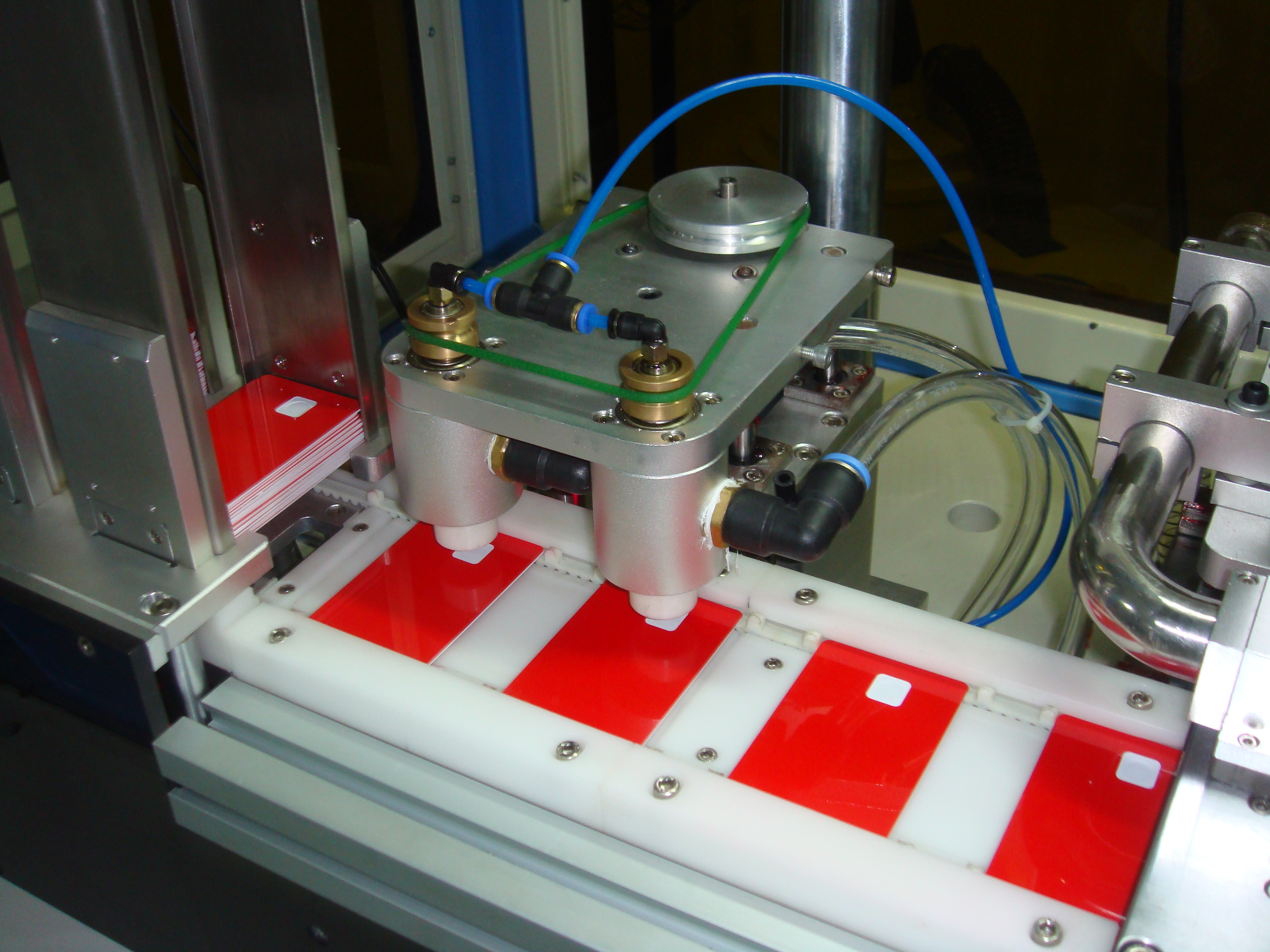

Product Images PLC Servo Control Card Milling and Embedding Machine 6.5KW ISO CR80 IEC 7810 0
Frequently Asked Questions
Q: What is the brand name of the Bank Card Milling and Embedding Machine?
A: The brand name is YL.
Q: What is the model number of the Bank Card Milling and Embedding Machine?
A: The model number is YIME-1.
Q: Where is the Bank Card Milling and Embedding Machine manufactured?
A: The machine is manufactured in China.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 set.
Q: What is the delivery time?
A: The delivery time is about 40 days after receiving prepayment.
