Full Auto High Speed IC Card Milling Embedding Machine With PLC Servo Control

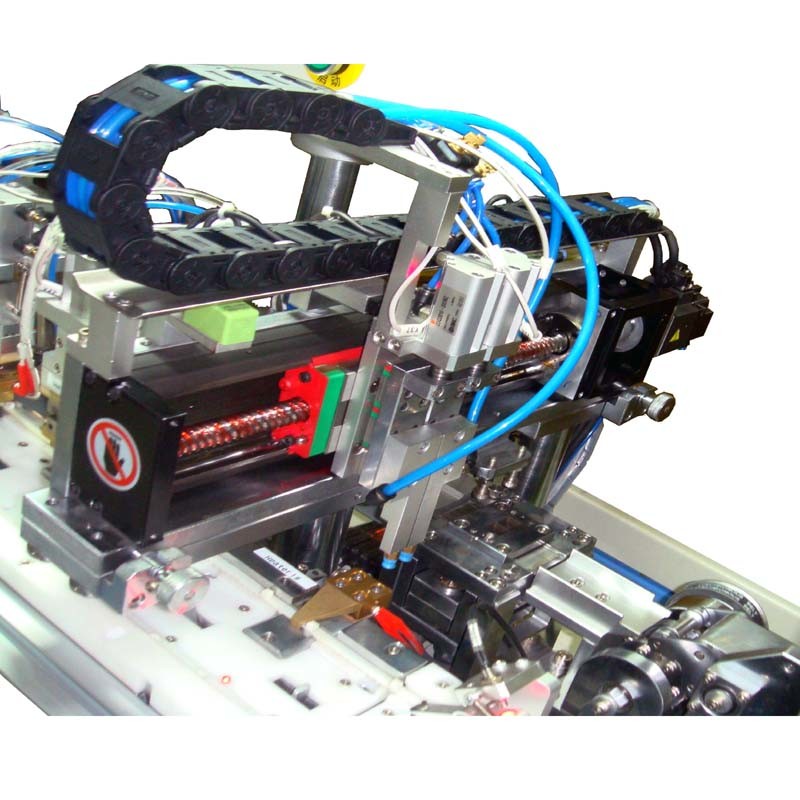

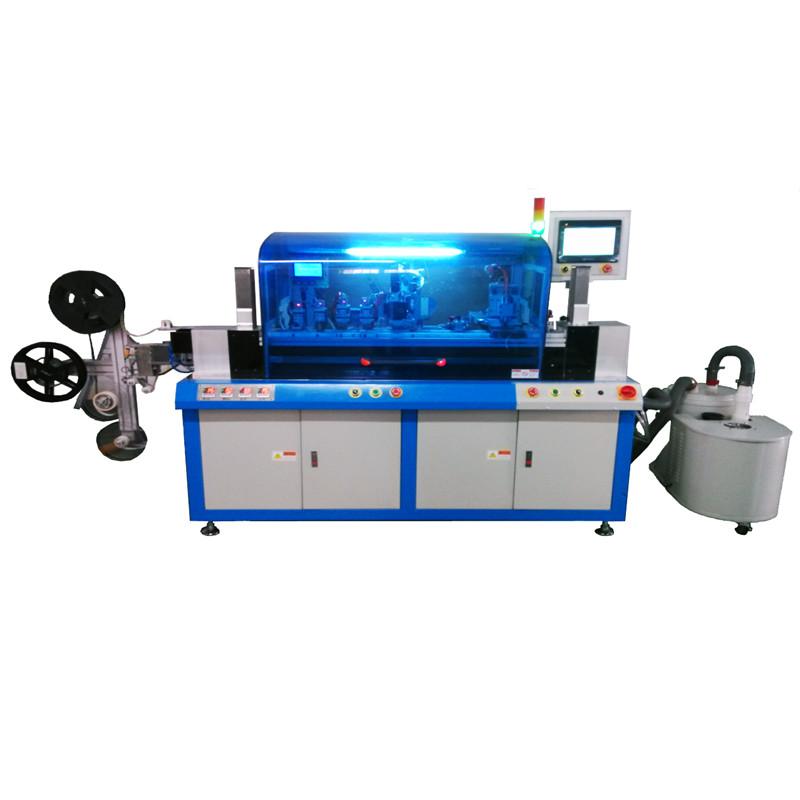

The All-in-one IC Card Milling and Embedding Machine YIME-1 integrates card body slot milling (1 milling station), chip cutting and placing, chip embedding (1 embedding station), and testing in one complete process.

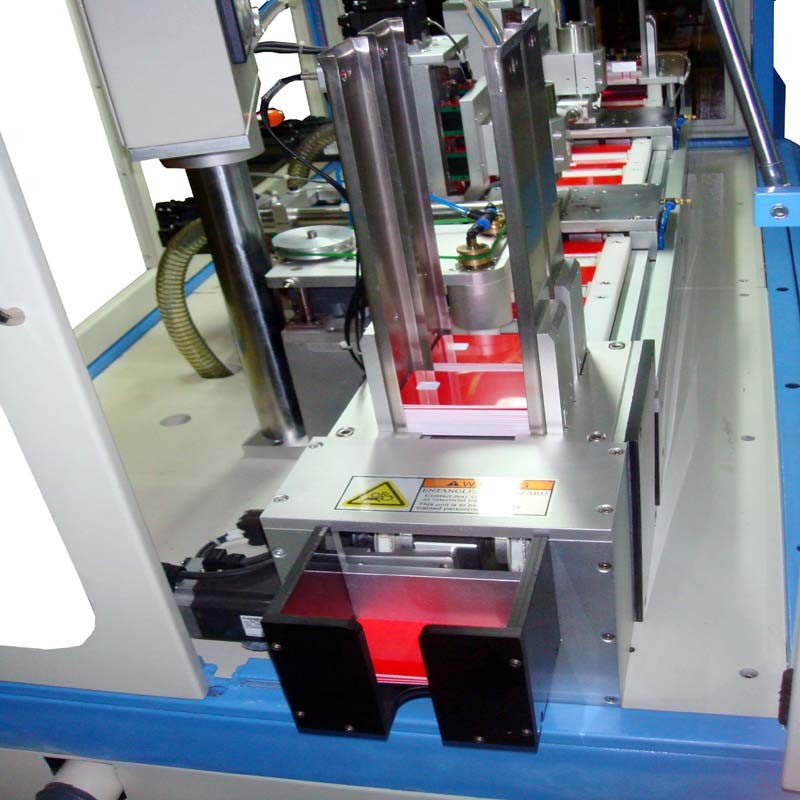

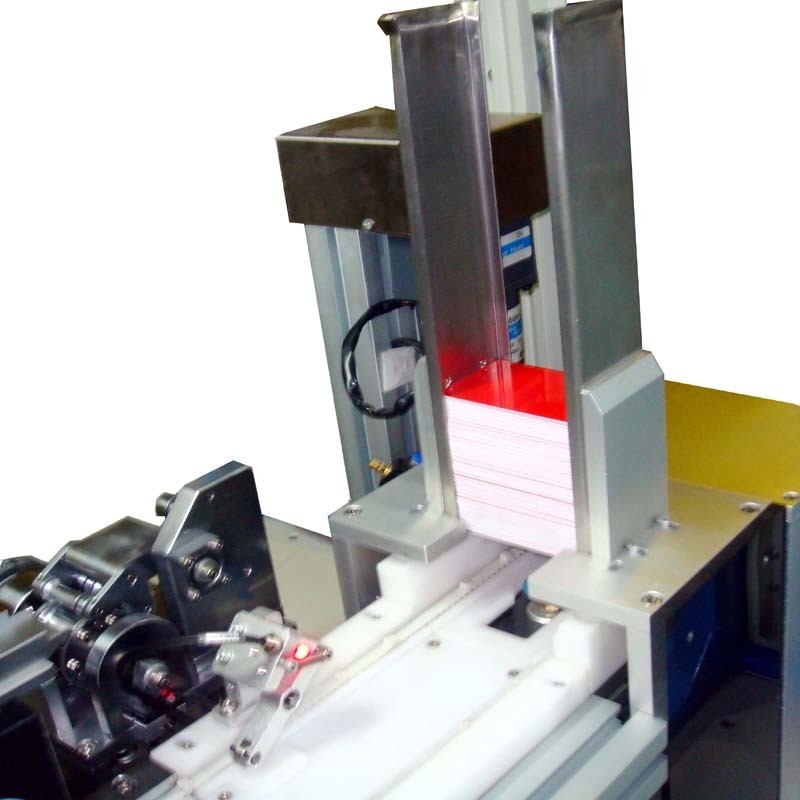

• Card feeding magazines (one)
• Overlapped card detection unit (one)
• Slot milling station (one)
• Dust absorber
• Chip tape convey
• Punch station (one)
• Chip pick-place station (one)
• Heating heads (two)
• Cooling head (one)
• ATR checking station (one)
• Card Collection magazine (one)
• Bad card collection unit (one)

• Multiple standard module milling programs for different requirements with easy parameter modification
• Milling stations can create different profiles as configured via touch screen
• Z-axis movement via guide and ball screw driven by high precision servomotor for accurate milling depth
• Special tool changing program for fast and convenient operation
• Card correction structure ensures high precision slot milling and chip embedding
• Servo motor with high precision guider and lead screw for stable module transfer
• Special hot press station design ensures tight module adhesion to plastic cards
• Double-card detection prevents wrong card feeding
• PLC-controlled automatic operation with error alarm system

• Dimension: L2200×W850×H1850 mm
• Weight: Around 900 KG
• Power supply: AC 380V 3 phases 50/60HZ
• General Power: 6.5 KW
• Compressed Air: 150 L/min 6 kgs/cm²
• Control Mode: PLC + Servo system
• Slot Milling Precision: X/Y=±0.015 mm, Z=±0.010mm
• Chip Embedding precision: ±0.02mm
• Processed Card size: ISO CR80/IEC7810 cards 54×85.6mm
• Speed: 2000～2500 chips/hour
• Temperature range: 0-400℃

The machine features modular structures, with final configuration and speed depending on functional module choices selected by end users.
