All In One SIM Card Manufacturing Machine GSM SIM Card Puncher For 1FF 2FF 3FF 4FF Cards

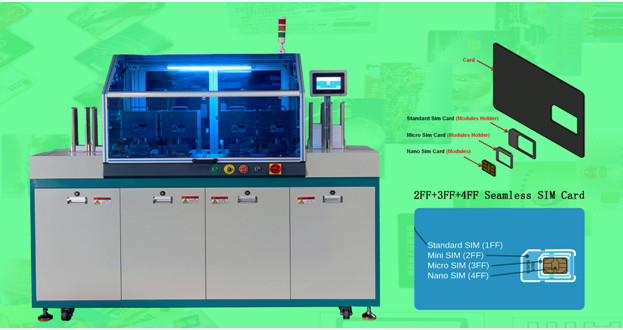

The Full Automatic GSM SIM Card Die Cutting Machine YLFP-SIM-4 (4-Chip SIM card) is designed for punching 4-chip GSM SIM Cards into quarter SIM cards (26*42mm or customized). This advanced solution performs speedy and precise punching operations of 4FF Nano SIM cards, 3FF Micro SIM cards, and 2FF Mini card slot punching in a single pass.

• High-speed operation: 4000-5000 standard size 4-chip cards/hour or 15000-16000 quarter size cards/hour
• Advanced punching die with imported high hardness, wear-resistant steel cutting edge
• High-power servo motor with adjustable parameters for precise operation

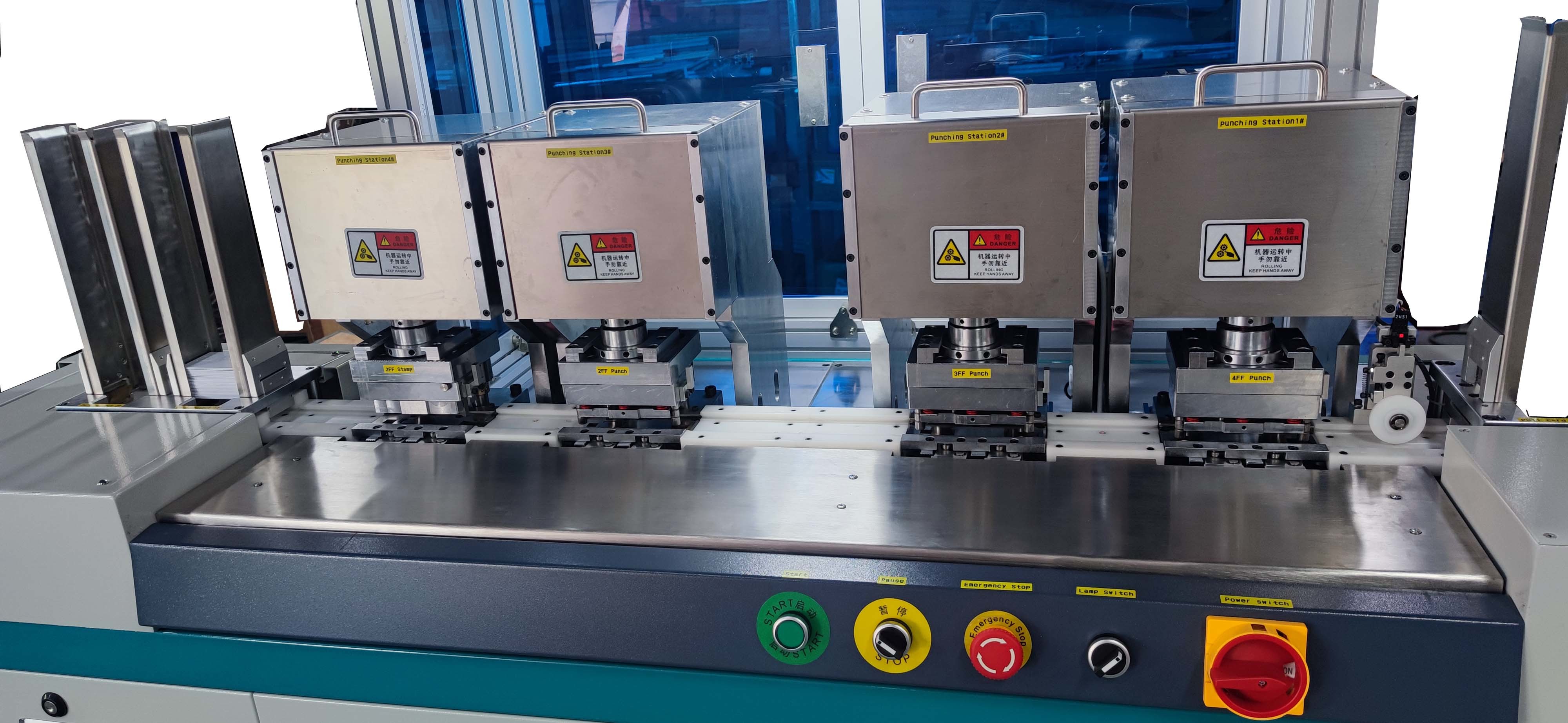

• Modular structure design with four workstations that can operate simultaneously or independently
• Special belt-type card conveying mechanism for stable, high-speed performance
• PLC program control with color Chinese/English touch screen operation
• Automatic alarm and stop functions for empty feeders or full collection magazines

1 card issuance magazine + dual-card detection unit + 3 punching stations (4FF seamless punching/3FF seamless punching/2FF Slot punching) + 1 indenting station (2FF indenting) + 1 card collection magazine + 1 card feeding magazine for 2-chip full size card + half size card punching station + half size card collection magazines (2 sets) + half card pick-placing hand (2 sets) + quarter card punching stations (2 sets) + quarter card collection magazines (4 sets).

• Professional consultation on raw material matching and machine selection
• Factory visits and production line demonstrations
• Comprehensive company and product information

• Regular production updates and quality supervision
• Strict product acceptance procedures
• Guaranteed on-time shipping

• On-site installation and commissioning support
• Comprehensive operator training
• Lifetime technical support
• Regular customer follow-ups and feedback collection

We provide a one-year guarantee period for our card machines. During this period, we offer efficient service support and can arrange on-site assistance for any unsolvable technical issues.
