Name: High Glossy Mirror Finish Lamination Steel Plate For Smart Cards Production
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YSP-G
Availability: InStock

Detail Information

Plate Size(L×W):	A4, A3 Or Custom-made Size	Plate Thickness:	0.4mm,0.6mm, 0.8mm 1.0mm (Thickness Tolerance: ±0.05mm)
Dimension Tolerance:	±1mm For Length And Width.	Plate Flatness Level::	Maximum 1 Mm.m
Surface Roughness:	Glossy Plate (Ra＜0.03μm)	Glossy Plate Surface Glossiness:	Over 800 GU At 20° (both Sides)
Highlight:	High Glossy Lamination Steel Plate , Mirror Finish Lamination Steel Plate , Smart Cards Lamination Steel Plate

Product Description

High Glossy Mirror Finish Card Lamination Steel Plate For Smart Card Production

Product Specifications

Attribute	Value
Plate size(L×W)	A4, A3 or custom-made size
Plate thickness	0.4mm, 0.6mm, 0.8mm, 1.0mm (Thickness tolerance: ±0.05mm)
Dimension tolerance	±1mm for length and width
Plate flatness level	Maximum 1 mm.m
Surface roughness	Glossy plate (Ra＜0.03μm)
Glossy plate surface glossiness	Over 800 GU at 20° (both sides)

Product Description

0.4-1.0mm Thick High Glossy Mirror Finish Card Lamination Steel Plate YSP-G For Smart Card Production

High glossy lamination plate, ultra glossy lamination plate, lamination steel plate for card laminator, glossy/mirror laminating plate, card finish lamination plate, card production material

Product Introduction

These plates are essential consumables in plastic card lamination, ensuring perfect surface finish on laminated plastic cards. Widely used by card manufacturers globally, our plates deliver consistent quality results.

Key Features

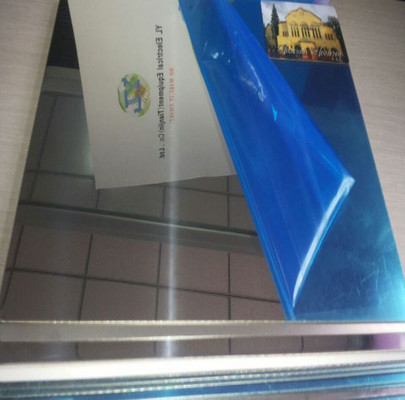

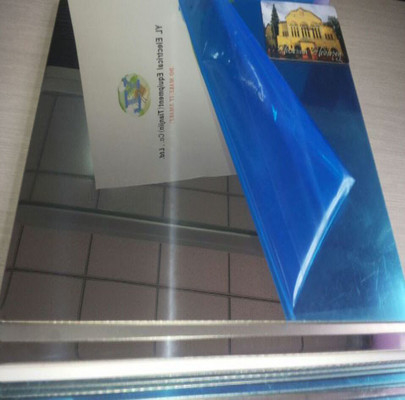

Both sides protected with blue film that leaves no residue when removed
Consistent glossy/matte finish quality on both surfaces
Free from scratches, dents, stripes, shadows, and dust
Smooth, deburred edges with rounded corners for safety
Non-stick surface prevents adhesion to laminated plastic sheets

Technical Parameters

Surface hardness	HRC80±20
Thermal transmission	0.04cal/℃.cm.sec at 20℃
Packaging	Solid plywood carton with soft cushion protection

Applications

Also known as mirror finish plastic card laminating plate or high glossy card press steel plate, this product is essential for professional smart card production.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSP-G

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case based on ordered qty and size
Delivery Time:	10-15days after receiving the prepayment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 10-15 days
