Name: Grained Finish Smart Card Material Card Lamination Steel Plate 1.0mm Custom Size
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: MSP-GR
Availability: InStock

Detail Information

Slight Grain Steel Plate:	Ra 2.5 - 3.0 μm	Heavy Grain Aluminum Plate:	Ra 5.5- 6.0 μm
Surface Hardness:	HRC26±2	Thermal Transmission:	0.04cal/℃.cm.sec At 20℃
Plate Size(L×W)oughness:	A4, A3 Or Custom-made Size	Plate Thickness:	0.6mm, 0.8mm (Thickness Tolerance: ±0.05mm)
Highlight:	Grained Smart Card Material , Smart Card Material 1.0mm , Card Lamination Steel Plate

Product Description

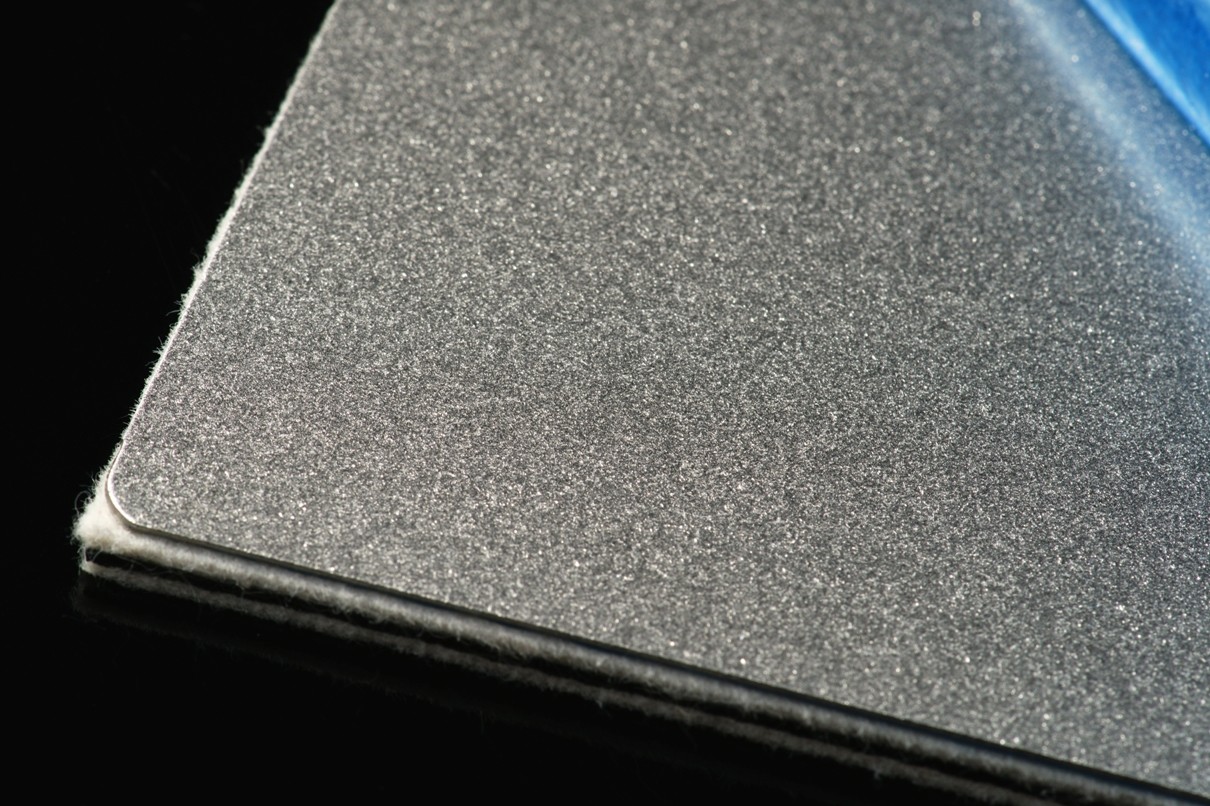

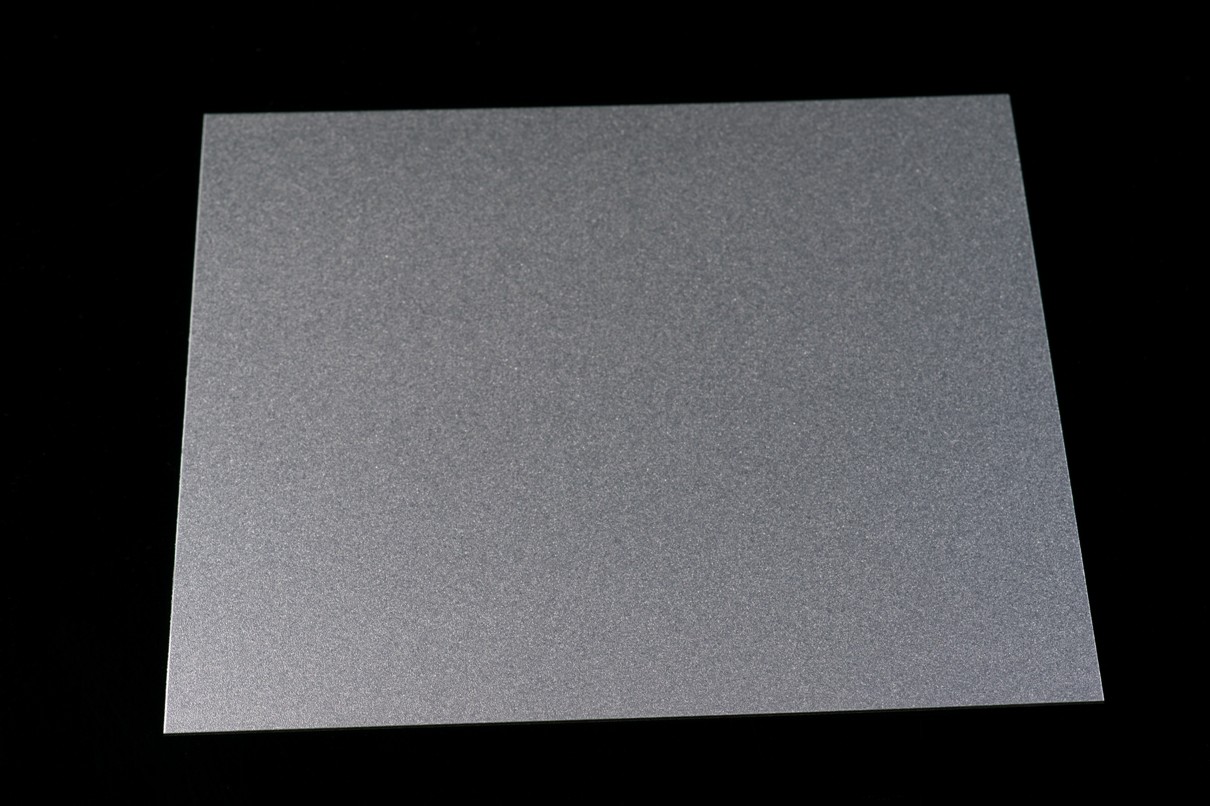

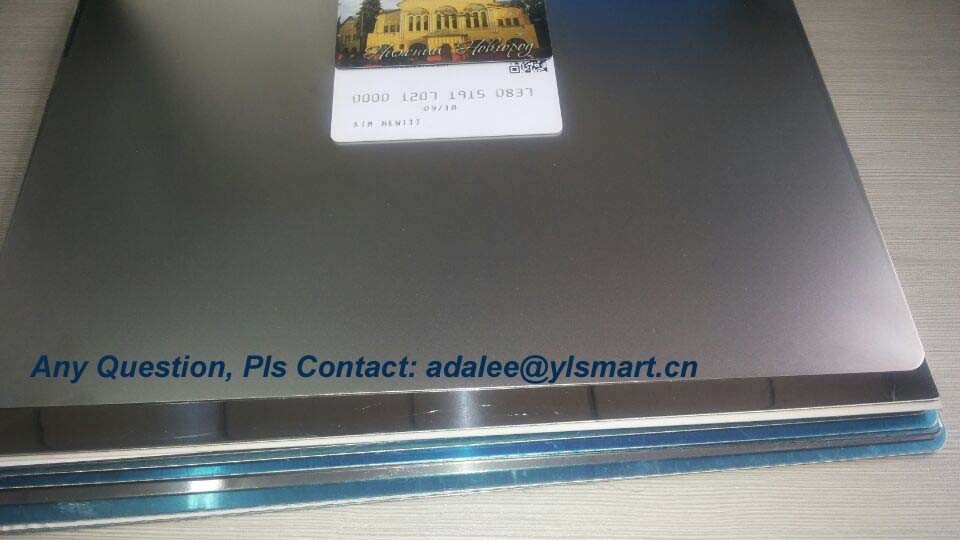

Grained Finish Card Lamination Steel Plate 1.0mm With Round Curved Corners MSP-GR

Product Overview

High-quality grained finish steel plates designed for plastic card lamination processes, ensuring perfect surface finish. Widely used by card manufacturers worldwide with over 10 years of proven performance.

Key Specifications

Slight Grain Steel plate: Ra 2.5 - 3.0 μm
Heavy Grain Aluminum plate: Ra 5.5- 6.0 μm
Surface hardness: HRC26±2
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Available sizes: A4, A3 or custom dimensions
Thickness options: 0.6mm, 0.8mm (±0.05mm tolerance)

Product Features

Dual-sided protective foil covering for surface protection
Consistent matte finish quality on both surfaces
Free from scratches, dents, stripes, and dust
Smooth, deburred edges with rounded corners
Non-stick surface prevents adhesion to laminated sheets

Technical Parameters

Parameter	Specification
Plate size (L×W)	A4, A3 or custom-made size
Plate thickness	0.6mm, 0.8mm, 1.0mm (±0.05mm tolerance)
Dimension tolerance	±1mm for length and width
Surface roughness	Slight Grain: Ra 2.5-3.0μm / Heavy Grain: Ra 5.5-6.0μm
Surface hardness	HRC26±2
Thermal transmission	0.04cal/℃.cm.sec at 20℃
Packaging	Solid plywood carton with soft cushion protection

Additional Information

Also known as: card lamination steel plate, laminator steel plate, grained laminating steel plate, or card production material.

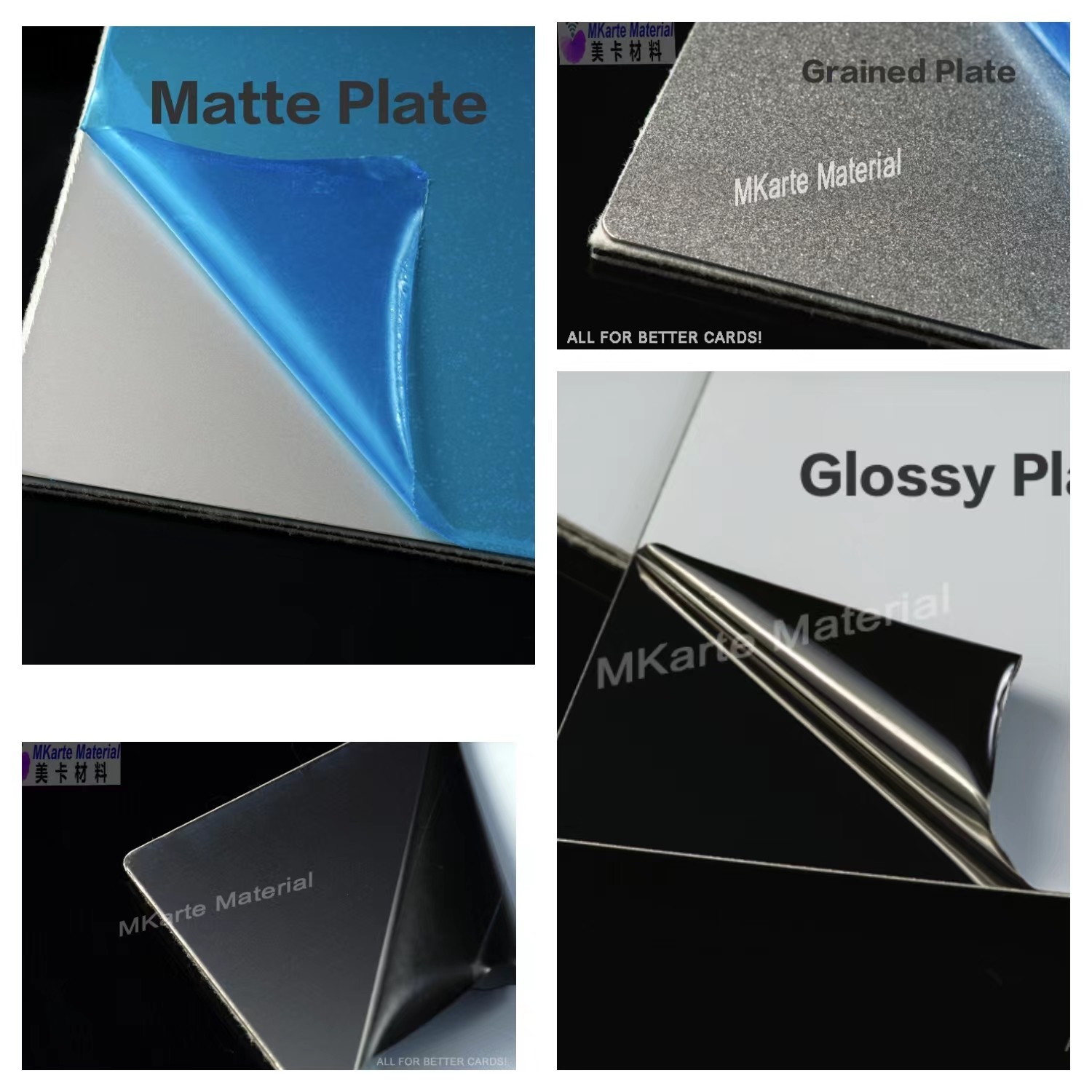

Available Variants

Glossy steel plates
Matte steel plates (for planographic and inkjet coding)
Silk matte steel plates
Grained matte steel plates
Special pattern steel plates

Standard Sizes: 100×120mm; 210×297mm; 210×320mm; 325×480mm; 340×500mm or custom

Thickness Options: 0.6mm, 0.8mm, 1.0mm

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	MSP-GR

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	Export standard plywood case or carton
Delivery Time:	10-15days after receiving the prepayment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000pcs per month
