Detail Information

Plate Size(L×W):	A4, A3 Or Custom-made Size	Plate Thickness:	0.8 Mm (Thickness Tolerance: ±0.05mm)
Dimension Tolerance:	±1mm For Length And Width.	Plate Flatness Level:	Maximum 1 Mm.m
Surface Pattern:	Special Pattern/textured	Surface Hardness::	HRC80±20
Highlight:	0.8mm Smart Card Material , Patterned Smart Card Material , A3 Laminated Steel Sheet

Product Description

Patterned / Textured Card Lamination Steel Plate Custom Size 0.8mm Thick

Product Specifications

Plate size (L×W)	A4, A3 or custom-made size
Plate thickness	0.8 mm (Thickness tolerance: ±0.05mm)
Dimension tolerance	±1mm for length and width
Plate flatness level	Maximum 1 mm.m
Surface pattern	Special pattern/textured
Surface hardness	HRC80±20

card lamination steel plate, laminator steel plate, textured laminating steel plate, special pattern lamination plate, card finish lamination plate, card production material

Product Overview

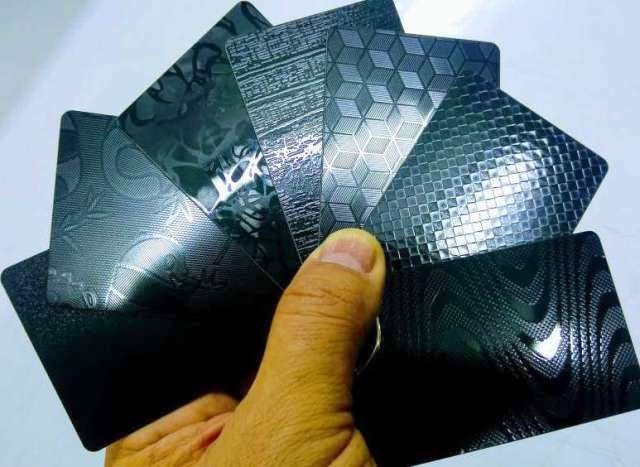

Our special pattern lamination steel plates are designed for personalized pattern finish card lamination, ensuring perfect plastic card surface finish. Widely used by card factories worldwide, these plates deliver consistent, high-quality results.

Key Features

Pattern side protected with blue film for surface protection
Single-sided pattern design (non-pattern side doesn't contact card surface)
Scratch-free pattern surface with possible minor scratches on non-pattern side
Smooth, deburred edges with rounded corners for safe handling

Technical Parameters

Plate size (L×W)	A4, A3 or custom-made size
Plate thickness	0.8 mm (Thickness tolerance: ±0.05mm)
Dimension tolerance	±1mm for length and width
Plate flatness level	Maximum 1 mm.m
Surface pattern	Special pattern
Surface hardness	HRC80±20
Thermal transmission	0.04cal/℃.cm.sec at 20℃
Packaging	Solid plywood carton with soft cushion protection

Applications

Our steel plates are imported from top raw material suppliers, offering excellent heat conduction, pressure resistance, and high-quality mirror finish. With over 10 years of industry experience, we supply premium steel plates for international standard card production.

Available Steel Plate Varieties

Glossy/Mirror finish: Normal mirror effect for planographic and inkjet code
Fine matte (Ra:0.25-0.5um): Tiny lights on surface, thin and lubricious
Coarse matte (Ra:1.0-2.0um): Platoon lights on surface
Silk-Satin finish: For RFID inlay production with moderate coarseness

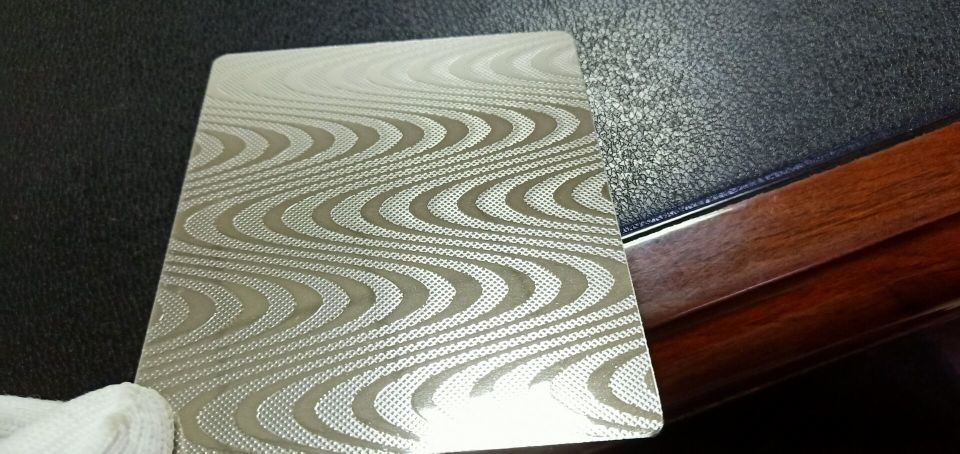

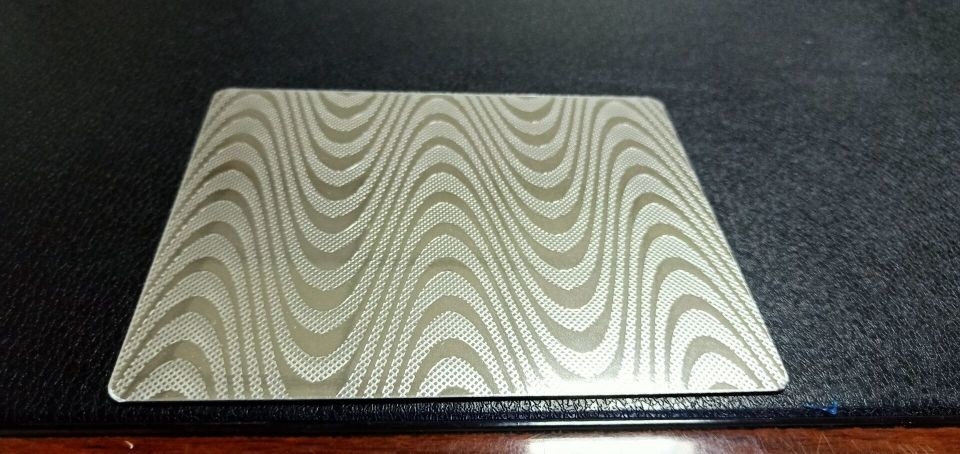

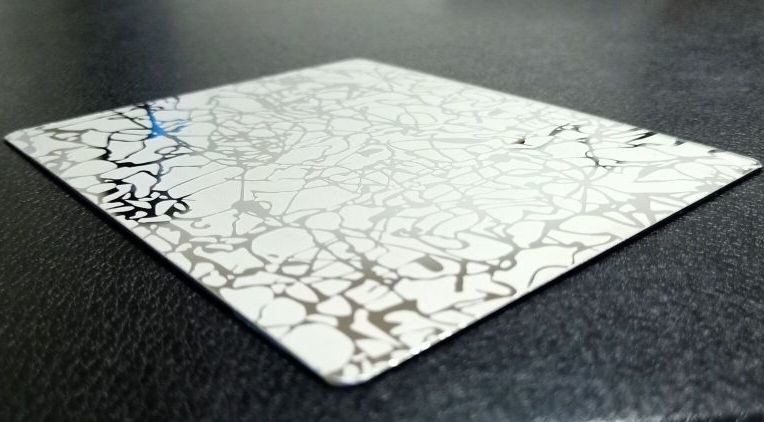

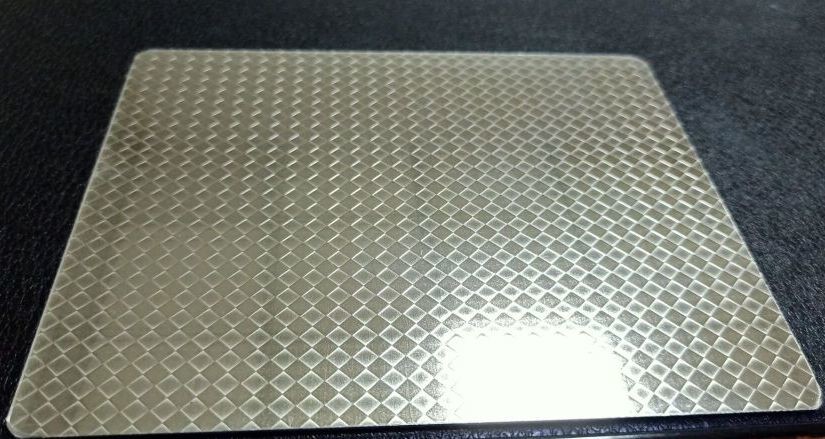

Pattern steel plates: Various patterns available

Our A4 and A3 laminating pattern steel plates are manufactured using advanced production techniques, known for their unique quality and resilience. The product's longevity and reliable performance have created significant market demand.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSP-P

Minimum Order Quantity:	100PCS
Price:	negotiable
Packaging Details:	1 plywood case based on order qty and size
Delivery Time:	10-15days after receiving the prepayment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000PCS per 10days
