Name: 0.4mm - 1.0mm Smart Card Material Silk Laminated Steel Plate For RFID Card Production
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YSP-S
Availability: InStock

Detail Information

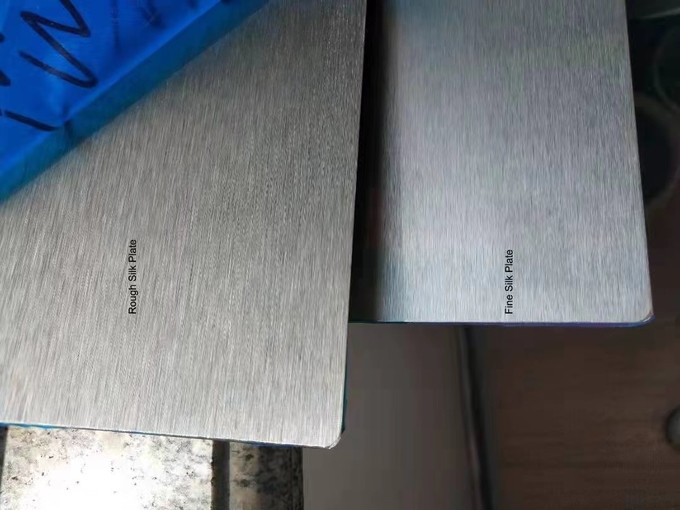

Surface:	Fine Silk/Rough Silk	Plate Size:	A4,A3,A3+ Or Customized
Usage:	Plastic RFID Card	Dimension Tolerance:	±1mm For Length And Width.
Feature:	Two Sides Have The Silk Pattern In The Same Quality	Plate Edge:	Round Curved Corners
Highlight:	1.0mm Smart Card Material , RFID Smart Card Material , Silk Laminated Steel Plate

Product Description

Silk Lamination Steel Plate RFID Inlay Card Laminating Prelam Production Materials YSP-S

Product Attributes

Attribute	Value
Surface	Fine silk/Rough silk
Plate size	A4,A3,A3+ or customized
Usage	Plastic RFID Card
Dimension tolerance	±1mm for length and width
Feature	Two sides have the silk pattern in the same quality
Plate edge	Round curved corners

Product Overview

These steel plates serve as essential consumables in plastic card lamination, ensuring perfect surface finish for RFID cards. Widely used by card manufacturers globally, our plates offer superior heat conduction, pressure resistance, and high-quality mirror finish for producing international standard cards.

Key Features

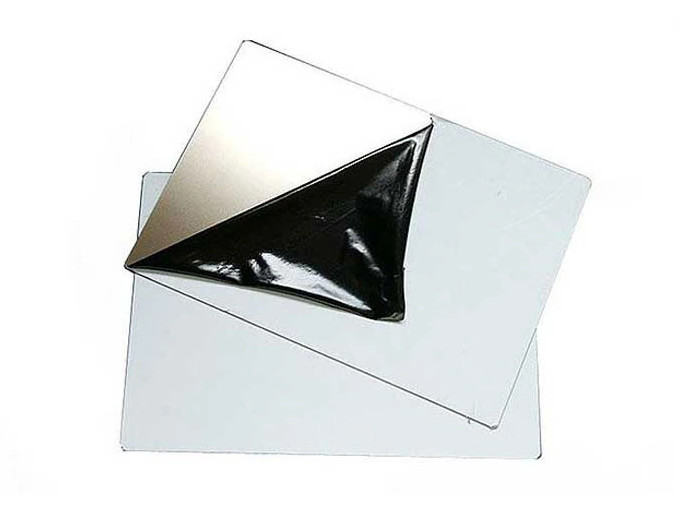

Both surfaces protected by blue films (no residual glue after removal)
Consistent gloss/matte quality on both sides
Free from scratches, dents, stripes, shadows, and dust
Smooth, deburred edges with rounded corners
Non-stick surface prevents adhesion to laminated plastic sheets

Specifications

Parameter	Details
Product name	Silk Lamination Steel Plate
Thickness	0.4mm-1.0mm
Surface options	Mirror, glossy, matte, silk, patterned or custom
Material	304BA stainless steel
MOQ	50pcs (free samples available)
Application	Smart card laminating process

Technical Parameters

Plate size	A4, A3 or custom-made
Thickness tolerance	±0.05mm
Flatness level	Maximum 1 mm.m
Surface roughness	Fine silk/Rough silk
Surface glossiness	Over 800 GU at 20° (both sides)
Surface hardness	HRC26±2
Thermal transmission	0.04cal/℃.cm.sec at 20℃
Packaging	Plywood carton with cushion protection

Product Variants

Available in five specialized surface types:

Glossy steel plates
Matte steel plates (ideal for planographic and inkjet coding)
Silk matte steel plates
Grained matte steel plates
Custom pattern steel plates

Standard sizes: 100×120mm, 210×297mm (A4), 210×320mm, 325×480mm, 340×500mm or custom

Available thicknesses: 0.6mm, 0.8mm, 1.0mm

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSP-S

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	10-15days after receiving the prepayment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000pcs per month
