Detail Information

Process Method:	Cold Rolled Stainless Steel Plate	Normal Thickness:	From 0.4-1.0mm
Thickness Tolerance:	±0.05mm	Plate Flatness Level::	Maximum 1 Mm.m
Surface Hardness:	HRC26±2	Glossy Plate Surface Glossiness:	Over 800 GU At 20° (both Sides)
Highlight:	PVC Smart Card Material , Smart Card Material 0.8mm , A3 Lamination Steel Sheet

Product Description

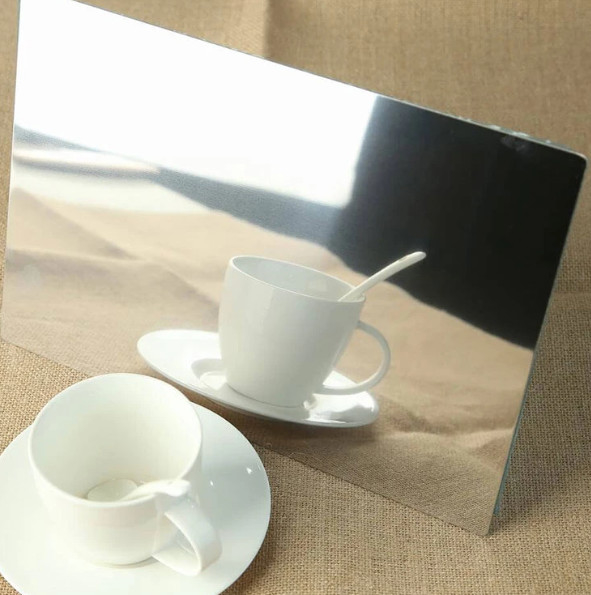

Mirror Finish PVC Card Lamination Steel Plate 0.8mm A3 Size Plastic Card Press Plate

Product Specifications

Process Method	Cold rolled stainless steel plate
Normal Thickness	0.4-1.0mm
Thickness Tolerance	±0.05mm
Plate Flatness Level	Maximum 1 mm.m
Surface Hardness	HRC26±2
Surface Glossiness	Over 800 GU at 20° (both sides)

Product Overview

The Mirror Finish PVC Card Lamination Steel Plate is an essential consumable for plastic card lamination processes, ensuring perfect surface finish on laminated cards. Widely used by card manufacturers worldwide, these plates are also known as high glossy lamination plates or mirror laminating plates.

Key Features

Both surfaces protected with blue films that leave no residue when removed
Consistent glossy or matte finish on both sides
Free from scratches, dents, stripes, shadows, and dust
Smooth, deburred edges with rounded corners
Non-stick surface prevents adhesion to laminated plastic sheets

Technical Specifications

Parameter	Specification
Plate Size (L×W)	A4, A3 or custom sizes
Plate Thickness	0.4mm, 0.6mm, 0.8mm, 1.0mm (±0.05mm tolerance)
Dimension Tolerance	±1mm for length and width
Surface Roughness	Ra＜0.03μm (glossy plate)
Thermal Transmission	0.04cal/℃.cm.sec at 20℃
Packaging	Solid plywood carton with soft cushion protection

Product Images

Applications

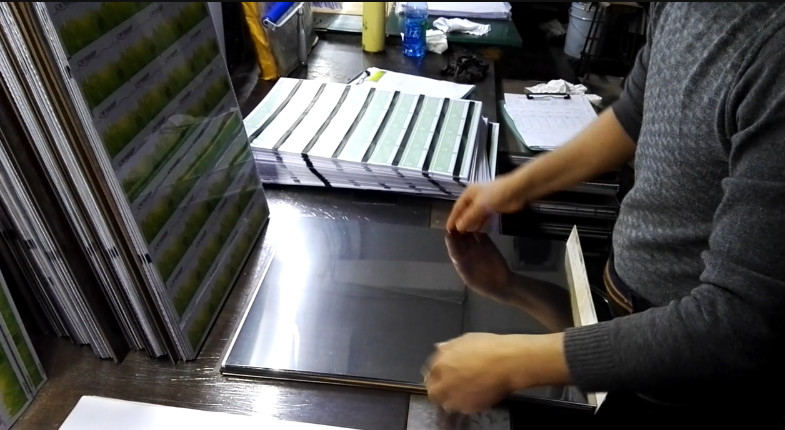

These mirror finish steel plates are essential for smart card laminating processes, also known as mirror finish plastic card laminating plates or high glossy card press steel plates. They are widely used in the production of various plastic cards requiring superior surface finish.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSP-G

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	around 10-15 days after receiving the prepayment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000pcs per month
