Heatproof White Silicon Rubber Cushion Pad 210x297mm For Card Lamination

Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YRP-2
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Export standard plywood case or carton package
Delivery Time: 70-10 days after receiving the prepayment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters
Get Best Price
Chat Now
Detail Information
Application: Heatproof With Great Durability Character: Good Cushioning Performance
Heat Transfer: Quickly And Evenly Hardness SHORE A: 55±5
Common Thickness: Around 3mm Origin: China
Highlight:

Rubber Cushion Pad 210x297mm

,

Heatproof Silicon Cushion Pad

,

Silicon Cushion Pad 210x297mm


Product Description

Bank Card Press Pad 210x297mm Heatproof White Silicon Rubber Cushion Pad YRP-2
Product Attributes
Attribute Value
Application Heatproof with great durability
Character Good cushioning performance
Heat transfer Quickly and evenly
Hardness SHORE A 55±5
Common thickness Around 3mm
Origin China
Product Overview

The White Silicon Rubber Cushion Pad is designed for the lamination process of various plastic cards including bank cards, credit cards, and royalty cards. It works with lamination steel plates in the plastic card lamination process.

The structure consists of white heatproof silicon rubber layers on the surfaces with glass filler in the middle.

Facing material: High-temperature endurable felt
Middle material: Black silica gel
Rigidity: 50±5
Tensile strength: 60 N/mm
Adhesion: 4.5 N/mm
Heat-resistant temperature: 200℃
Color: White
Key Features
  • Heatproof with great durability, meeting technological requirements in plastic card lamination
  • Transfers heat quickly and evenly, improving production efficiency and energy conservation
  • Excellent high temperature resistance and elastic resilience
  • Superior cushioning performance prevents damage and scratching between laminator template and steel plates
  • Extends service life of both lamination steel plates and templates
Technical Specifications
Parameter Value
Heatproof performance 200℃
Tensile strength 60 N/mm
Adhesion 80 N/mm
Hardness SHORE A 55±5
Thickness 3mm
Length and width A4, A3 or custom-made size (tolerance: ±1mm)

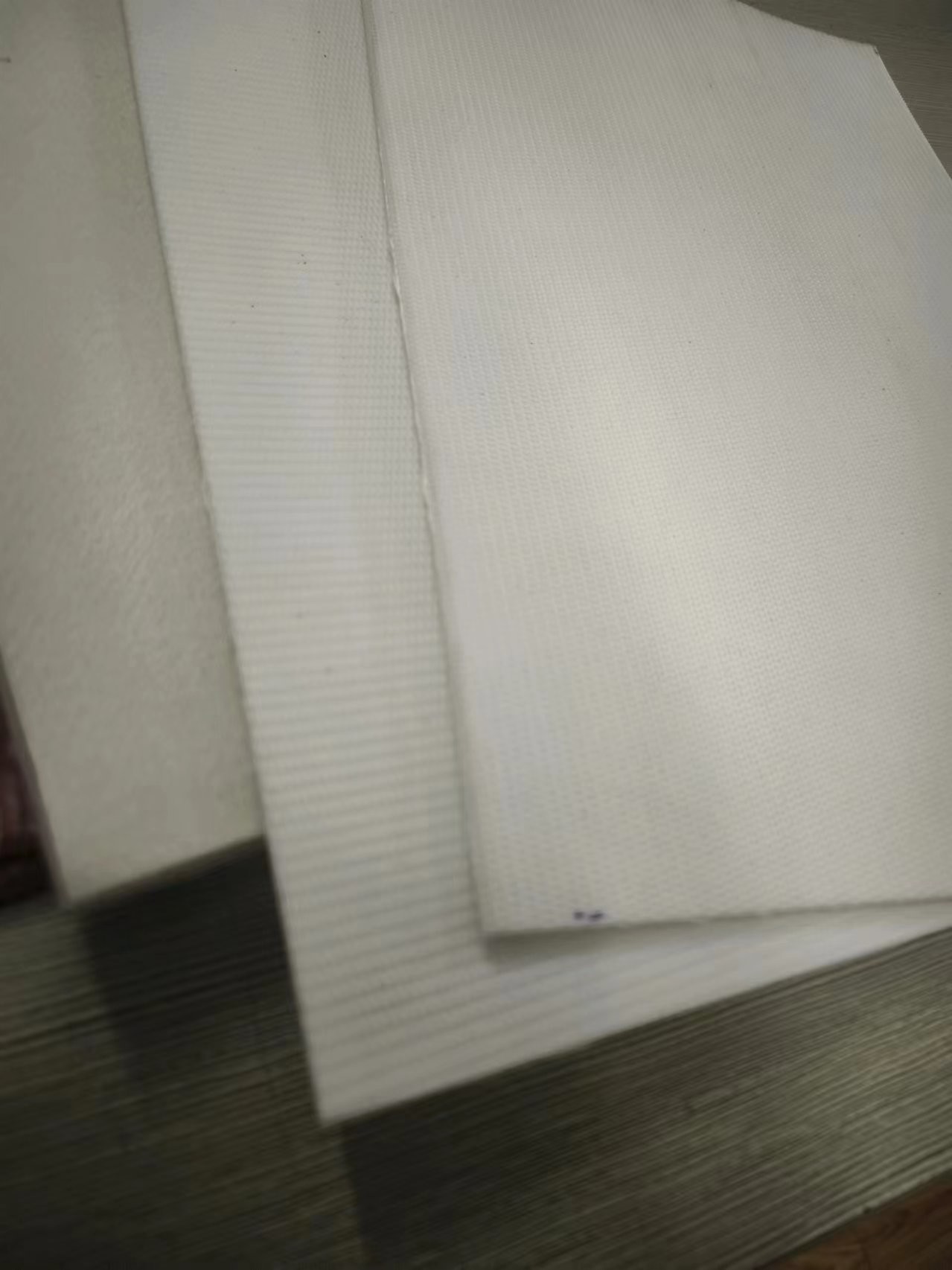

Heatproof White Silicon Rubber Cushion Pad 210x297mm For Card Lamination 0
Additional Specifications
Model number MRP-1
Thickness 1.5-3.5mm (tolerance: ±0.05mm)
Pad size Sheet, A3, A4 or custom-made size
Breaking strength 80 Mpa
Hardness SHORE A 55±5
Adhesive force 2.5 N/mm
Breaking extensibility 350

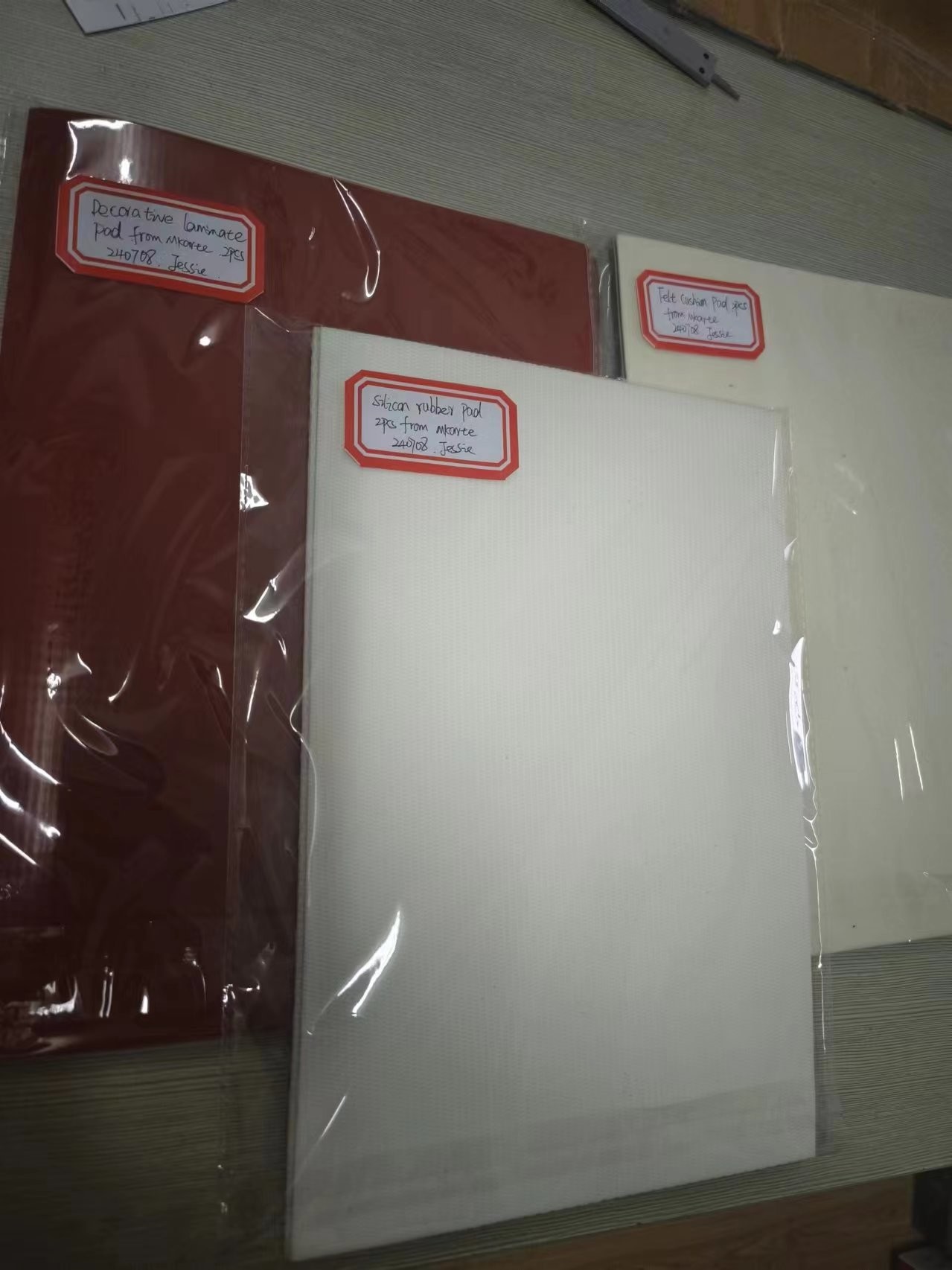

Heatproof White Silicon Rubber Cushion Pad 210x297mm For Card Lamination 1
Applications

Also known as laminating cushion pad, lamination pad, rubber pad, card laminator's cushion pad, silicon rubber pad or plastic card lamination pad.

Used in manufacturing various ISO PVC cards, ID cards and smart cards. The woolen silicone press cushion pad in A4 size is ideal for PVC ID card laminating, providing balanced temperature and pressure during the lamination process.

Benefits
  • High temperature and pressure resistance
  • Fast and even heat transfer improves card quality
  • Excellent absorbent performance eliminates bubble and watermark risks
  • Increases product qualification rate
  • Protects equipment from scratches and extends service life

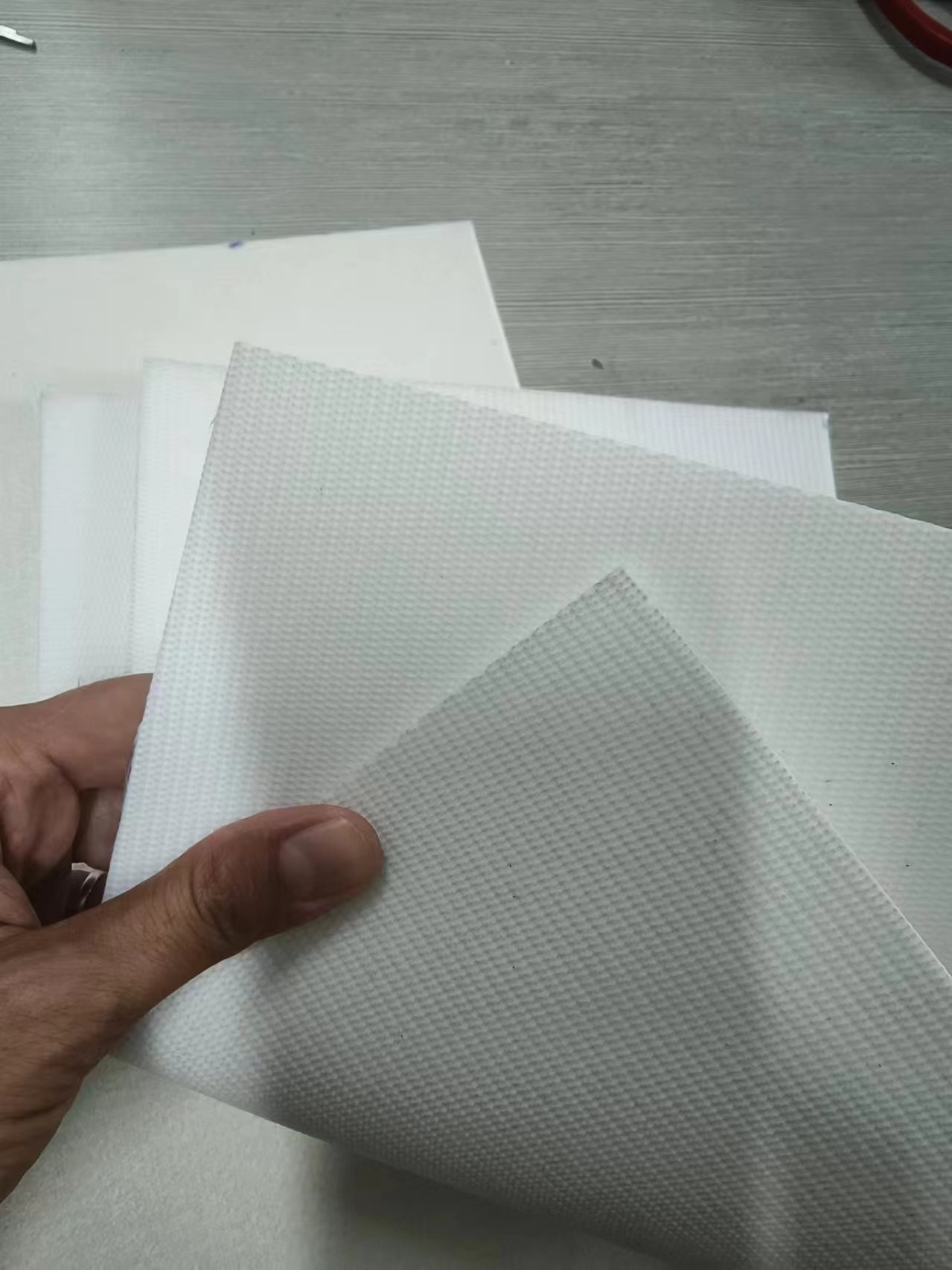

Heatproof White Silicon Rubber Cushion Pad 210x297mm For Card Lamination 2
