Detail Information

Surface Character:	Two Sides With Protection Film	Appreance:	One Side Special Pattern Only
Dimension Tolerance:	±1mm For Length And Width.	Application:	High Quality Smart Card Production Materials
Loading Port:	Shenzhen Etc	Origin:	China
Highlight:	Lamination Smart Card Material , Steel Smart Card Material , 1.0mm Lamination Steel Panel

Product Description

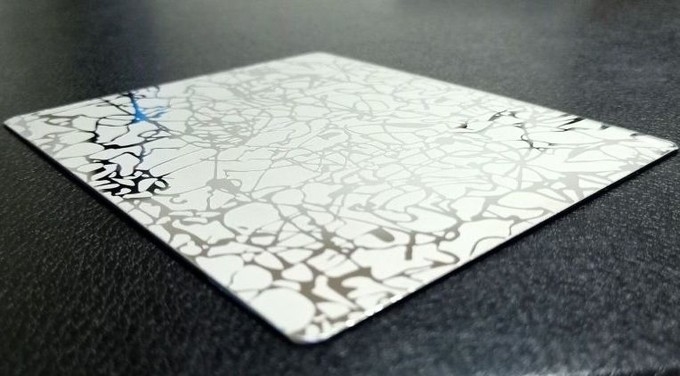

Special Pattern Card Pressing Steel Plate 1.0mm Smart Card Production Materials YSP-S

Product Attributes

Surface character	two sides with protection film
Appearance	One side special pattern only
Dimension tolerance	±1mm for length and width
Application	High Quality Smart Card Production Materials
Loading port	Shenzhen etc
Origin	China

Product Description

Special Pattern Card Pressing Steel Plate 1.0mm High Quality Smart Card Production Materials YSP-S is also called card lamination steel plate, laminator steel plate, textured laminating steel plate, special pattern lamination plate, card finish lamination plate, card production material.

Introduction

Special pattern lamination steel plates are mainly used for personalized pattern finish card lamination. It can well ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.

Features

One side (pattern side) is covered with protection foils (blue thin films) to ensure good protection
Only one side has the special pattern and another side has no pattern which will not contact the card surface in laminator
There are no scratches and dust on pattern surface and possibly there is slight scratch on another non-pattern side
The edges are smooth and deburred with the round curved corners

Technical Parameters

Plate size(L×W)	A4, A3 or custom-made size
Plate thickness	0.4mm, 0.6mm, 0.8mm, 1.0mm (Thickness tolerance: ±0.05mm)
Dimension tolerance	±1mm for length and width
Plate flatness level	maximum 1 mm.m
Surface Feature	special pattern
Surface hardness	HRC26±2
Thermal transmission	0.04cal/℃.cm.sec at 20℃
Packaging box	solid plywood carton with soft cushion protection inside

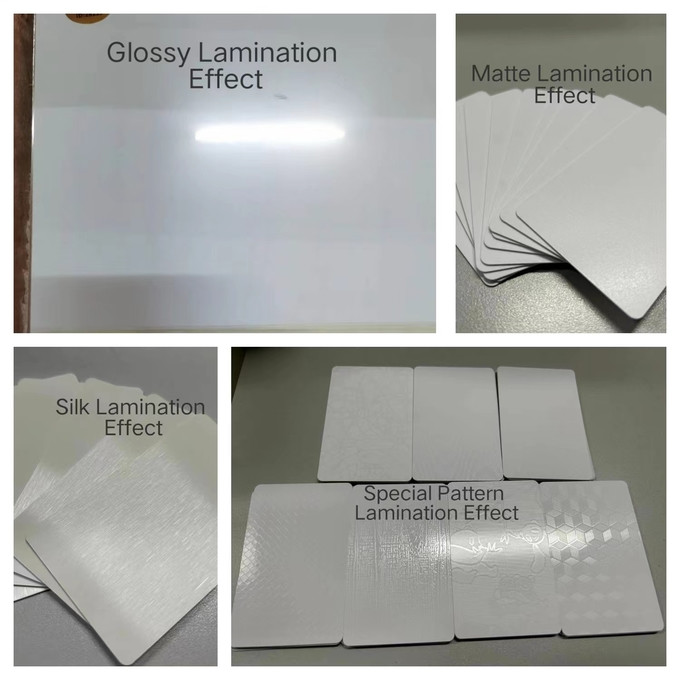

Applications

There are five kinds of steel plates:

Glossy/Mirror finish steel plates: normal mirror effect, for planographic code and inkjet code
Matte steel plates-Fine matte (Ra:0.25-0.5um): on the surface there are tiny lights, thin and lubricious, for planographic code and inkjet code
Coarse matte steel-Heavy matte (Ra:1.0-2.0um): Platoon lights on the surface, too coarse for planographic code
Silk-Satin finish plate for RFID inlay production (fine silk and fine silk): no lights on the surface, moderate coarse
Pattern steel plates: There are kinds of pattern for plates

Product name	Special Pattern Card Pressing Steel Plate 1.0mm High Quality Smart Card Production Materials YSP-S
Thickness	0.4mm-1.0mm
Surface	mirror, glossy, matte, silk, special patterned or as required
Material	304BA stainless
MOQ	50pcs, free sample available
Packing	Standard export packing for stainless steel sheet
Application	Smart card laminating process

Backed by a team of adroit professionals, we are actively engrossed in supplying the top-of-the-line A4 and A3 Laminating Pattern Steel Plates for Card Making that is popularly known among our customers owing to its unique quality and resilience. These patterns steel plates are made in our ultra-advanced production site with the help of pioneering in-house tools and techniques. Due to its longevity and reliable performance, we are seeing a huge demand for the product in the marketplace.

Our Service

Pre-sale

Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for brick machine production line)
Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
Efficient on-line service
Welcome to visit our factory and production line any time, if you need, we can make invitation letter for you
Introduce the company file, product categories and production process

Sale

Update the production scheduling in time
Quality supervision
Product acceptance
Shipping on time

After-sale

The engineer will guide to carry out the plant at the clients side if needed
Set up, fix, and operate
Offer training to the operator until they are satisfied at clients side
Skill support the whole using life
Recall clients regularly, get feedback in time, keep well communication with each other

Guarantee

We can supply one year guarantee period for our card machines, if the client have any question, they could contact our service department any time, we will supply efficient service
Within one year, if the client meet the unsolvable questions, we can make site supporting

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSP-P

Minimum Order Quantity:	50PCS
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	10-15days after receiving the prepayment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000PCS per 10days
