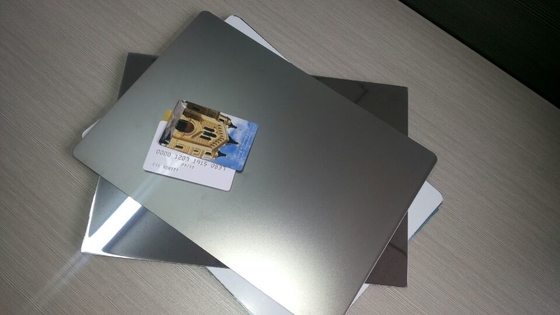

Name: 0.6mm Semi Matte Smart Card Material Lamination Steel Plate For PVC Card Making
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YSP-M
Availability: InStock

Detail Information

Sheet Size:	210x297mm Or 310x480mm Custom-made Size	Common Thickness:	0.5mm,0.6mm, 0.8mm 1.0mm Etc
Application:	PVC Card Making	Dimension Tolerance:	±1mm For Length And Width.
Surface Roughness:	Matte Plate (Ra=0.3μm - 2.0μm)	Thermal Transmission:	0.04cal/℃.cm.sec At 20℃
Highlight:	0.6mm Smart Card Material , Semi Matte Smart Card Material , 0.6mm Lamination Steel Plate

Product Description

A4 0.6mm Semi Matte Rough Matte Lamination Press Steel Plate for PVC Card Making

Product Attributes

Attribute	Value
Sheet size	210x297mm or 310x480mm custom-made size
Common thickness	0.5mm, 0.6mm, 0.8mm, 1.0mm etc
Application	PVC Card Making
Dimension tolerance	±1mm for length and width
Surface roughness	Matte plate (Ra=0.3μm - 2.0μm)
Thermal transmission	0.04cal/℃.cm.sec at 20℃

Product Description

A4 0.6mm Semi Matte Rough Matte Lamination Press Steel Plate for PVC Card Making YSP-M is designed as consumables for plastic card lamination, ensuring perfect surface finish after the process. Widely used by card manufacturers globally, these plates offer excellent heat conduction, pressure resistance, and high-quality surface finish.

Key Features

Both sides are protected with blue films that leave no residue when removed
Consistent glossy or matte finish quality on both surfaces
Free from scratches, dents, stripes, shadows, and dust
Smooth edges with rounded corners for safety
Non-stick surface prevents adhesion to laminated plastic sheets

Product name	A4 0.6mm Semi Matte Rough Matte Lamination Press Steel Plate
Width	1240mm/1500mm/1800mm/2000mm/2200mm or custom sizes
Thickness	0.4mm-1.0mm
Surface	Mirror, glossy, matte, silk, patterned or custom finishes
Material	304BA stainless steel
MOQ	50pcs, with free samples available
Packing	Standard export packaging with surface polish, bundle package, wooden case/pallet, or custom options
Application	Smart card laminating process

Technical Parameters

Plate size (L×W)	A4, A3 or custom-made sizes
Plate thickness	0.4mm, 0.6mm, 0.8mm, 1.0mm (±0.05mm tolerance)
Dimension tolerance	±1mm for length and width
Plate flatness level	Maximum 1 mm.m
Surface roughness	Matte plate (Ra=0.3μm - 2.0μm)
Glossy plate surface glossiness	Over 800 GU at 20° (both sides)
Surface hardness	HRC26±2
Thermal transmission	0.04cal/℃.cm.sec at 20℃
Packaging box	Solid plywood carton with soft cushion protection

Additional Details

Also known as semi matte finish plastic card laminating plate or heavy matte lamination steel plate, this product is available in five surface variations:

Glossy steel plates
Matte steel plates (with tiny lights for planographic and inkjet codes)
Silk matte steel plates
Grained matte steel plates
Special pattern steel plates

Standard sizes: 100mm×120mm; 210mm×297mm; 210mm×320mm; 325mm×480mm; 340mm×500mm or customized

Available thicknesses: 0.6mm, 0.8mm, 1mm

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSP-M

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	10-15days after receiving the prepayment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000pcs per month
