Detail Information

Plate Size(L×W):	A4, A3 Or Custom-made Size	Plate Thickness:	0.8/1.0 Mm (Thickness Tolerance: ±0.05mm)
Dimension Tolerance:	±1mm For Length And Width.	Plate Flatness Level:	Maximum 1 Mm.m
Surface Pattern:	Fine Silk/Rough Silk	Surface Hardness::	<=HRC26
Highlight:	1.0mm Smart Card Material , Silk Pattern Smart Card Material , RFID Inlay Laminating Steel Plate

Product Description

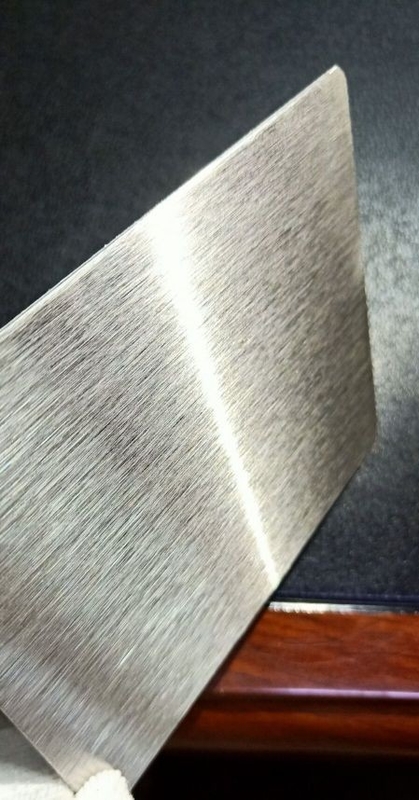

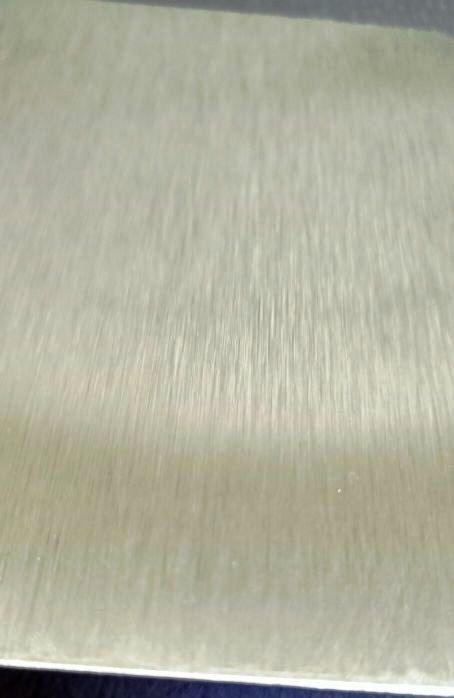

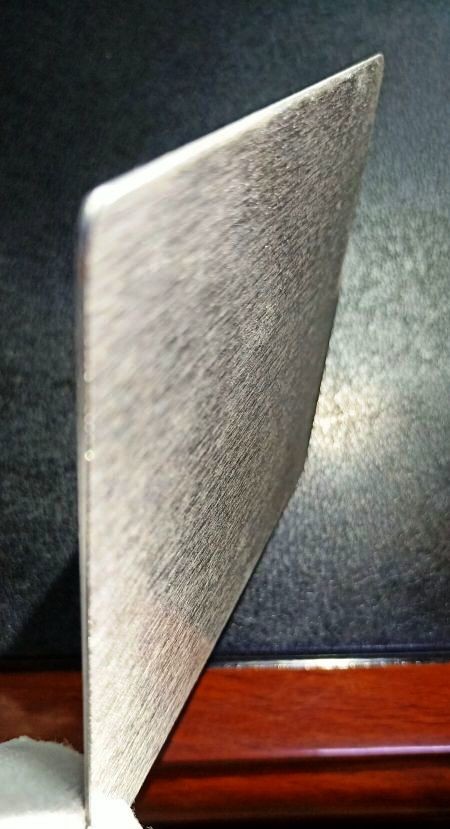

RFID Inlay Prelam Laminating Silk Pattern Card Lamination Steel Plate 0.8mm 1.0mm Thick

Product Specifications

Attribute	Value
Plate size(L×W)	A4, A3 or custom-made size
Plate thickness	0.8/1.0 mm (Thickness tolerance: ±0.05mm)
Dimension tolerance	±1mm for length and width
Plate flatness level	maximum 1 mm.m
Surface pattern	Fine silk/Rough silk
Surface hardness	<=HRC26

Product Description

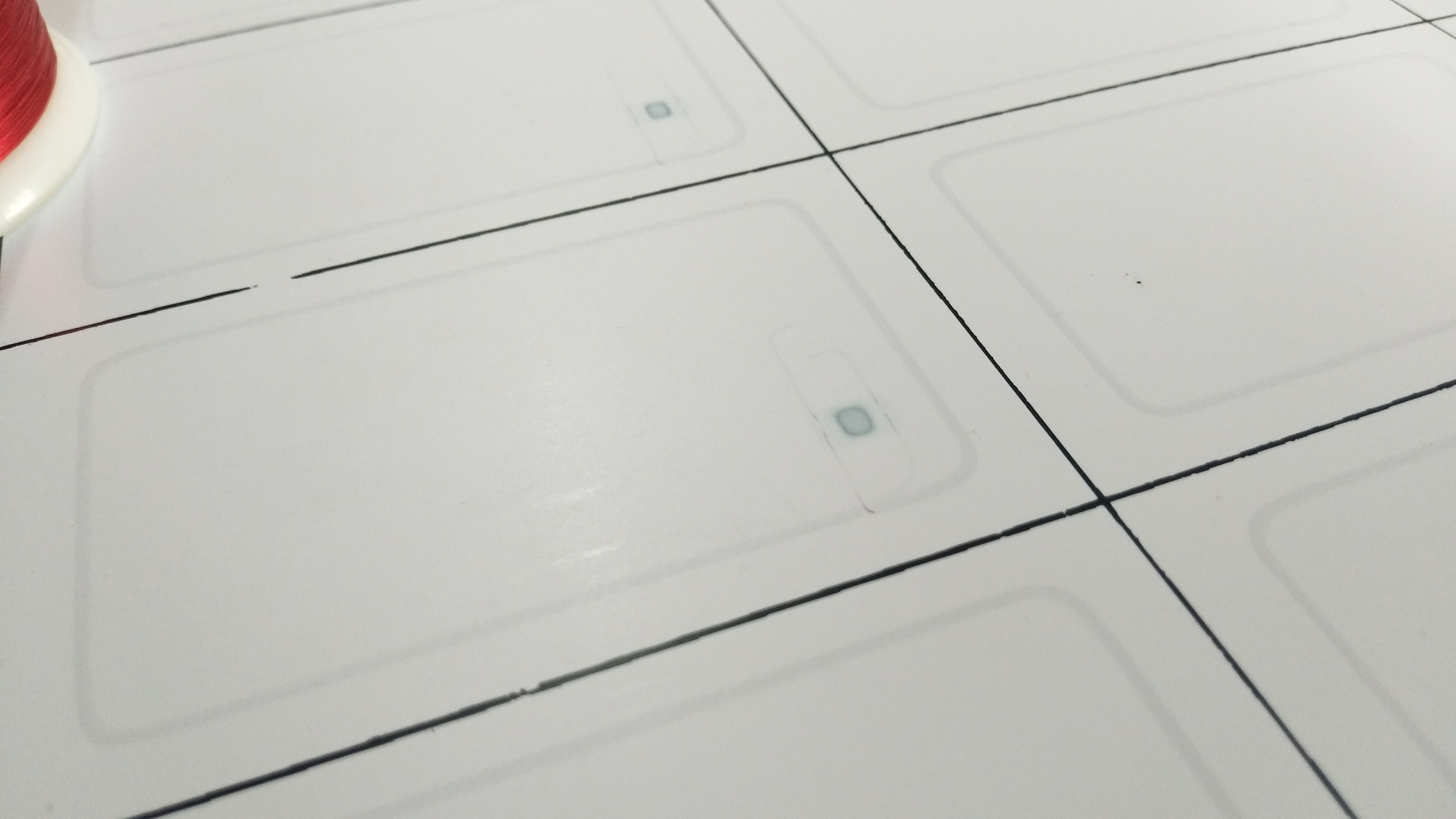

Silk pattern lamination steel plates are primarily used for INLAY (Prelam) sheet lamination to achieve silk rough surface finish on INLAY sheets after lamination. These plates ensure perfect plastic card surface finish and are widely used by card manufacturers globally.

Key Features

Both sides feature protective foils (blue thin films) that ensure surface protection with no residual glue after removal
Identical silk pattern quality on both surfaces
Free from scratches, dents, stripes, shadows, and surface dust
Smooth, deburred edges with rounded corners
Non-stick surface prevents adhesion to laminated plastic sheets

Technical Parameters

Thermal transmission	0.04cal/℃.cm.sec at 20℃
Packaging	Solid plywood carton with soft cushion protection

Applications

Our premium steel plates are imported from top raw material suppliers, offering excellent heat conduction, pressure resistance, and high-quality mirror finish. With over 10 years of industry experience, we supply plates that meet international standards for card production.

Available Steel Plate Variants

Glossy/Mirror finish: Standard mirror effect for planographic and inkjet coding
Fine matte (Ra:0.25-0.5um): Thin, lubricious surface with tiny lights
Coarse matte (Ra:1.0-2.0um): Heavy matte surface with platoon lights
Silk-Satin finish: Moderate coarse surface ideal for RFID inlay production
Pattern plates: Various surface patterns available

Available Sizes: 100×120mm, 210×297mm (A4), 210×320mm, 325×480mm, 340×500mm, and custom sizes
Available Thicknesses: 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSP-S

Minimum Order Quantity:	100PCS
Price:	negotiable
Packaging Details:	1 plywood case based on order qty and size
Delivery Time:	10-15days after receiving the prepayment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000PCS per 10days
