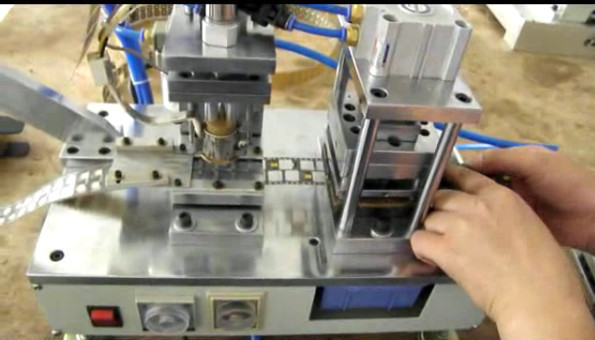

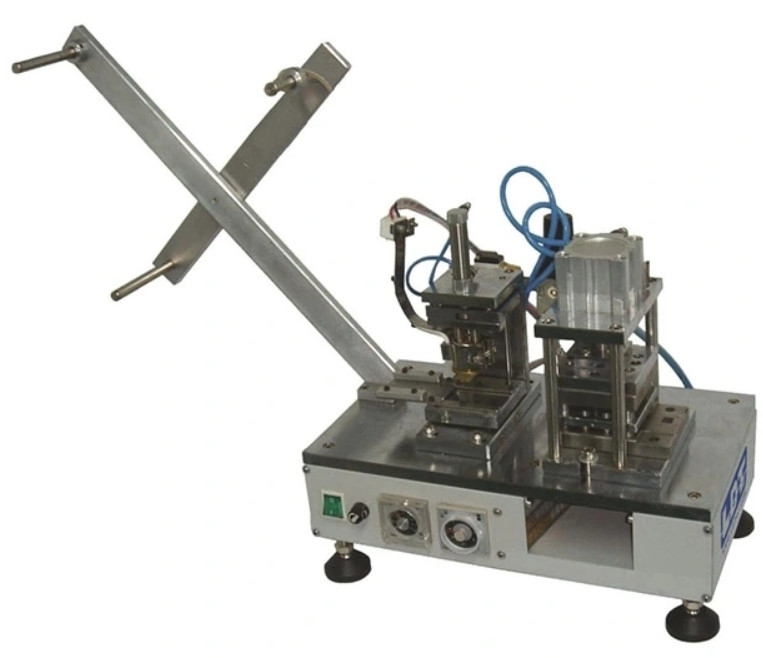

Manual Cutting IC Module Punching Machine Contact IC Card Module Cutter

The YMC-1 machine is designed for cutting single IC chips from IC Module tape after hot melt glue is pressed to the IC module bottom side.

Material releasing (glue tape wheel and chip reel wheel) → hot pressing station (stick the glue tape onto chip bottom by hot lamination) → chip cutting station (cut the chip tape into single pieces) → chip collection unit

• Speed: 4000-6000 units per hour
• Material model: M2/M3 standard chip tape
• Compressed air: 6 kg/cm2
• Air Consumption: 10 L/min.
• Power: 0.4KW
• Power supply: AC220V 50/60HZ4
• Weight: 30 KG
• Dimension: L600×W300×H300mm

• Designed for manual cutting of single IC chips from various IC Module tapes
• Simple structure for easy operation and maintenance, ensuring long machine life and production efficiency
• Stable and safe operation requiring only one operator
• Adjustable temperature, time and pressure for hot melt glue
• Includes finished product collection device for easy operation and adjustment

Also known as: IC chip cutter, IC chip tape puncher, IC module tape cutter, IC card machine, smart card machine
