Name: PLC Servo System Contact Card Production Line Auto IC Card Slotter And Milling Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YIM-4000+
Availability: InStock

Detail Information

Dimension::	Approximately L1750xW800xH1850 Mm	Weight:	Around 650 KG
Power Supply:	AC 380V 50/60 HZ	General Power:	6.0 Kw
Compressed Air:	Approx. 50L/min	Control Mode:	PLC + Servo System
Card Specification:	ISO CR80/IEC7810 54x85.6mm	Speed:	3500~4500pcs/h
Highlight:	PLC Servo Contact Card Production Line , Contact Card Production Line Auto

Product Description

PLC + Servo System Contact IC Card Slotter and Milling Machine YIM-4000+ IC Chip Implanting for Plastic Card

Product Specifications

Dimension	Approximately L1750xW800xH1850 mm
Weight	Around 650 KG
Power supply	AC 380V 50/60 HZ
General power	6.0 kw
Compressed Air	Approx. 50L/min
Control Mode	PLC + Servo system
Card specification	ISO CR80/IEC7810 54x85.6mm
Speed	3500~4500pcs/h

Product Description

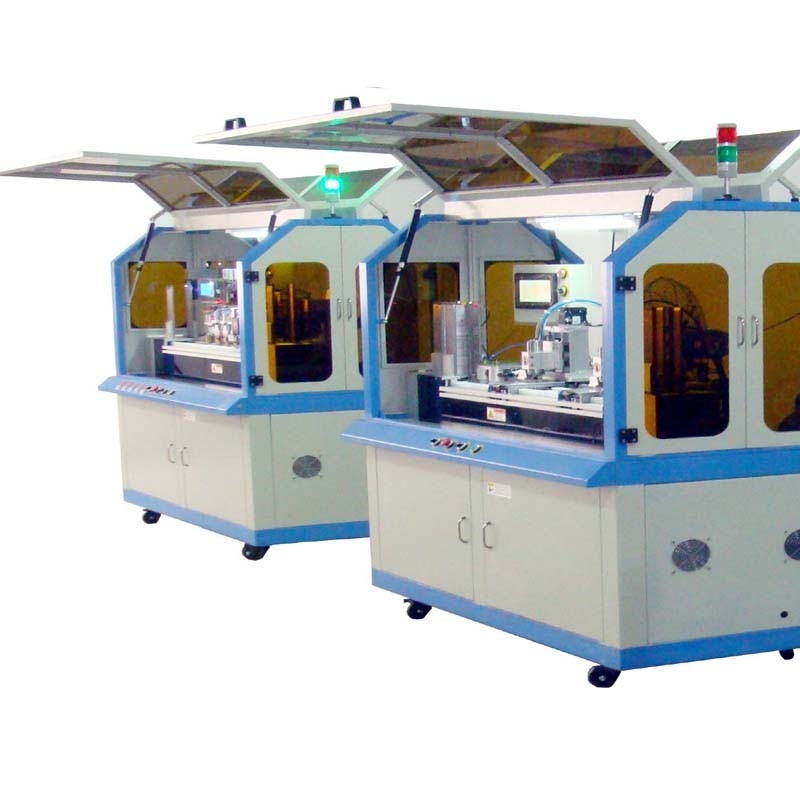

The Automatic Contact IC Card Slotter and Milling Machine YIM-4000+ is designed for precise and speedy milling of slots or cavities for IC chip implanting on plastic card surfaces. Featuring robust construction and reliable performance, this fully automatic machine is PLC-controlled for easy parameter setting and stable operation.

Key Features

Double-card conveying system enables simultaneous milling of two cards for high-speed operation

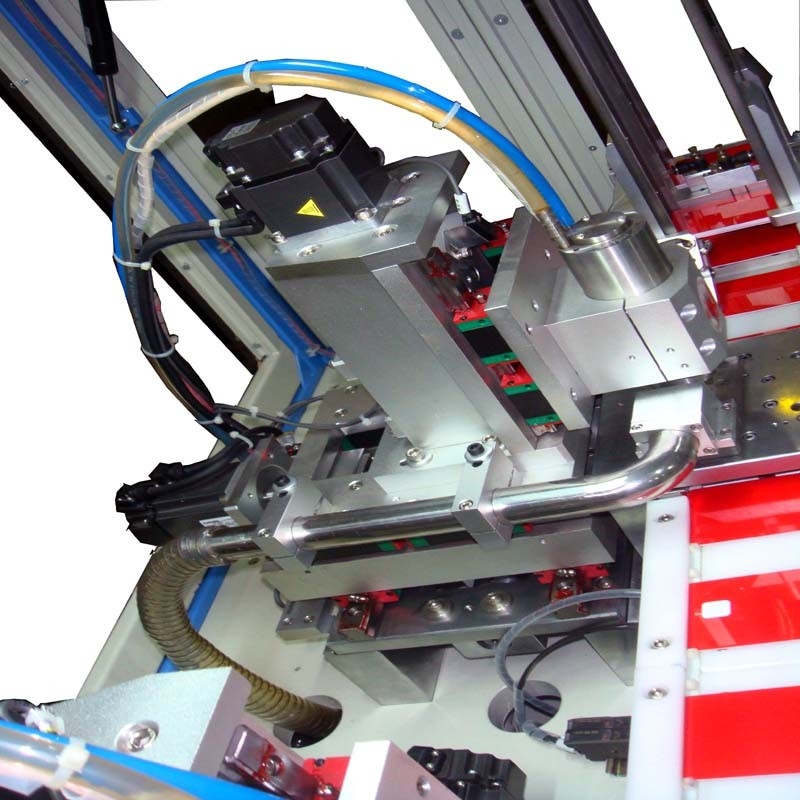

Three-shaft positioning control system with servo motor drive for precise slot milling
Independent parameter adjustment for each shaft maintains precision regardless of milling tool diameter tolerance
Automatic alarm and shutdown system for card overlapping, incorrect orientation, or milling depth issues (optional depth detection)

Technical Parameters

Power supply	AC 380V 50/60 HZ	Control method	PLC + Servo system
Total power	6.0 KW	Card specification	ISO CR80/IEC7810 54x85.6mm
Air source	6kg/cm² (dry)	Dimension	Approximately L1750xW800xH1850 mm
Air consumption	Approx. 50L/min	Milling precision	X/Y: ±0.015mm Z: ±0.010mm
Weight	Approx 650Kg	Operator	1 Person
Speed	3500~4500pcs/h

Applications

The YIM-4000+ is ideal for high-volume production of contact IC cards, offering stable performance through PLC control with easy parameter configuration for various card specifications.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YIM-4000+

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
