Name: High Speed And Precison Poker Card Punching Machine Full Automatic YLP-APC-800
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-APC-800
Availability: InStock

Detail Information

Output:	600~800 Big Sheets/hour	Suitable Material:	PVC, ABS, Paper Card
Punching Precise:	±0.10mm	Suitable Layout:	6x9 (570×585mm) , 5x11 (480 X 690mm)
Dimensions:	L2300×W900×H1750mm（according To The Punching Format ）	Weight:	1200kgs
Highlight:	High Speed Card Punching Machine , High Precison Card Punching Machine

Product Description

High Speed And Precision Poker Card Punching Machine Full Automatic YLP-APC-800

Product Specifications

Attribute	Value
Output	600~800 big sheets/hour
Suitable material	PVC, ABS, paper card
Punching precision	±0.10mm
Suitable layout	6x9 (570×585mm), 5x11 (480 x 690mm)
Dimensions	L2300×W900×H1750mm (according to the punching format)
Weight	1200kgs

Product Overview

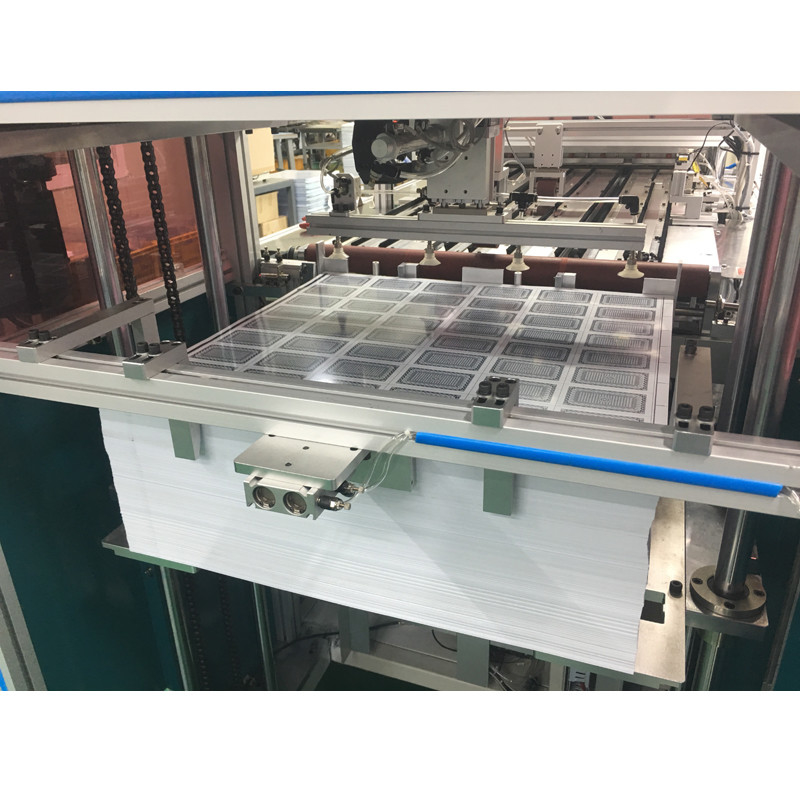

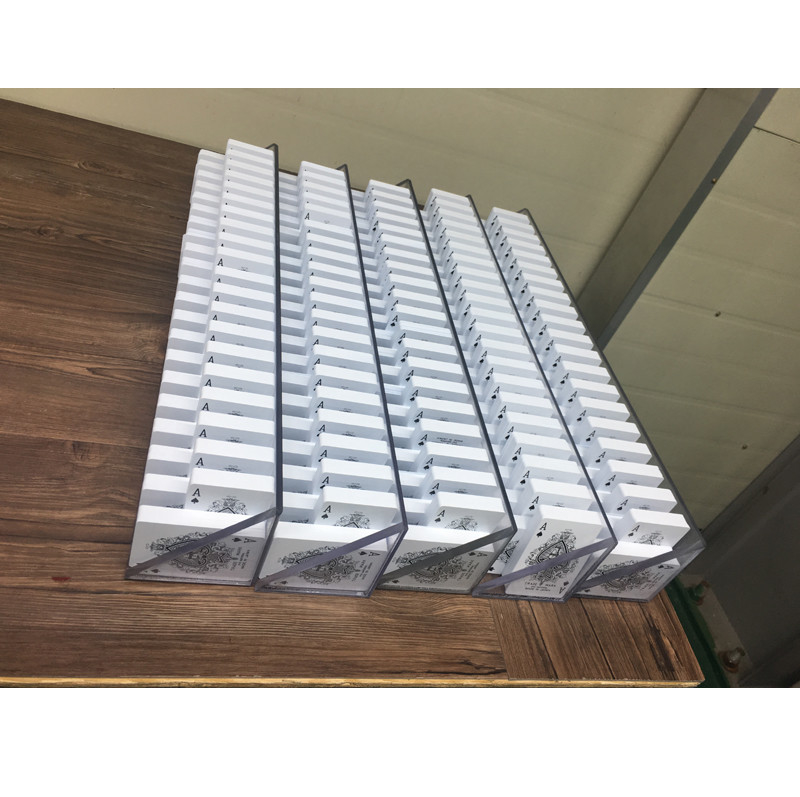

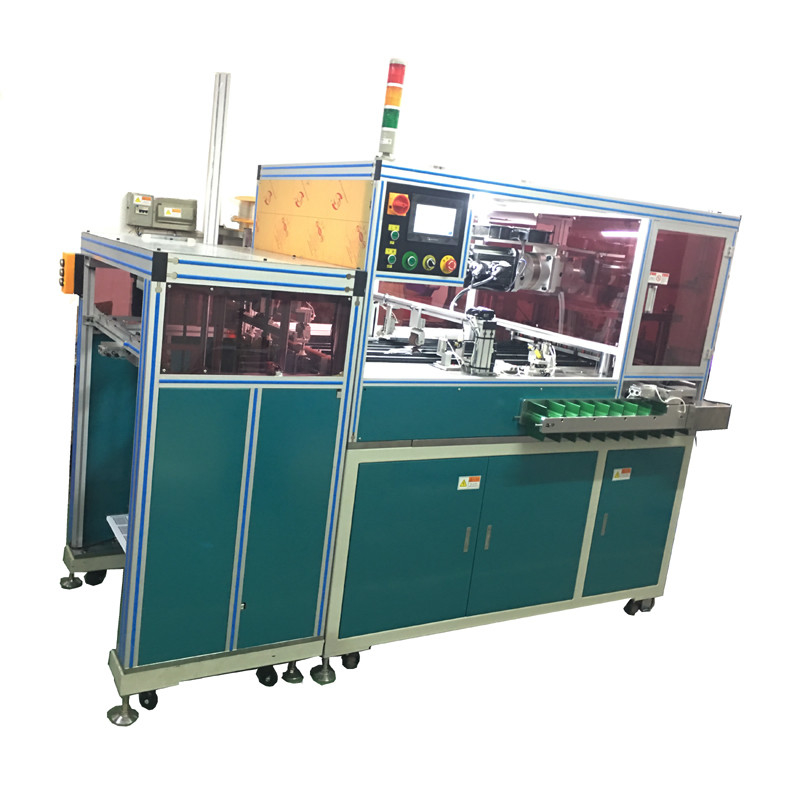

The High Speed and Precision Full Automatic Poker Card Punching Machine YLP-APC-800 is designed for punching poker playing card paperboard (typically 6*9 layout) into standard poker cards and collecting them as complete sets (typically 54 cards per set) with full automation and precision.

Key Features

High sensitivity photoelectric sensor and premium imported servo system for precise adjustment of each punching point
Imported ball screw guide for step feeding with high precision and long service life
Full automatic sheet suction and feeding system reduces labor requirements and improves efficiency
High power servo motor provides stable punching power with adjustable speed and low noise
Flexible operation with both automatic search cursor positioning and side positioning punching modes
PLC program control enables automatic operation with problem alarms and solution displays

Technical Parameters

Parameter	Specification	Parameter	Specification
Power supply	AC 380V/50 HZ	Suitable material	PVC, ABS, paper card
Power	7.5KW	Output	600~800 big sheets/hour
Air supply	6 kg/c㎡ (no water)	Control mode	PLC program + servo system
Punching precision	±0.10mm	Suitable layout	6x9 (570×585mm), 5x11 (480 x 690mm)
Number of operators	1 person	Dimensions	L2300×W900×H1750mm (according to punching format)
Weight	1200Kg

Applications

This machine is also known as Full Automatic Poker Playing Card Puncher, Full Auto Poker Playing Card Die Cutter, or Full Auto Poker Playing Card Die Cutting machine.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-APC-800

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	40-45days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	1 set per 45 days
