Name: Full Automatic Card Punching And Sorting Machine For Different Layouts And Card Materials
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-FAS-1000
Availability: InStock

Detail Information

Power Supply:	AC 380V/50 HZ	Productivity:	800~1000 Big Sheets/ Hour
Punched Card:	Comply With ISO CR-80-ISO7810 International Standard	Punching Precision:	±0.10mm
Card Numbers In The Card Slot:	About 400pcs Cards	Applicable Material:	PVC, ABS, Pet, PETG, Paperboard, PVC And ABS Mixed Materials, Etc. (different Materials Need To Match With Different Special Mould).
Highlight:	Card Punching And Sorting Machine , Full Automatic Card Punching , Full Automatic Card Sorting Machine

Product Description

Full Automatic Card Punching And Sorting Machine For Different Layouts And Card Materials

Product Specifications

Attribute	Value
Power Supply	AC 380V/50 HZ
Productivity	800~1000 big sheets/hour
Punched card standard	Comply with ISO CR-80-ISO7810 international standard
Punching precision	±0.10mm
Card numbers in the card slot	About 400pcs cards
Applicable Material	PVC, ABS, pet, PETG, paperboard, PVC and ABS mixed materials (different materials need to match with different special mould)

Product Overview

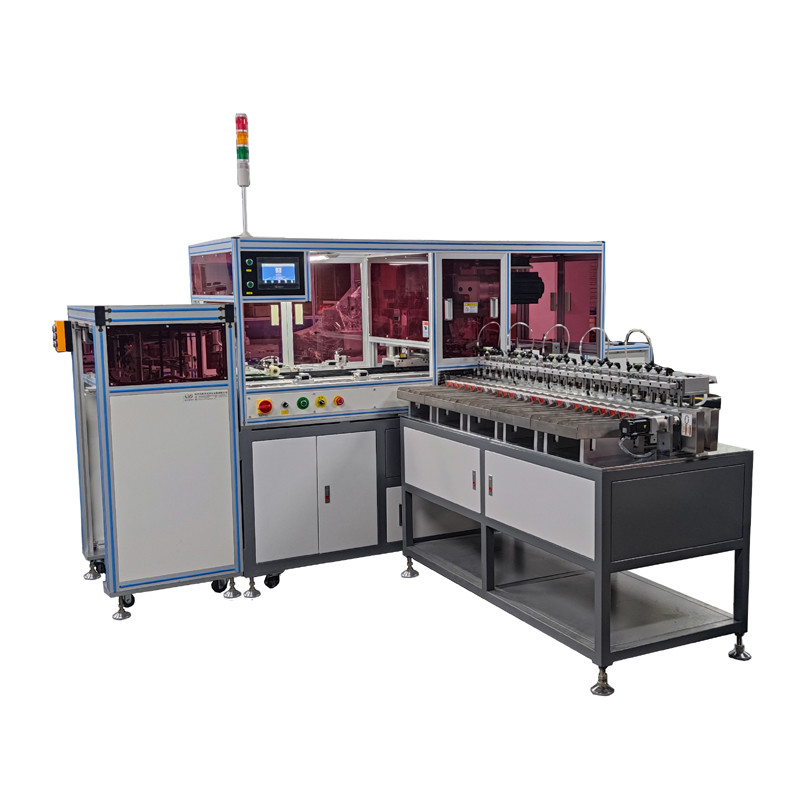

The Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 is designed for high-speed automatic punching of plastic cards with an efficient collection and sorting system. Controlled by PLC program with a bilingual (Chinese/English) touch screen interface.

Key Features

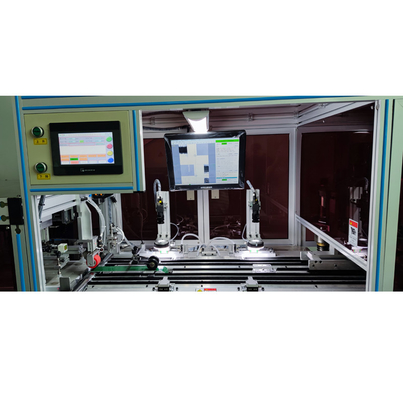

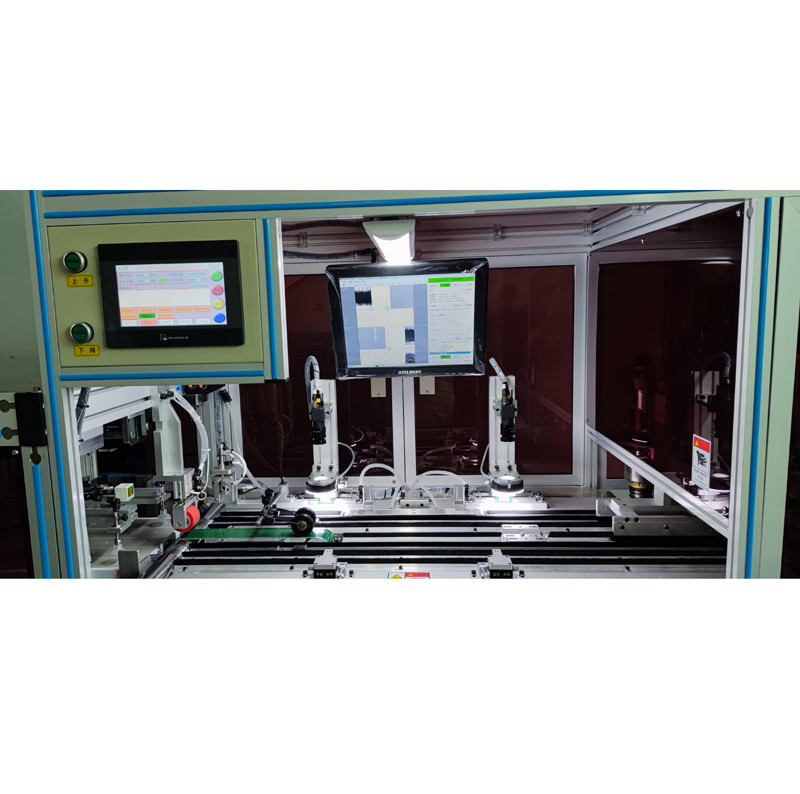

CCD vision inspection system with UVW correction platform for precise positioning and adjustable punching parameters
High-power servo motor provides low noise, fast speed, stable power and adjustable punching speed

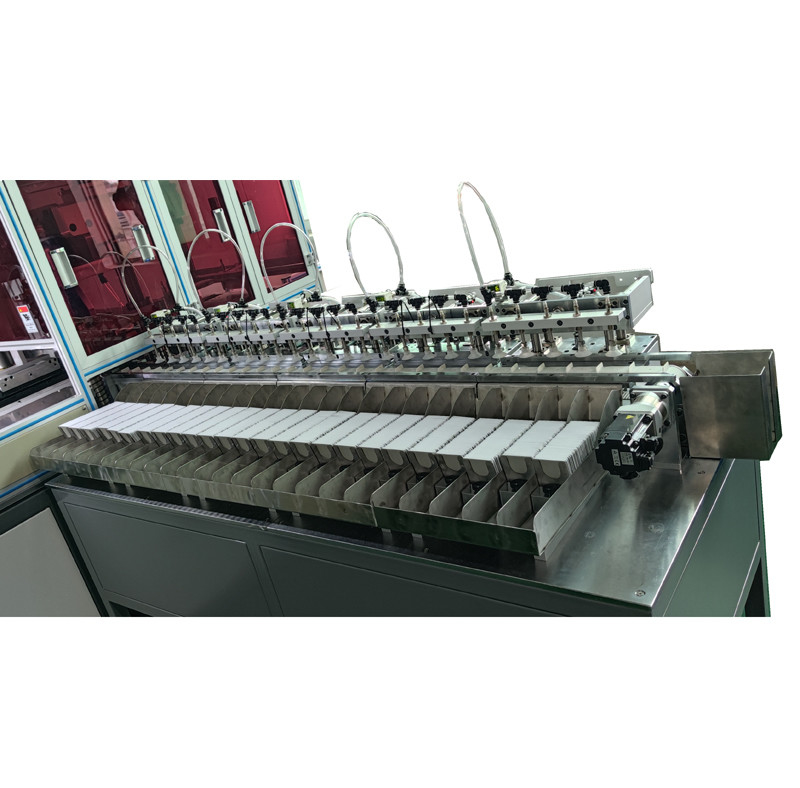

Advanced card sorting structure with adjustable pick-and-place position for reliable operation

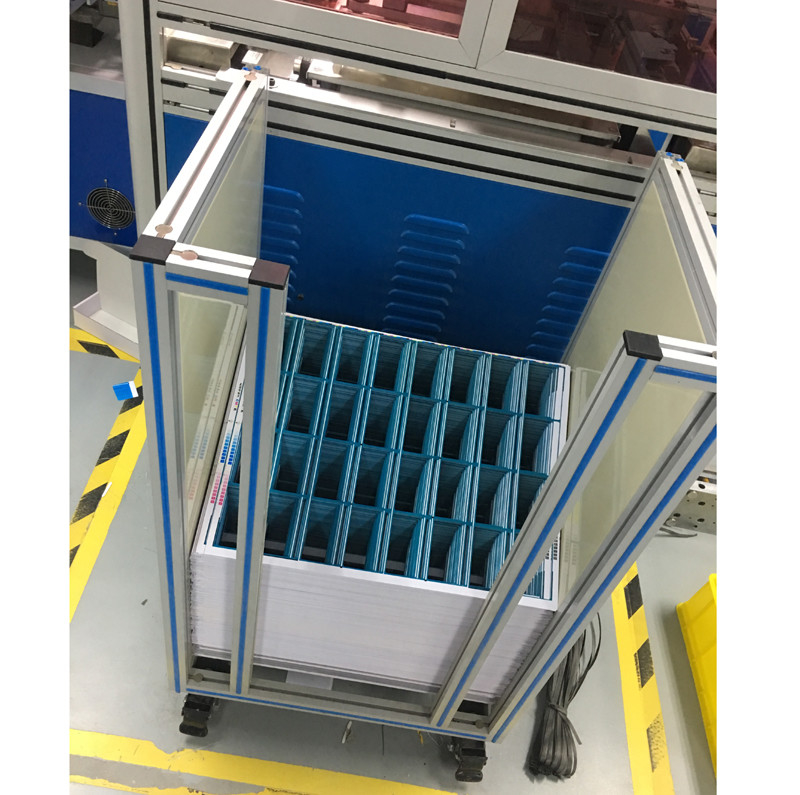

Automatic collection and sorting of punched cards by printed pattern layout
PLC program control with real-time monitoring, automatic shutdown and alarm functions

Technical Parameters

Power Supply	AC 380V/50 HZ
Power	10.5KW
Control mode	PLC program control + servo system
Air Source	6 kg/c㎡ (with no water)
Air consumption	About 150L/min
Operator number	One person
Dimension	L2600×W1240×H1750mm
Weight	About 1800Kg
Applicable Layout	5X5, 4X8, 6X8, 8X8...
Feeding height	Max 600 mm
Collecting height	Max 700 mm

Applications

Also known as Full Auto Card Puncher and Sorter, Full Auto Card Die Cutter and Sorter or Full Auto Card Die Cutting and Sorting Machine YLP-FAS-1000. Ideal for punching business cards and sheets with multiple different patterns.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-FAS-1000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	40-45days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	1 set per 45 days
