Contactless Card Chip Bonding Machine RFID Card INLAY Sheet Chip Antenna Bonder

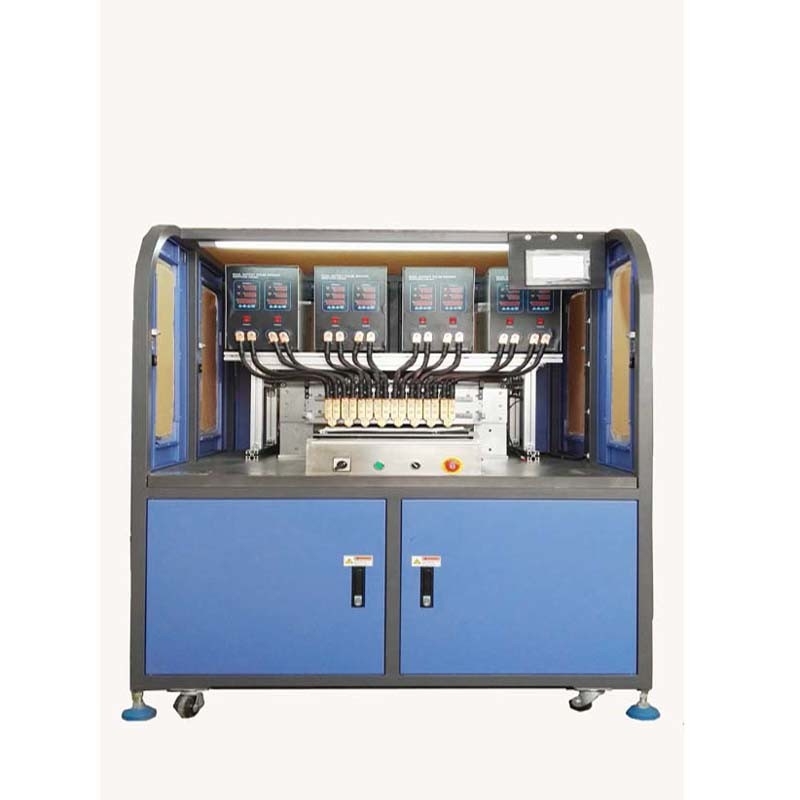

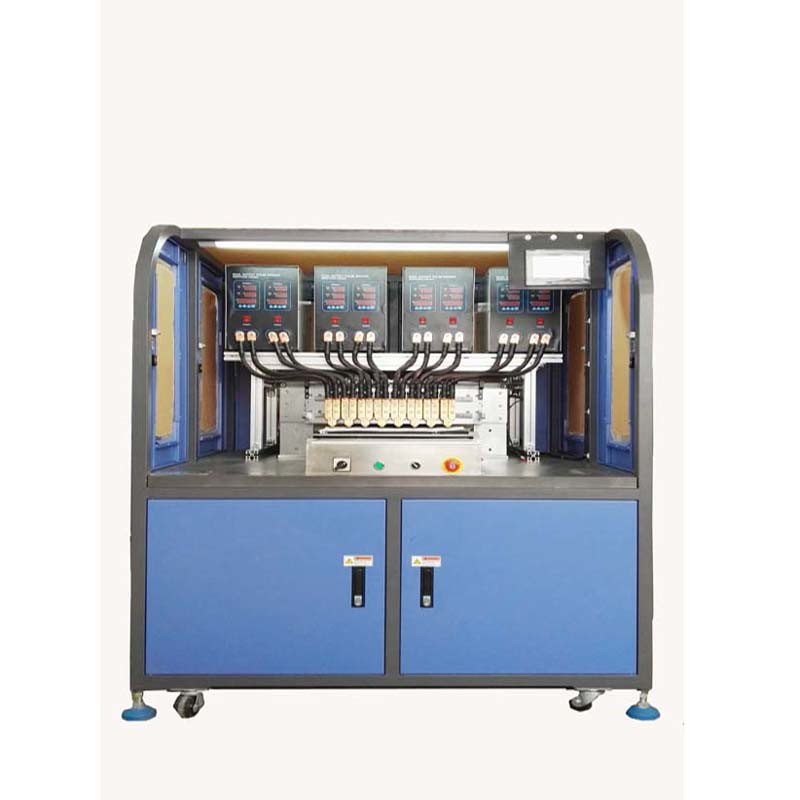

The Contactless Card Chip Bonding Machine YCB-18 is designed for automatic, high-speed bonding or welding of contactless card antennas and chips together.

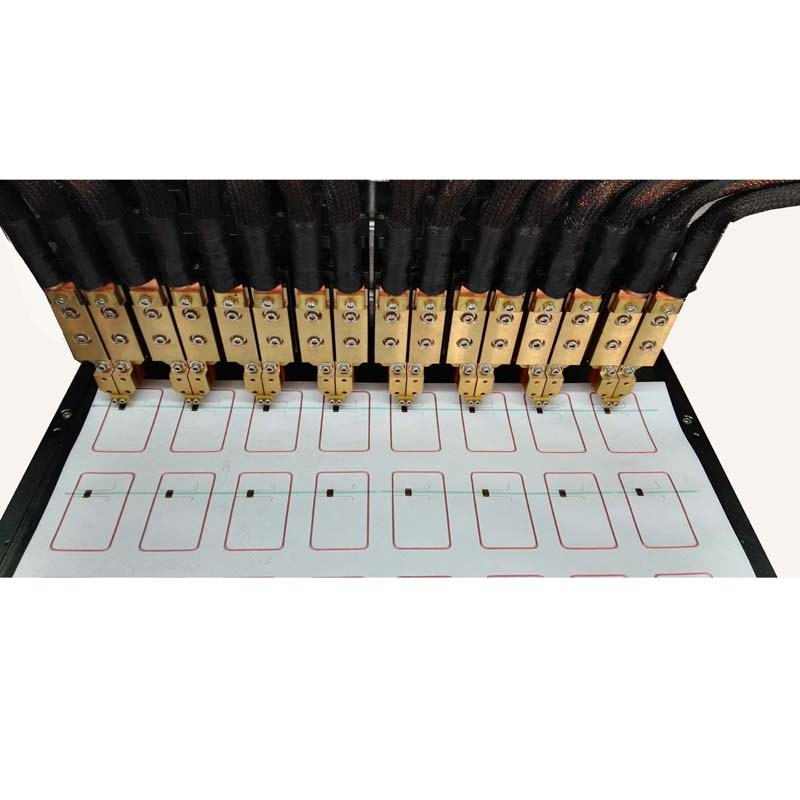

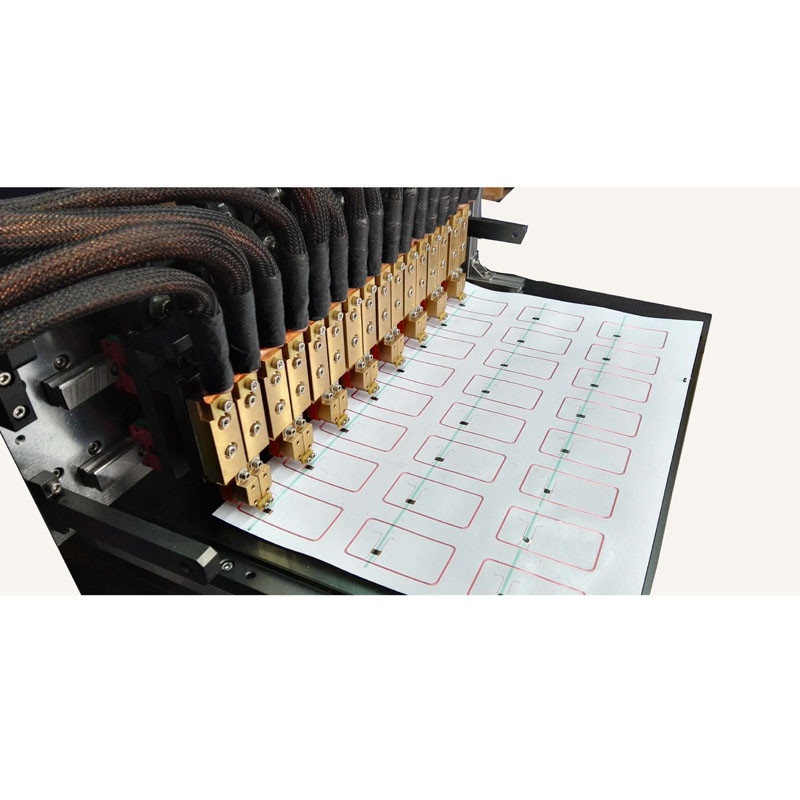

Bonding or welding the antenna leads onto the chip edges automatically.

• Reliable components including Mitsubishi PLC, touch screen, and servo system
• German REXROTH lead screw for precise motion (0.0125mm precision)
• Dual-pulse high-frequency inverting welding system for fast, quality bonding
• Flexible selection between instant current or voltage output
• High-speed operation with excellent bonding quality

1. Speed: 7000-8000 units per hour
2. Bonding head number: 8 for 3×8 or 4×8 layout
3. Motion precision: 0.0125mm
4. Mechanical adjustment: 0.01mm
5. Compressed air: 6 kg/cm²
6. Air consumption: 80 L/min
7. Power: 18KW
8. Power supply: AC220V 50/60HZ 100A
9. Weight: 1000 KG
10. Dimension: L1300×W900×H1700mm

This machine is essential for RFID card Inlay or Prelam sheet production lines, also known as:

• RFID Card INLAY Sheet Chip Antenna Bonding/Welding Machine
• Automatic Chip Wire Bonding Machine
• Automatic RFID Card Chip Welder YCB-18
