PLC Control Contactless Card Inlay Production Line Automatic Glue Tape Applicator Pastor

Basic Information

Place of Origin:	China
Brand Name:	YL
Model Number:	YGA-2

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	20-25days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	1 set per 20 days

Get Best Price

Chat Now

Detail Information

Power Supply:	AC 220V 50/60 HZ	Total Power:	1.0 KW
Air Source:	6kg/cm2 (dry)	Dimension:	L950xW600xH400 Mm
Control Method:	PLC	Sheet Layout:	38, 48, Etc
Highlight:	Contactless Card Inlay Production Line Automatic , PLC Control Contactless Card Inlay Production Line

Product Description

PLC Control Contactless Card Inlay Production Line Automatic Glue Tape Applicator Pastor

Product Specifications

Attribute	Value
Power supply	AC 220V 50/60 HZ
Total power	1.0 KW
Air source	6kg/cm2 (dry)
Dimension	L950xW600xH400 mm
Control method	PLC
Sheet layout	38, 48, etc

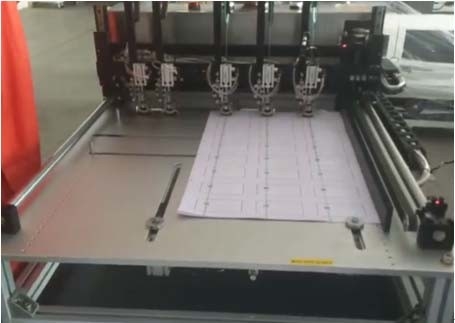

Automatic Glue Tape Applicator YGA-2

Designed for precisely applying glue tapes onto punched INLAY middle sheets during contactless card production. The applied glue tapes temporarily secure chips during the INLAY sheet manufacturing process.

Technical Specifications

Power supply	AC 220V 50/60 HZ
Total power	1.0 KW
Air source	6kg/cm2 (dry)
Control method	PLC
Sheet layout	38, 48, etc
Weight	Approx 60 Kg
Dimension	L950xW600xH400 mm
Speed	300-400 sheets/h

Key Features

Also known as automatic glue tape pastor, INLAY sheet glue tape pasting machine, or RFID card INLAY/prelam sheet production machine.

Applications

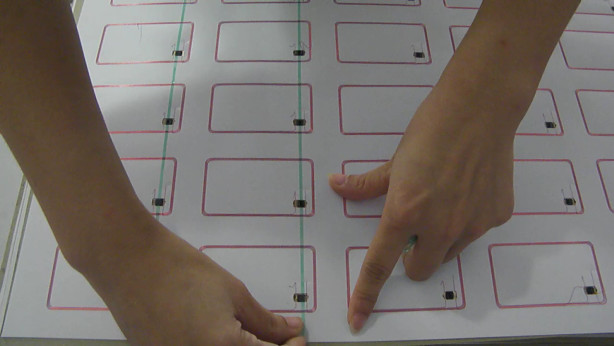

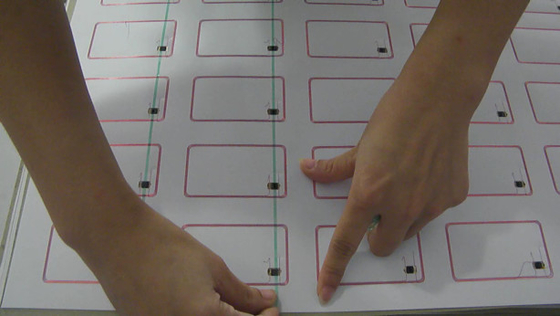

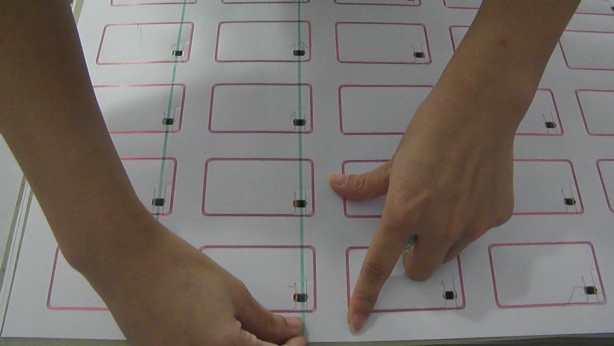

Capable of applying 3 glue tapes simultaneously for sheet layouts of 3*8 configuration. Automatically applies green glue tape onto chip holes in INLAY middle sheets to temporarily secure chips.

Configuration Details

Machine model needed: Full Auto Inlay Sheet Glue Tape Pasting Machine YGA-2
Machine quantity needed: 1 set
Machine Speed: 600+ sheets per hour
